DCF4115AW 03 – DOOR/DRAWER

DCF4115AW 03 – DOOR/DRAWER

Written by

in

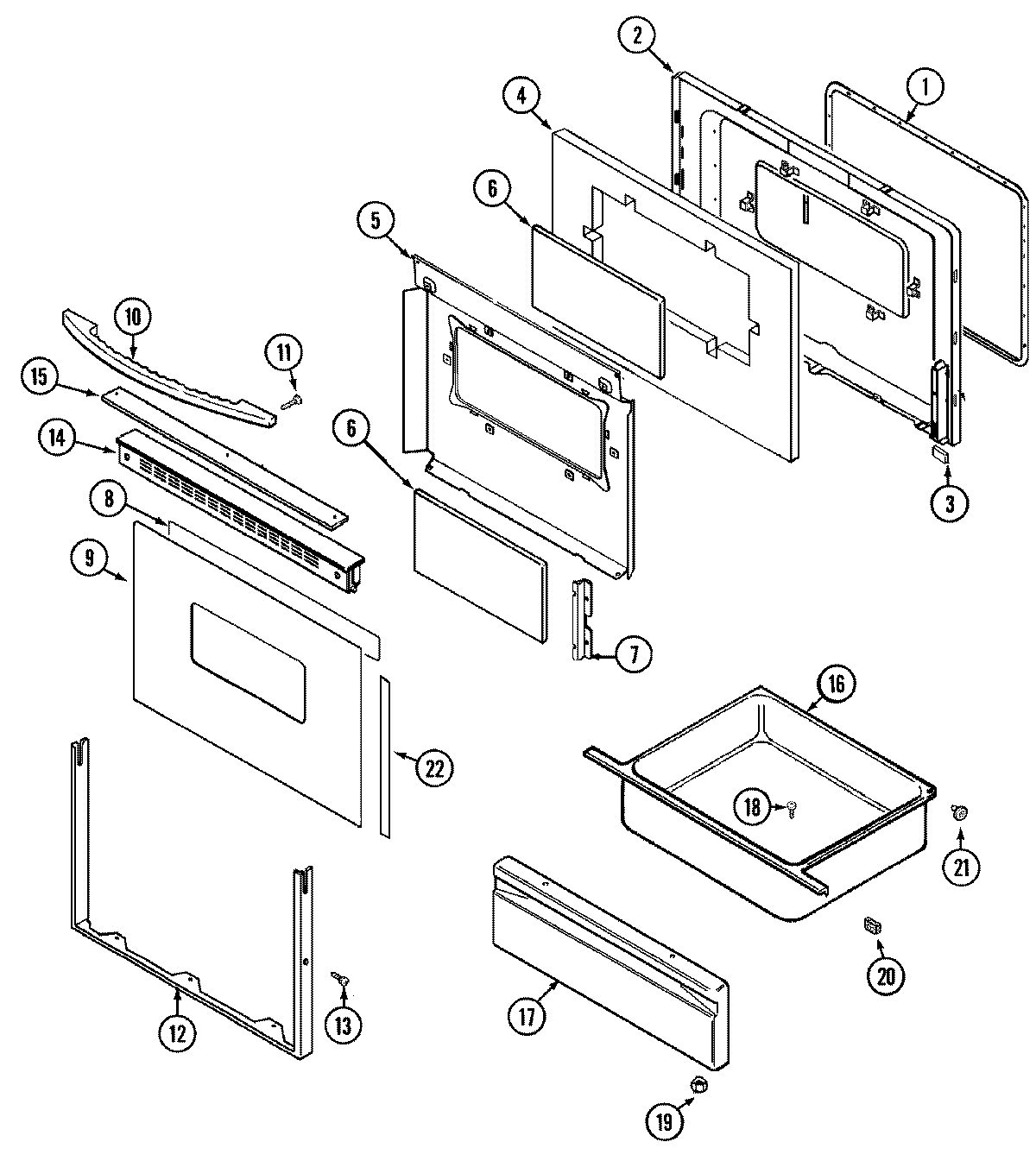

DCF4115AW 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2LINING, OVEN DOOR
2NUT, SNAP (ROUND-BLK)
2NUT, SNAP (ROUND-WHT)
2MAY 74003643
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74006874
10MAY 74006668
11WP74006515 Whirlpool Washer Screw
12MAY 7706P310-60
14MAY 74003864
14SCREW
15MAY 7728P094-60
15WP98008544 Whirlpool Screw Assembly
16MAY 71003042
17MAY 74003399
19WPW10131078 Whirlpool Nut Assembly
20WP74005546 Whirlpool RU Spacer
21WP74004078 Whirlpool Door Roller
21WP488130 Whirlpool Air Conditioner Nut
21SHAFT, STORAGE DRAWER ROLLER
22MAY 74003660
