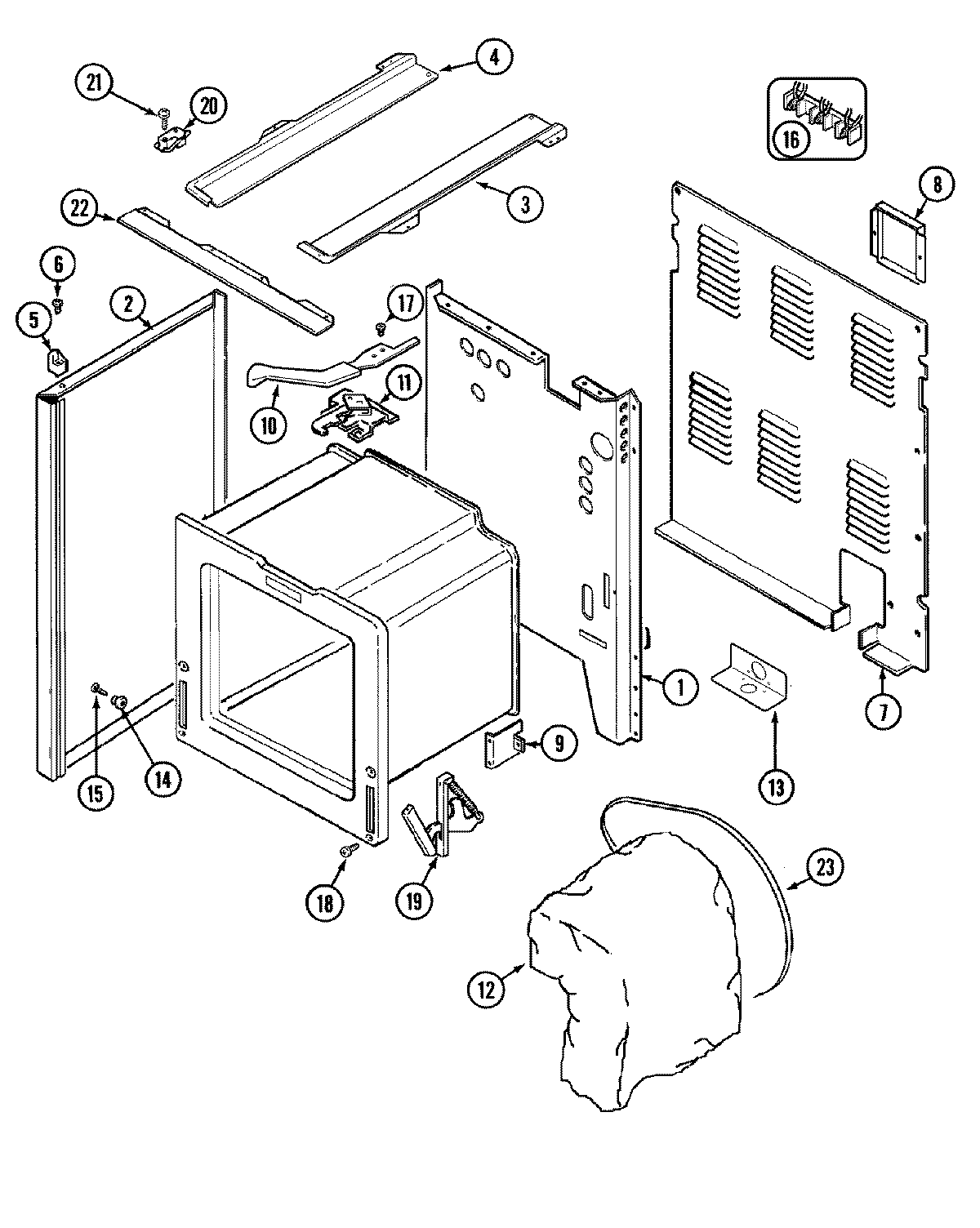

DCF4205BK 01 – BODY

DCF4205BK 01 – BODY

Written by

in

DCF4205BK 01 – BODY

Products

PositionProduct
1MAY 74006322
2TAPE, FOIL (3“ WIDE)
2MAY 74004965
3MAY 74003378
4MAY 74003379
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6MAY 7101P313-60
7MAY 74003241
8MAY 4005F427-51
9SUPPORT,OVEN REAR
10MAY 74003005
11MAY 74001084
11MAY 74006342
1174003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11MAY 74006340
12MAY 74005771
12WP74010942 Whirlpool Insulation
13W10190166 Whirlpool Service Bracket
13SCREW
14MAY 8004P024-60
15W11693756 Whirlpool Screw Assembly
15MAY 74001449
16WP7103P027-60 Whirlpool Nut
16SCREW (10ABX1.0-ZN)
16WPW10245259 Whirlpool Terminal Block
17SCREW, LEVER
18SCREW (10-24X5/16-NI)
19WP74011140 Whirlpool Oven Hinge
20MAY 74004031
20MAY 74003383
21MAY 7101P330-60
22MAY 74003384
23MAY 74003385
