DCF4205BT 04 – OVEN/BASE

DCF4205BT 04 – OVEN/BASE

Written by

in

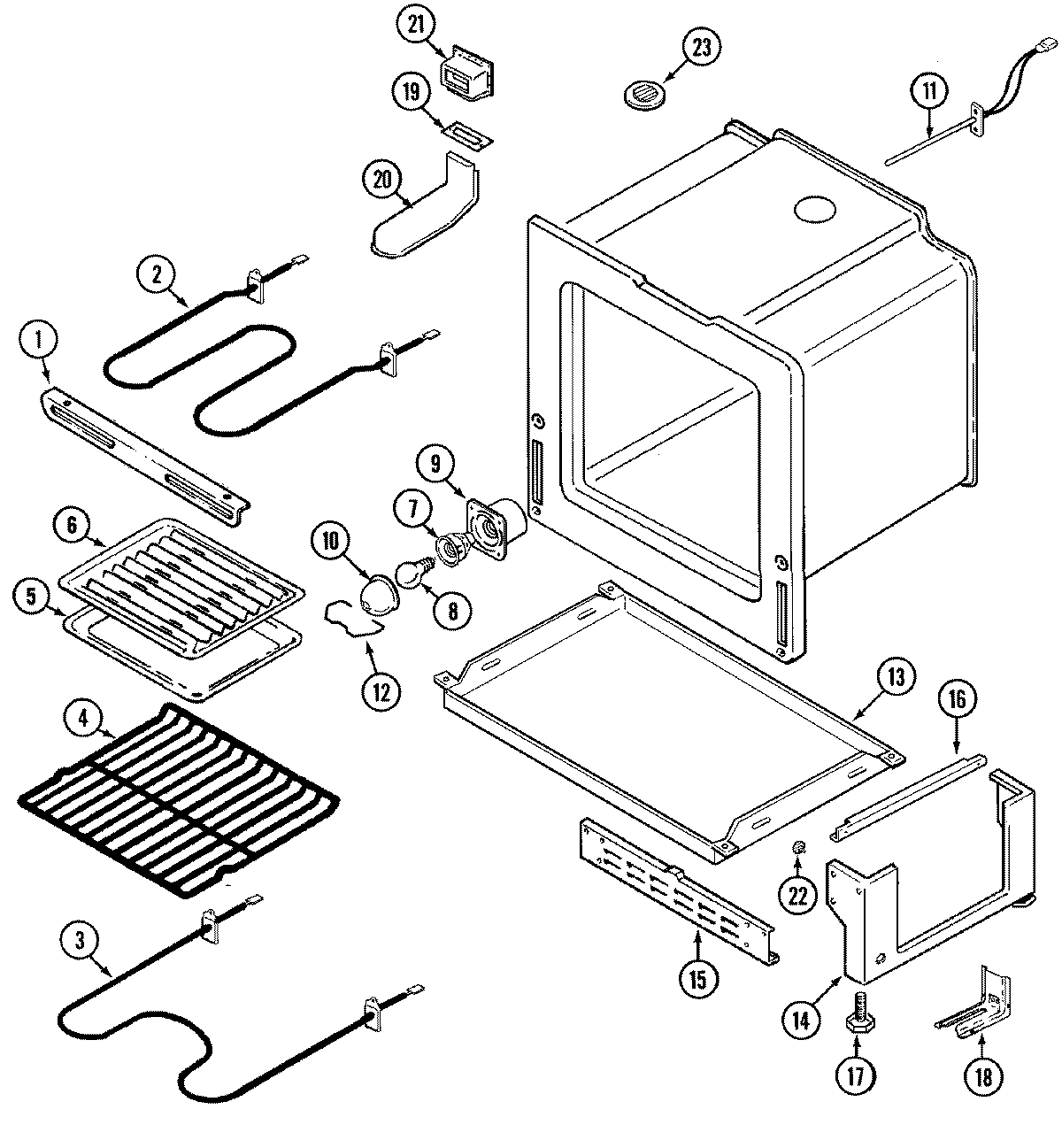

DCF4205BT 04 – OVEN/BASE

Products

PositionProduct
1SUPPORT, BROIL ELEMENT
2WPW10310249 Whirlpool Broil Element
3WP74010750 Whirlpool Oven Bake Element
4WPW10282492 Whirlpool Oven Rack
5MAY Y3401F02019
6MAY Y3413F01619
7MAY 74003387
8RANGE ONLY 40W 120V APPL BULB
9MAY 74003388
10MAY 74003389
1112001656 Whirlpool Range Oven Temperature Sensor
12MAY 74003391
13RETAINER, INSULATION (BOTTOM)
14MAY 74006325
15MAY 4020F001-80
16RUNNER, DRAWER
17W11665456 Whirlpool Range Level Foot
18WP7101P485-60 Whirlpool Anchor Tip
18WP3801F656-51 Whirlpool Range Anti-Tip Bracket
19MAY 74003285
20MAY 74003394
21SCREW
21MAY 74004534
2274005230 Whirlpool Oven Lock Nut (8-32)
22SHAFT, STORAGE DRAWER ROLLER
22WP74004078 Whirlpool Door Roller
23MAY 74003633
