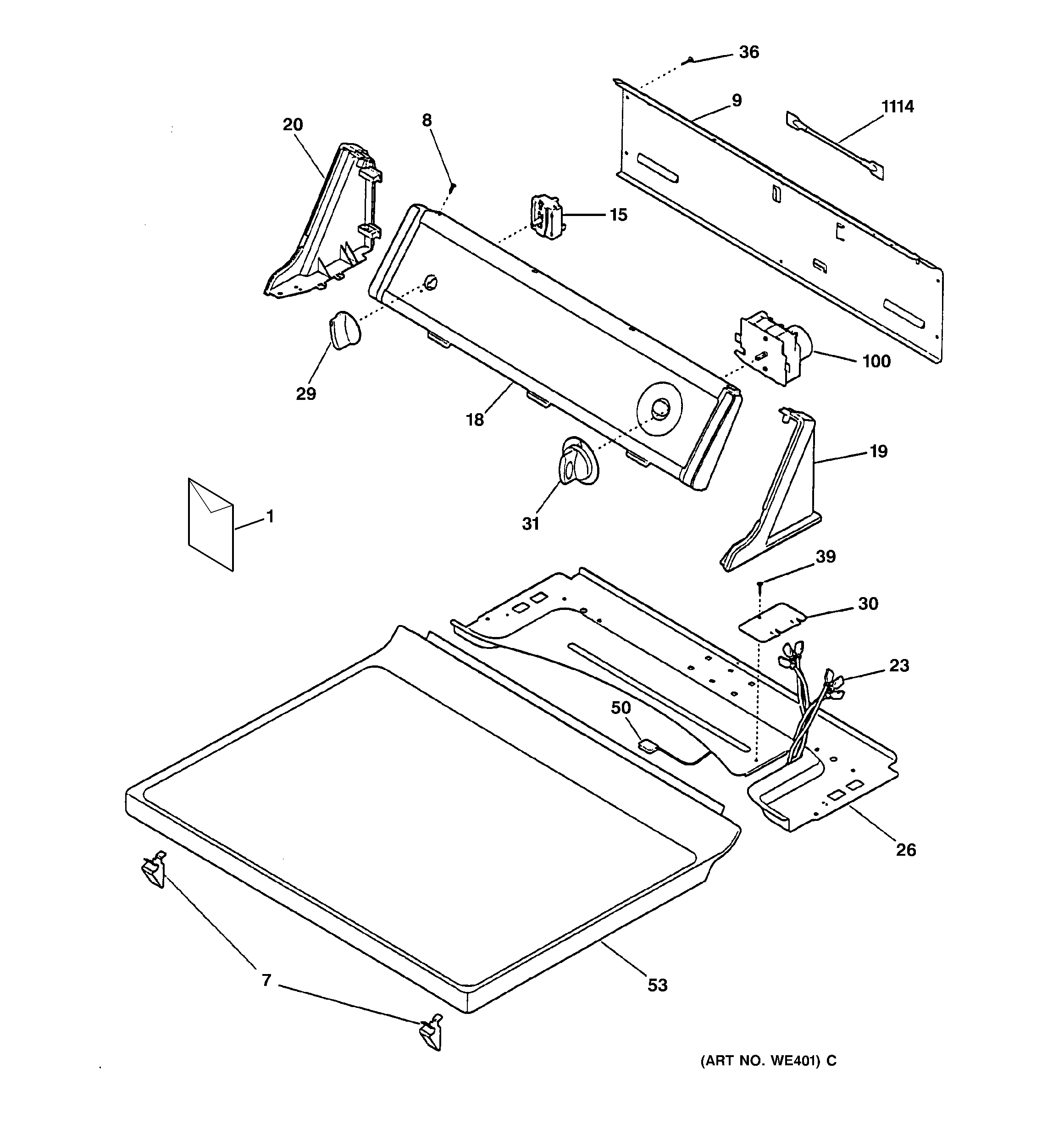

DCL333EA0WW CONTROLS & TOP PANEL

DCL333EA0WW CONTROLS & TOP PANEL

Written by

in

DCL333EA0WW CONTROLS & TOP PANEL

Products

PositionProduct
1GEN 49-9996
1GEN 31-15407
7CLIP-TOP FRONT/PANEL
8SCR 8-18 X .50 FLT HD/SN
9GEN WE20X10010
15WE4X881 GE Dryer Rotary Start Switch
18GEN WE19X10040
19GEN WE19X10020
20GEN WE19X10022
23HARNESS- MAIN
26GEN WE19X10023
29WH1X2721 GE Dryer Control Knob
30GEN WE01X10034
31WE1X1263 GE Dryer Timer Control Knob
36SCREW QUAD PH AB8-18X1/2
50GEN WE08X10006
53GEN WE20X10011
100WE04X10042 GE Timer
1114GEN WE04X0744
1114RESISTOR-POWER, 4.4K
1237INSULATOR, HEATER HSNG
