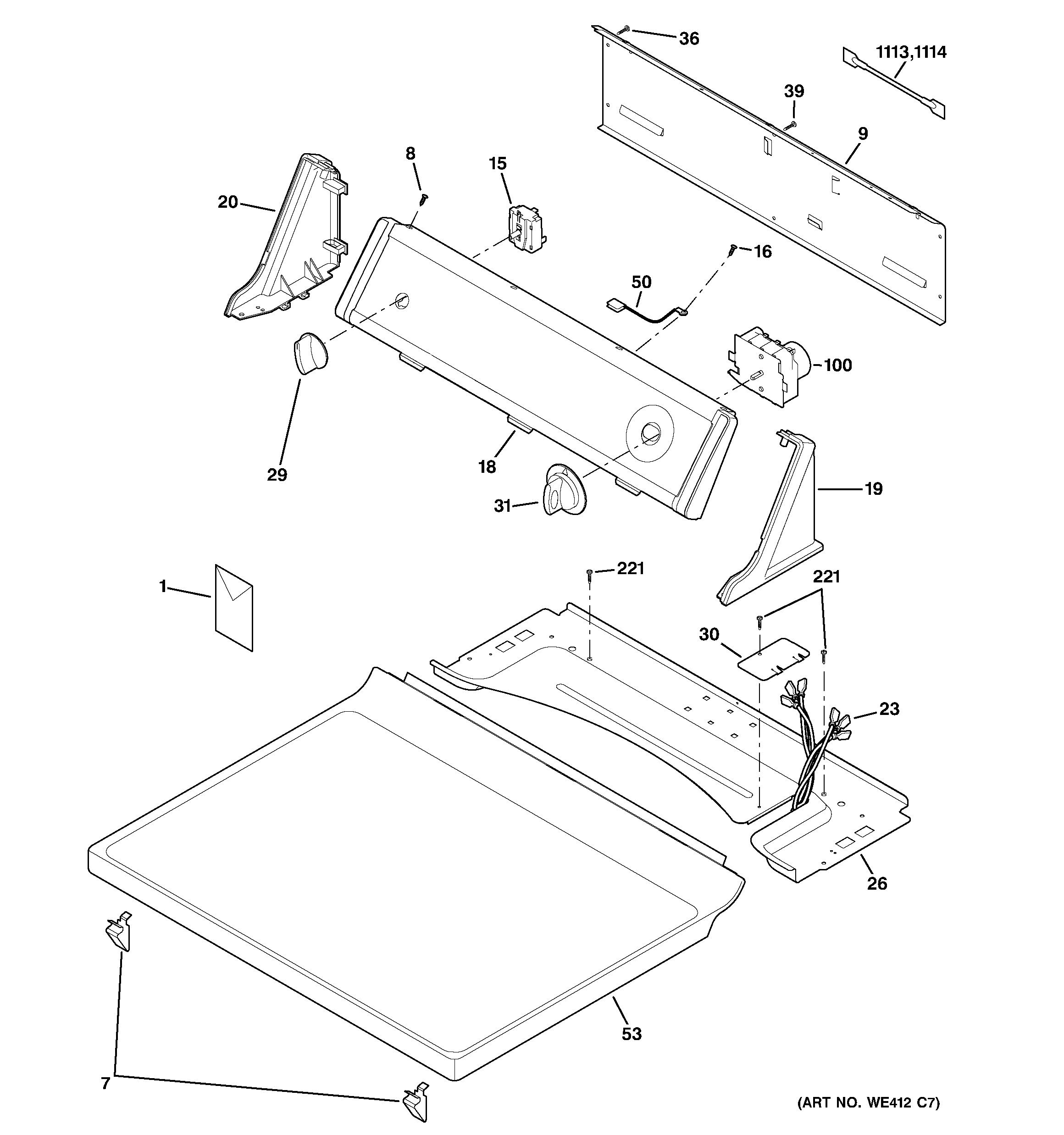

DCL333EB0WW CONTROLS & TOP PANEL

DCL333EB0WW CONTROLS & TOP PANEL

Written by

in

DCL333EB0WW CONTROLS & TOP PANEL

Products

PositionProduct
1GEN 49-90105
1GEN 31-15496
7CLIP-TOP FRONT/PANEL
8SCR 8-18 X .50 FLT HD/SN
9GEN WE20X10010
15WE4X881 GE Dryer Rotary Start Switch
16GEN WE02X10050
18GEN WE19X10062
19GEN WE19X10060
20GEN WE19X10061
23GEN WE08X10038
26GEN WE19X10035
29WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
30GEN WE01X10034
31GEN WE01X10146
36GEN WH02X10007
39SCREW QUAD PH AB8-18X1/2
50GEN WE08X10006
53GEN WE20X10048
100WE04X10042 GE Timer
221SCREW PAN HD.8-18ABX.375
1113GEN WE04X0744
1114RESISTOR-POWER, 4.4K
