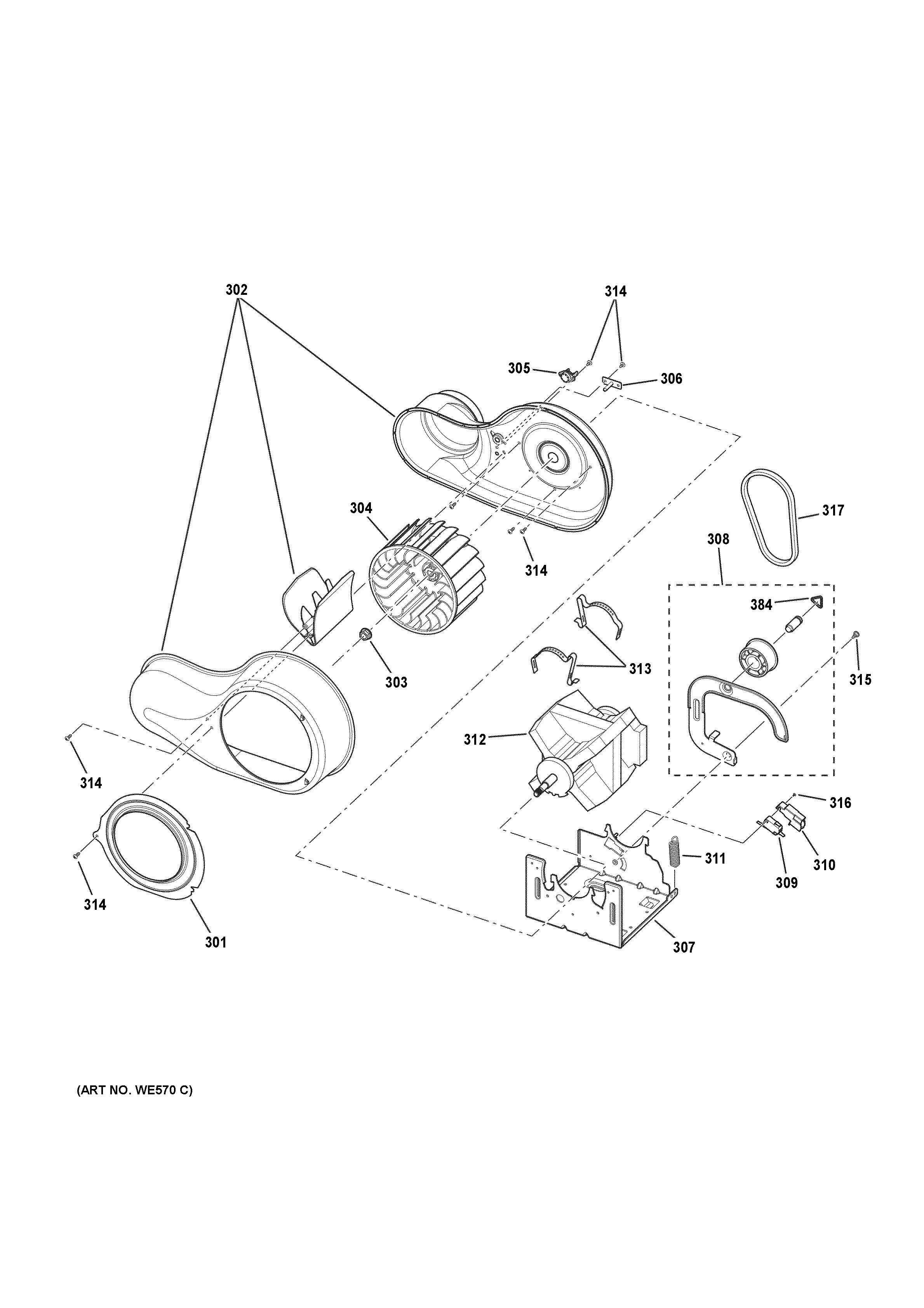

DCVH480EK1WW BLOWER & MOTOR

DCVH480EK1WW BLOWER & MOTOR

Products

PositionProduct
301WE01X10270 GE Blower Wheel Access Ring
302WE14X10088 GE Duct Cover Assembly
303WE02X10084 GE Blower Wheel Nut
304WE16X10003 GE Blower Wheel Assembly
305WE04X10152 GE Thermostat Assembly
306WE04X10153 GE Thermistor Assembly
307WE13X10040 GE Motor Plate
309WE04X28083 GE Belt Switch
310SWITCH COVER
311WE02X10085 GE Idler Spring
312WE17X10012 GE Motor Assembly
313WE13X10042 GE Motor Strap
314WE02X10086 GE Dryer Screw
315WE02X28034 GE Screw M5 x L11
316SCREW (M3 X L16)
317WE03X33898 GE Drive Belt
384WE01X28032 GE Idler Bracket Assembly
