DCVH480EK1WW FRONT PANEL & DOOR

DCVH480EK1WW FRONT PANEL & DOOR

Written by

in

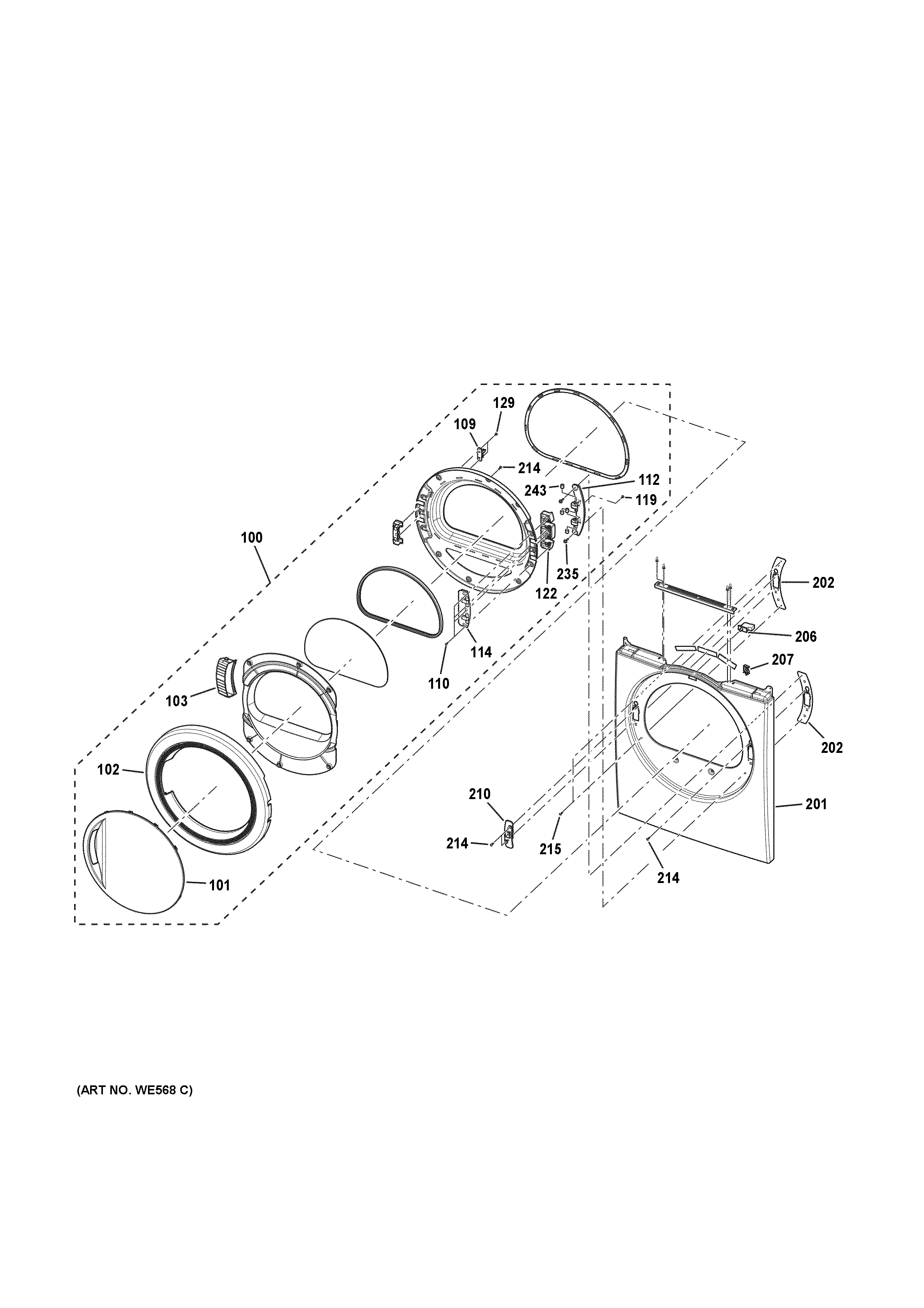

DCVH480EK1WW FRONT PANEL & DOOR

Products

PositionProduct
100WE10X10025 GE Door Assembly
101WE01X10257 GE Door Outer Window
102WE01X10258 GE Door Outer
103WE01X10259 GE Door Handle
109WE01X10260 GE Door Strike
110WR01X10463 GE Refrigerator Tapping Screw
112WE01X10261 GE Door Hinge
114WE01X10263 GE Hinge Support
119WE02X10078 GE Hinge Header Screw (M5 x L12)
122WE01X10262 GE Hinge Bearing
129WH02X10081 GE Tapping Screw
201WE20X10106 GE Front Panel Assembly
202WE13X10039 GE Hinge Bracket
206WE04X10150 GE Door Switch
207WIRE TIE
210CATCH ASSEMBLY
214WH02X10294 GE Screw M4 L12
215WE02X10089 GE Machine Screw (M5 X L12)
235WH02X10326 GE Hex Screw (M5X16)
243WH01X10480 GE Hinge Guide
