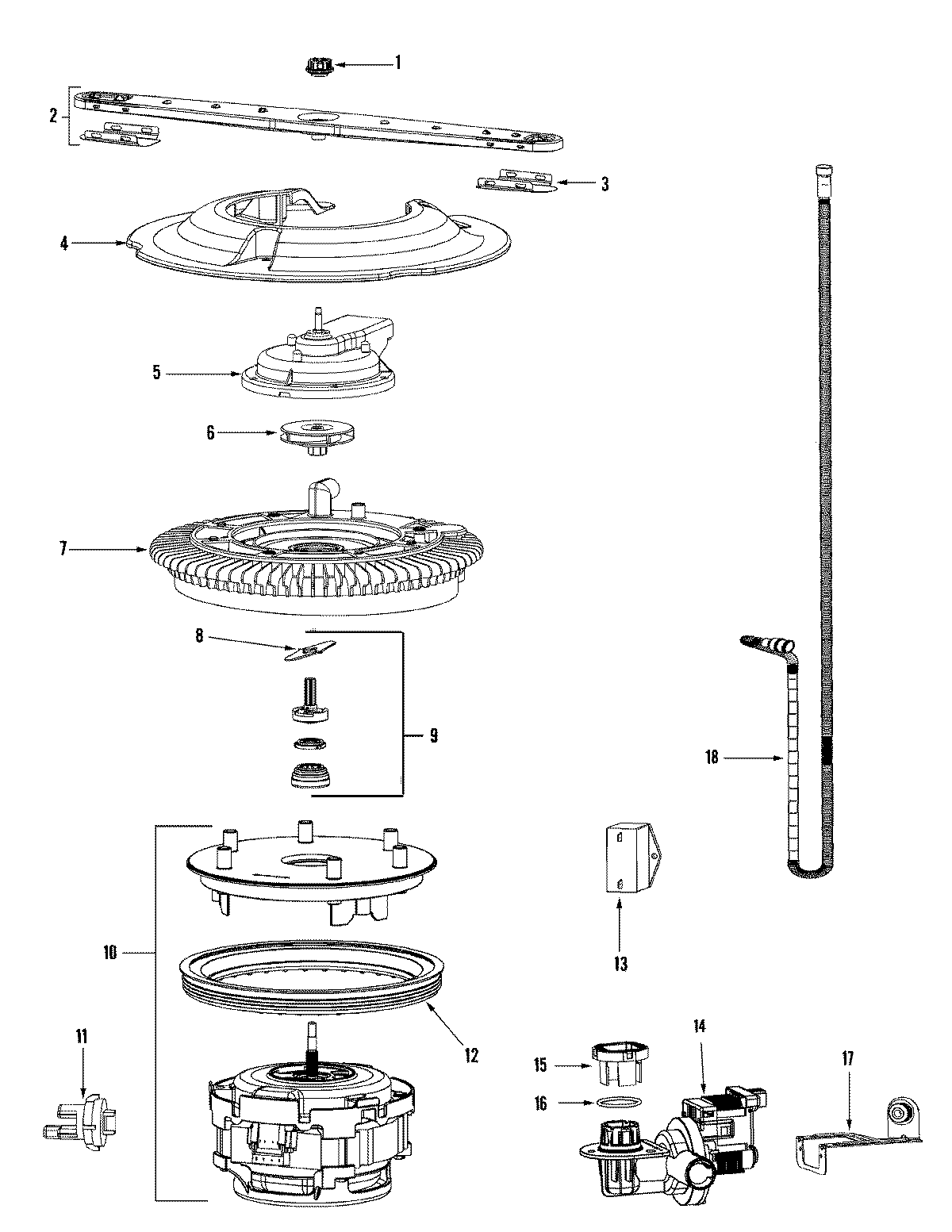

DDB1501AWW 03 – PUMP & MOTOR

Products

Position	Product
1	WP99002654 Whirlpool Nut
2	WP6-917642 Whirlpool Dishwasher Wash Arm
3	MAY 99002653
4	WPW10166788 Whirlpool Dishwasher Filter Frame
4	MAY 99002666
5	DISCHARGE HOUSING ASSY (UPR)
5	SCREW, DISCHARGE HOUSING
6	MAY 99002660
6	WP99002659 Whirlpool Impeller
7	WPW10192799 Whirlpool Dishwasher Accumulator
7	SCREW, STAINLESS PAN HEAD
8	WP99002658 Whirlpool Dishwasher Chopper
8	MAY 99003427
9	MAY 99003341
10	MAY 99002980
10	WASH MOTOR ASSY SEAL NOT INCL
11	WPW10120019 Whirlpool Dishwasher Sensor
11	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11	SCREW, No.8X1/2 HEX WASHER HEAD
11	MAY 99003613
12	GASKET, PUMP
13	CAPACITOR, MOTOR
13	SCREW 10-32X.400 (T-20 HEAD)
14	MAY 99002750
14	MAY 99002815
15	MAY 99003309
16	MAY 99002857
17	MAY 99002752
17	MAY 99002657
18	WP99002656 Whirlpool Dishwasher Drain Clamp
18	WP99002652 Whirlpool Drain Hose
