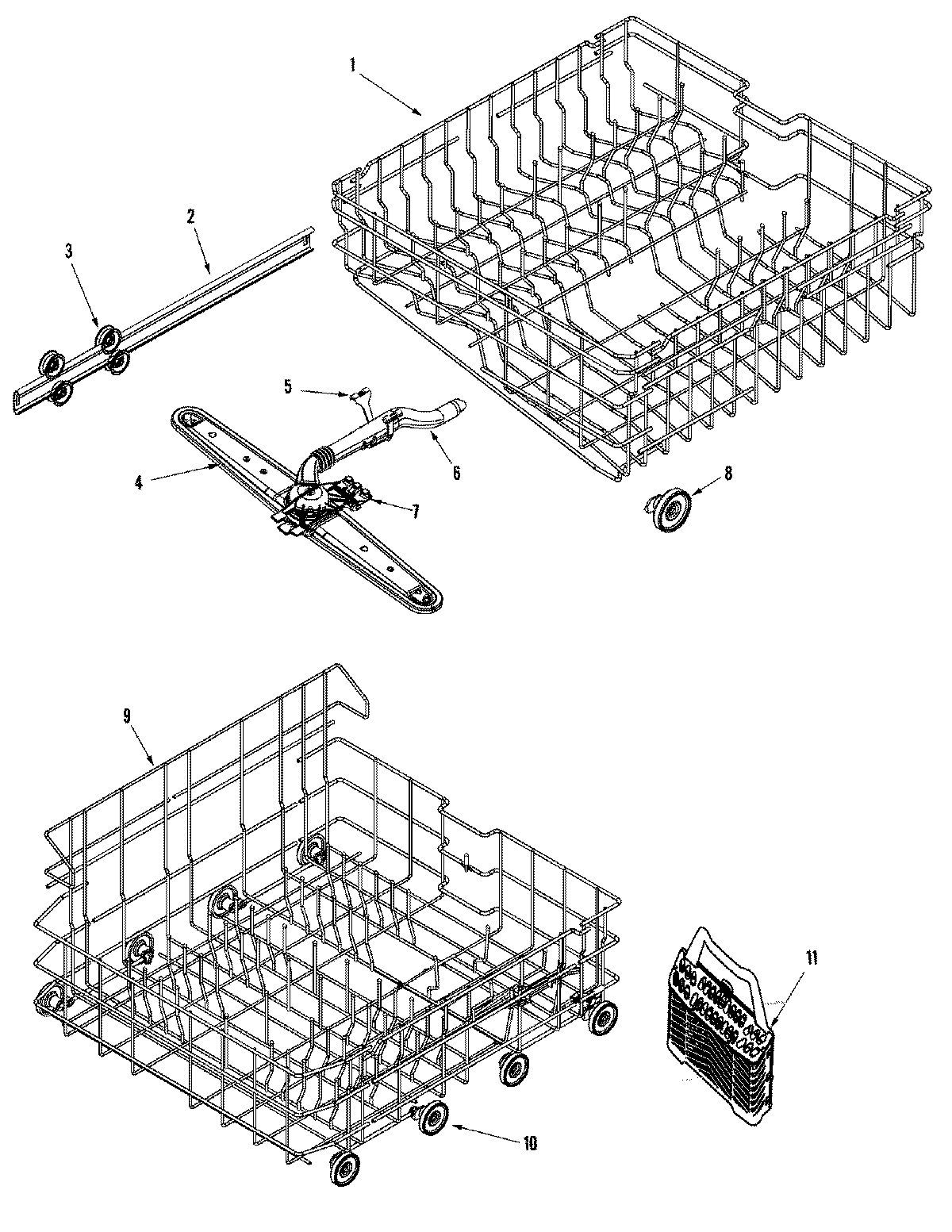

DDB1501AWW 05 – TRACK & RACK ASSEMBLY

DDB1501AWW 05 – TRACK & RACK ASSEMBLY

Written by

in

DDB1501AWW 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99002993
2WPW10261227 Whirlpool Dishwasher Stop Assembly
2TRACK, RACK
3WP99002947 Whirlpool Tub Wheel
3WPY912798 Whirlpool Dishwasher Tub Washer Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
4SCREW, TRUSS HEAD (10-18X.75)
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
8WP99002781 Whirlpool Dishwasher Wheel
9MAY 99002017
9MAY 99003469
10WP99002780 Whirlpool Lower Wheel Assembly
11MAY 99003429
