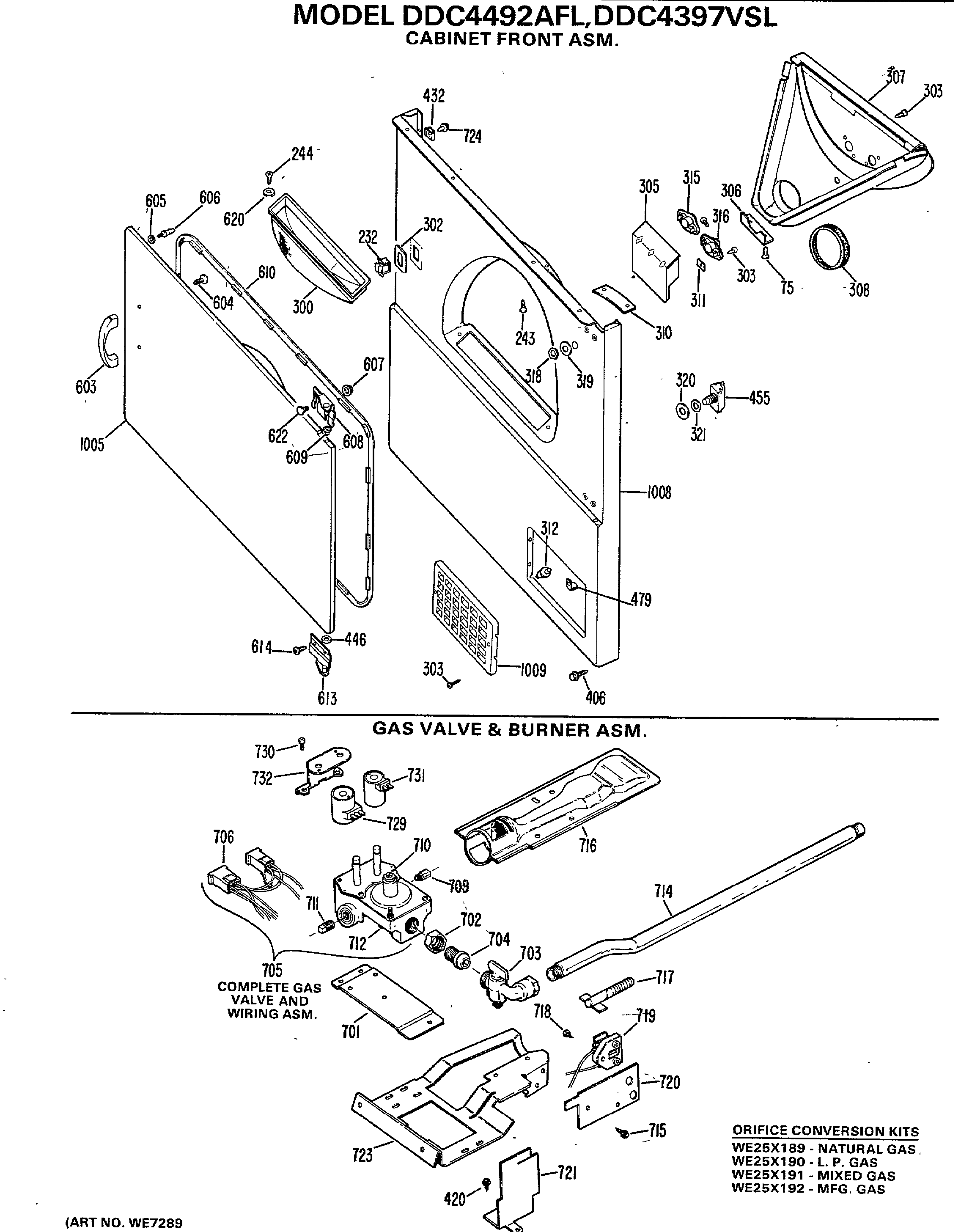

DDC4397VSL CABINET FRONT ASM.

Products

Position	Product
75	WH2X930 GE Screw
232	WE1M1011 GE Washer Dryer Door Latch
243	GEN WZ05X0155
244	GEN WE02X0235
300	GEN WE18X0043
303	GEN WE02X0270
305	GEN WE01X0944
306	GEN WE01X0409
307	GEN WE14X0144
308	WE9X38 GE Dryer Felt Seal Assembly
310	GEN WE01X0446
311	GEN WE02X0192
312	GEN WE02X0191
315	GEN WE04X0598
316	GEN WE04X0547
318	GEN WE02X0125
319	GEN WE02X0200
320	GEN WE01X0667
321	GEN WE01X0932
420	GEN WH02X0893
432	GEN WL02X0071
446	GEN WE02X0279
455	GEN WL11X0056
603	GEN WE01X0257
604	GEN WE02X0227
605	GEN WZ10X0016
606	GEN WE01X1042
607	NUT SHEET METAL K
608	GEN WE01X0345
609	GEN WE01X0404
610	GEN WE09X0028
613	GEN WE01X0344
614	GEN WZ04X0257
620	GEN WE02X0252
622	GEN WE02X0177
701	GEN WE13X0166
702	GEN WE02X0319
704	GEN WE02X0320
705	WE14X215 GE Gas Valve
709	ORIFICE (69-2043)
710	WE1X1076 GE Leak Limiter
711	GEN 1/8-27 NPT
714	PIPE LUG ASM
715	GEN WD02X5063
716	WE14M104 GE Burner Assembly
717	WE4X444 GE Round Igniter
718	GEN WZ04X0220
719	GEN WE01X1075
720	BRACKET IGNITER
721	GEN WE13X0118
723	BRACKET VALVE
724	SCREW 10-16 X 1/2" HEX
729	WE4X692 GE Gas Valve Solenoid
730	WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731	WE4X693 GE Main Coil
732	GEN WE13X0169
1005	DOOR ASM WH
1005	DOOR ASM AD
1005	DOOR ASM HA
1008	CABINET FRONT ASM AD
1008	CABINET FRONT ASM WH
1008	CABINET FRONT ASM HA
1009	GEN WE10X0205
1009	GEN WE10X0254
1009	GEN WE10X0256
