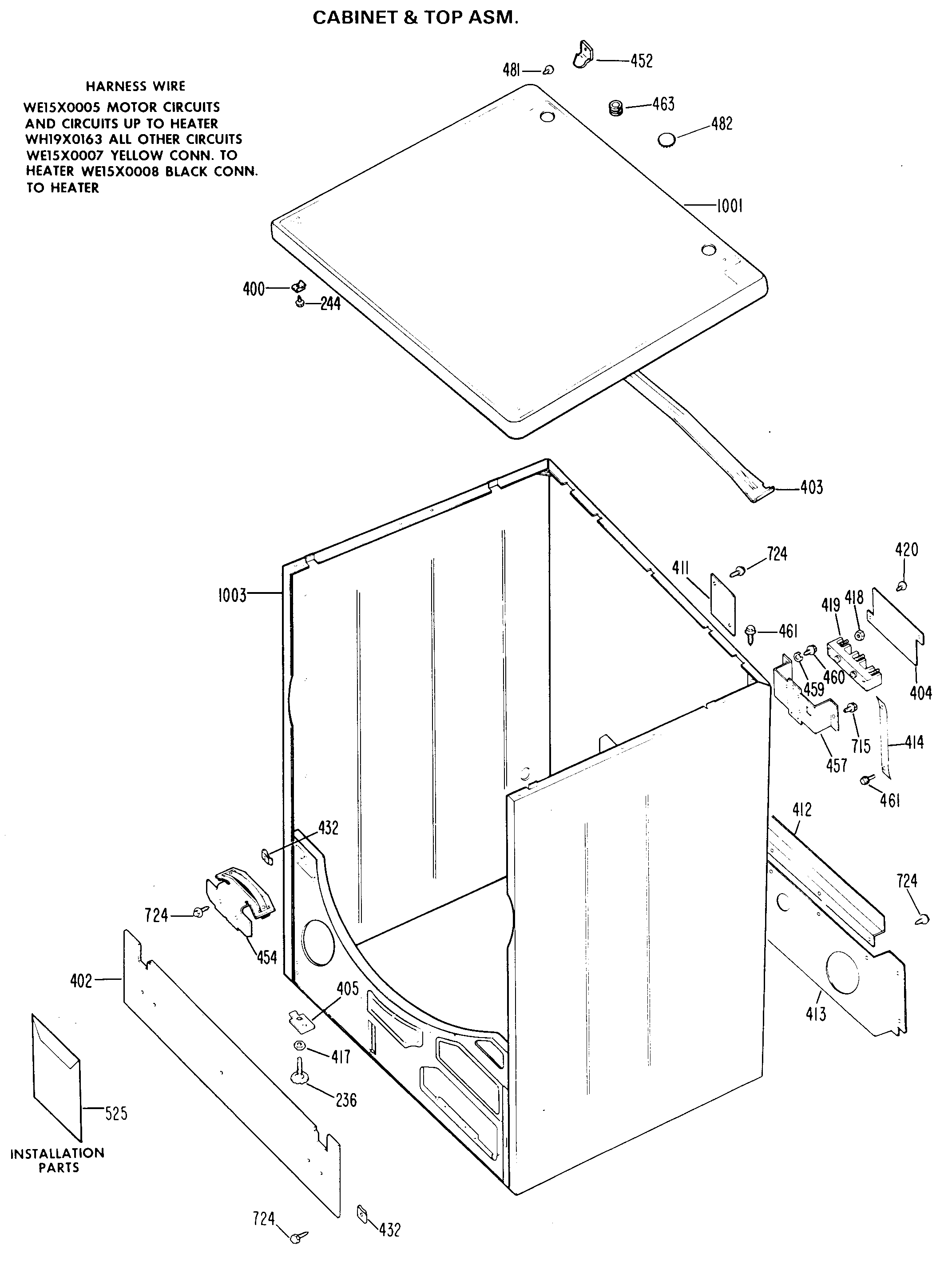

DDC4400AEL CABINET & TOP ASM.

DDC4400AEL CABINET & TOP ASM.

Written by

in

DDC4400AEL CABINET & TOP ASM.

Products

Position	Product
236	WE1M642 GE Washer Leveling Leg
244	GEN WE02X0235
400	GEN WE02X0134
402	GEN WE20X0347
403	GEN WE14X0037
404	GEN WE01X0425
405	GEN WE01X0468
411	KNOCKOUT CABINET WRAPPER
412	BRACKET RECESS
413	BOX ASM RECESS
414	GEN WE01X0339
417	GEN WZ07X0038
418	GEN WZ07X0031
419	GEN WE04X0168
420	GEN WH02X0893
432	GEN WL02X0071
452	BRACKET HINGE
454	GEN WE25X0060
457	GEN WE13X0162
459	WASHER CUP
460	GEN WZ04X0264
461	WZ5X158D GE Screw Package of 12
463	SLEEVE SPILT
525	PK PACK ASM INSTALLATION
715	GEN WD02X5063
724	SCREW 10-16 X 1/2" HEX
1001	WELD ASM-COVER AD
1001	WELD ASM-COVER WH
1001	WELD ASM-COVER HA
1003	GEN WE20X0672
1003	GEN WE20X0671
1003	GEN WE20X0670
