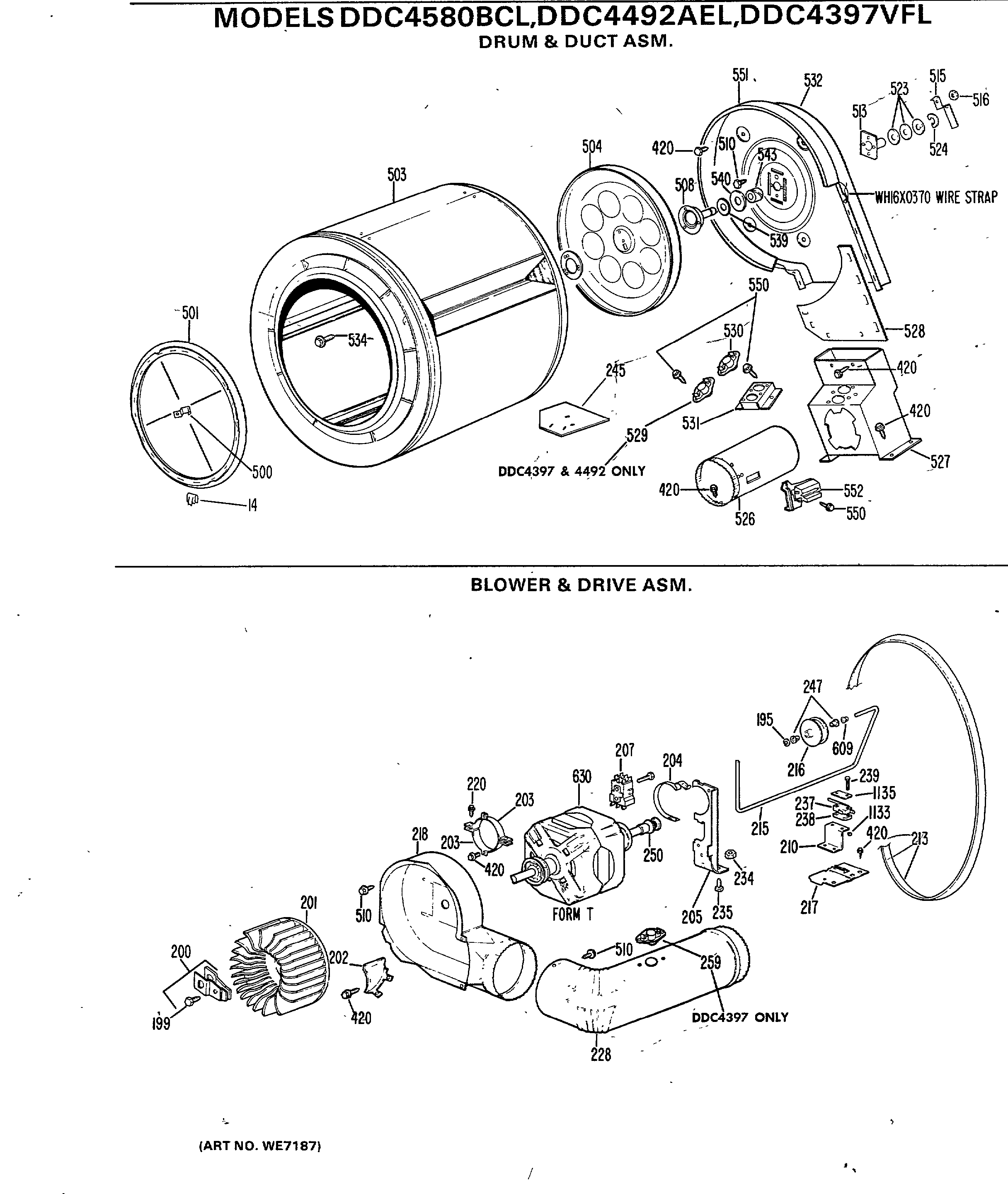

DDC4492AEL DRUM & DUCT ASM.

DDC4492AEL DRUM & DUCT ASM.

Written by

in

DDC4492AEL DRUM & DUCT ASM.

Products

PositionProduct
14GEN WE01X0762
195GEN WH02X0885
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
202GEN WE01X0689
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205GEN WE13X0161
207SWITCH START (FORM T)
210GEN WE13X0160
213WE12X10014 GE Washer Drive Belt
215GEN WE03X0062
217GEN WE13X0159
218GEN WE14X0134
220GEN WE02X0275
228GEN WE14X0139
234GEN WE02X0154
235GEN WE02X0194
237GEN WE04X0532
238GEN WE01X0945
239GEN WE02X0272
245GEN WE01X1055
247WE12X81 GE Dryer Idler Pulley
250GEN WE12X0041
420GEN WH02X0893
500GEN WE01X0299
501GEN WE09X0030
503GEN WE21X0049
504GEN WE14X0086
510WE2X263D GE Screw Package 12 C92
513WE1X461 GE Bearing Retainer
515WE1X1172 GE Strap Assembly
516WR01X10212 GE Refrigerator 8-32 Nut
523WASHER FLAT
524RING RETAINING
526CHAMBER COMBUSTION 6'
527GEN WE14X0083
528GEN WE14X0072
529GEN WE04X0583
530THERMOSTAT L300-40
531BRACKET-THERMO
532GEN WE14X0125
534GEN WE02X0153
539WE25M40 GE Dryer Rear Bearing Kit
540WASHER FLAT
543WE3X75 GE Dryer Rear Drum Bearing
550GEN WE02X0281
551GEN WE09X0044
551GEN WH12X0417
552WE4X448 GE Heat Detector Assembly
609GEN WE01X0404
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
1133GEN WE02X0245
1135GEN WE01X0844
