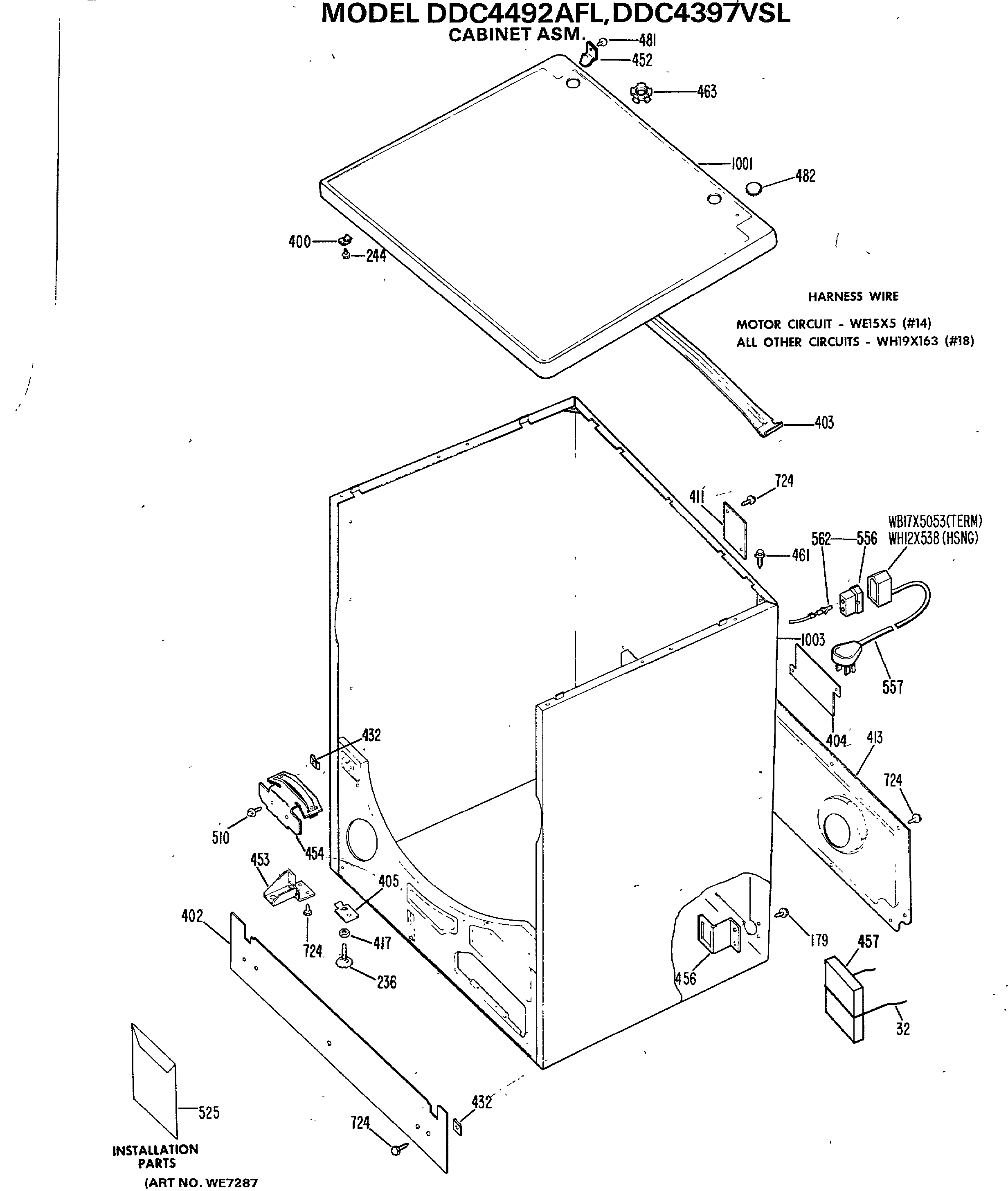

DDC4492AFL CABINET ASM.

DDC4492AFL CABINET ASM.

Written by

in

DDC4492AFL CABINET ASM.

Products

PositionProduct
236WE1M642 GE Washer Leveling Leg
244GEN WE02X0235
400GEN WE02X0134
402GEN WE20X0347
403GEN WE14X0037
404GEN WE01X0425
405GEN WE01X0468
411KNOCKOUT CABINET WRAPPER
413GEN WE14X0066
417GEN WZ07X0038
432GEN WL02X0071
452BRACKET HINGE
453GEN WE13X0080
454GEN WE25X0060
456WE1X617 GE Pipe Clamp
461WZ5X158D GE Screw Package of 12
481GEN WH02X0967
510WE2X263D GE Screw Package 12 C92
525GEN WE25X0098
556GEN WH12X0497
557CORDSET ASM-GROUNDING
562GEN WB17X5054
724SCREW 10-16 X 1/2" HEX
1001GEN WE20X0492
1003GEN WE20X0672
1003GEN WE20X0670
1003GEN WE20X0671
