DDC4500SGM GAS VALVE & BURNER ASSEMBLY

DDC4500SGM GAS VALVE & BURNER ASSEMBLY

Written by

in

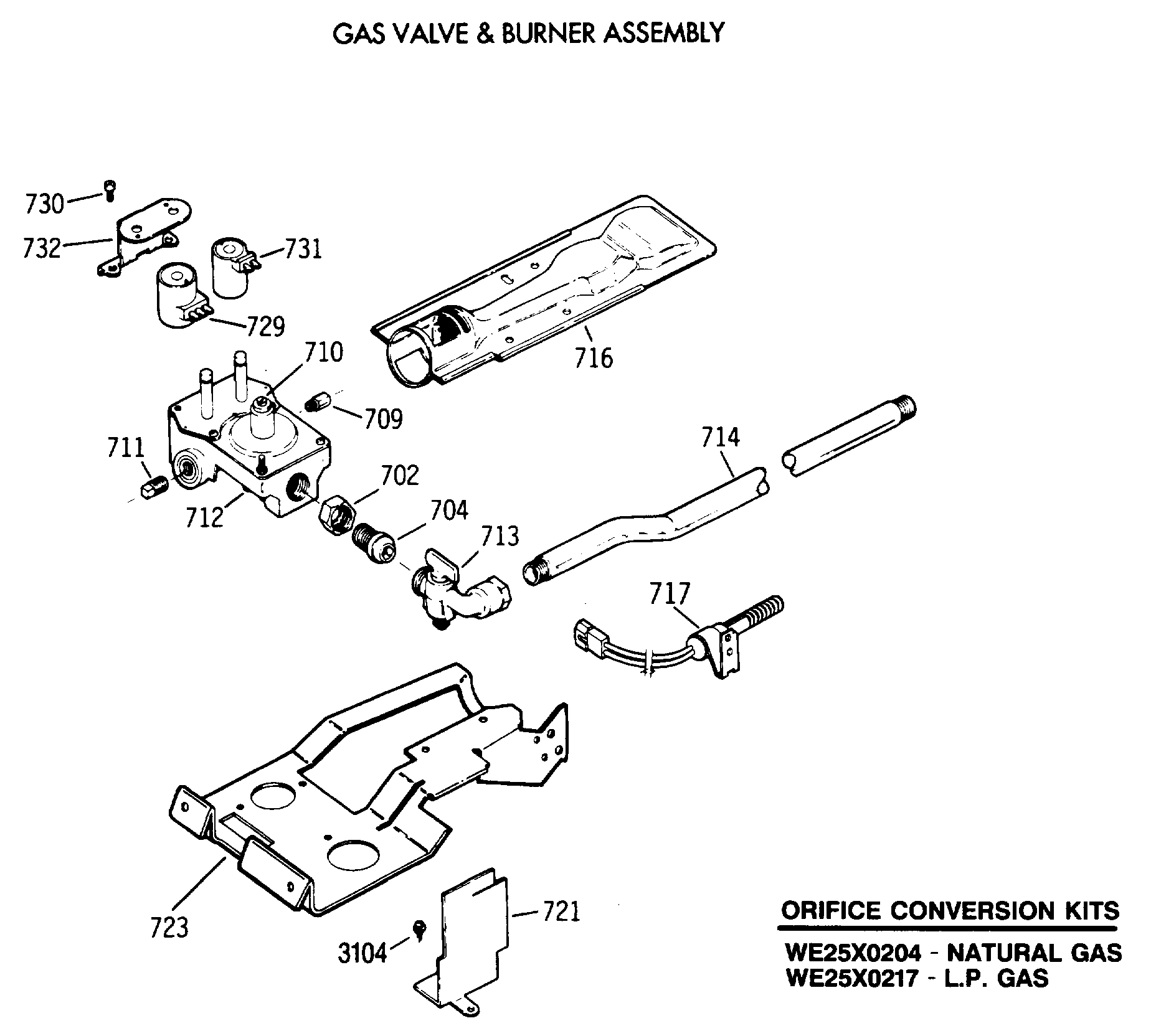

DDC4500SGM GAS VALVE & BURNER ASSEMBLY

Products

PositionProduct
702GEN WE02X0319
704GEN WE02X0320
709WE1X1148 GE Main Orifice
710WE1X1076 GE Leak Limiter
711GEN 1/8-27 NPT
712WE14X215 GE Gas Valve
713GEN WE01X1078
714PIPE LUG ASM
716WE14M104 GE Burner Assembly
717WE04X25996 GE Washer Igniter
721GEN WE13X0118
723GEN WE13X0195
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
732GEN WE13X0169
3104WE1M280 GE Screw
