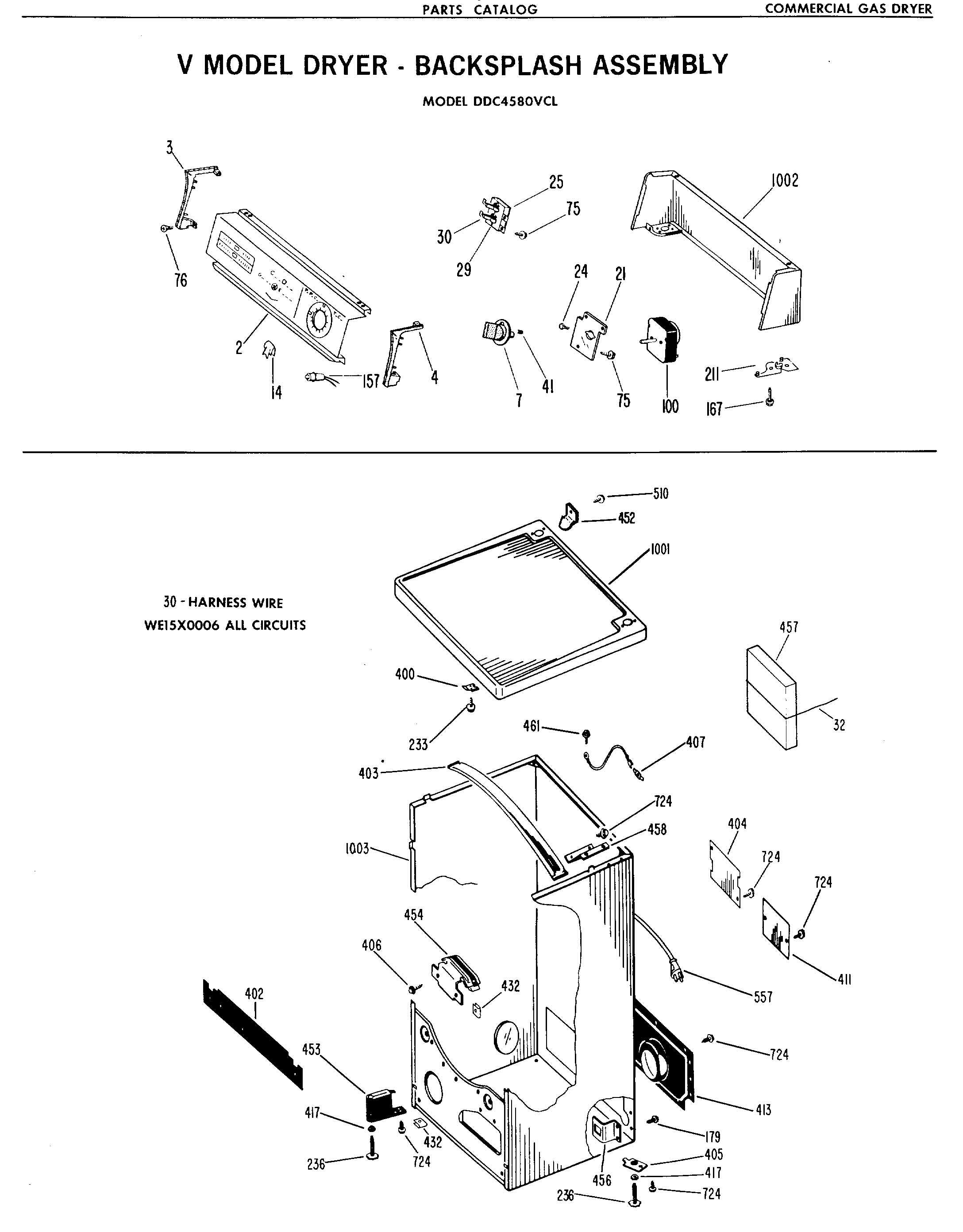

DDC4580VCL V MODEL DRYER – BACKSPLASH ASSEMBLY

DDC4580VCL V MODEL DRYER – BACKSPLASH ASSEMBLY

Written by

in

DDC4580VCL V MODEL DRYER – BACKSPLASH ASSEMBLY

Products

Position	Product
2	GEN WE19X0732
3	GEN WE19X0654
4	GEN WE19X0655
7	GEN WE01X0946
14	GEN WE01X0762
21	GEN WE13X0076
25	GEN WE04X0352
29	GEN WH01X1394
30	GEN WH01X0835
32	GEN WH16X0370
41	CLIP-KNOB
70	GEN WH02X0937
75	WH2X930 GE Screw
76	GEN WZ05X0120
100	GEN WE04X0525
157	GEN WE01X0915
167	GEN WE02X0186
211	GEN WE01X0553
236	WE1M642 GE Washer Leveling Leg
243	GEN WZ05X0155
400	GEN WE02X0134
402	GEN WE20X0347
403	GEN WE14X0037
404	GEN WE01X0425
405	GEN WE01X0468
406	GEN WZ04X0236
411	KNOCKOUT CABINET WRAPPER
413	GEN WE14X0066
417	GEN WZ07X0038
432	GEN WE02X0282
452	BRACKET HINGE
453	GEN WE13X0080
454	GEN WE25X0060
456	WE1X617 GE Pipe Clamp
457	COUNTERWEIGHT DRYER
458	BRACKET-TERMINAL BOARD
460	GEN WZ04X0264
461	WZ5X158D GE Screw Package of 12
462	BOARD ASM-TERMINAL
510	WE2X263D GE Screw Package 12 C92
557	CORDSET ASM-GROUNDING
724	SCREW 10-16 X 1/2" HEX
1001	GEN WE20X0492
1001	GEN WE20X0555
1001	GEN WE20X0558
1001	GEN WE20X0530
1001	GEN WE20X0557
1001	GEN WE20X0556
1002	BACKSPLASH WRAPPER FA
1002	GEN WH46X0212
1002	BACKSPLASH WRAPPER CF
1002	GEN WH46X0215
1002	GEN WH46X0211
1003	BASE & WRAPPER ASM AD
1003	BASE & WRAPPER ASM CF
1003	BASE & WRAPPER ASM HA
1003	BASE & WRAPPER ASM FA
1003	BASE & WRAPPER ASM WH
9999	GEN 49-9260
9999	GEN 49-9332
9999	GEN 49-9035
