DDE8109VML CABINET ASM.

DDE8109VML CABINET ASM.

Written by

in

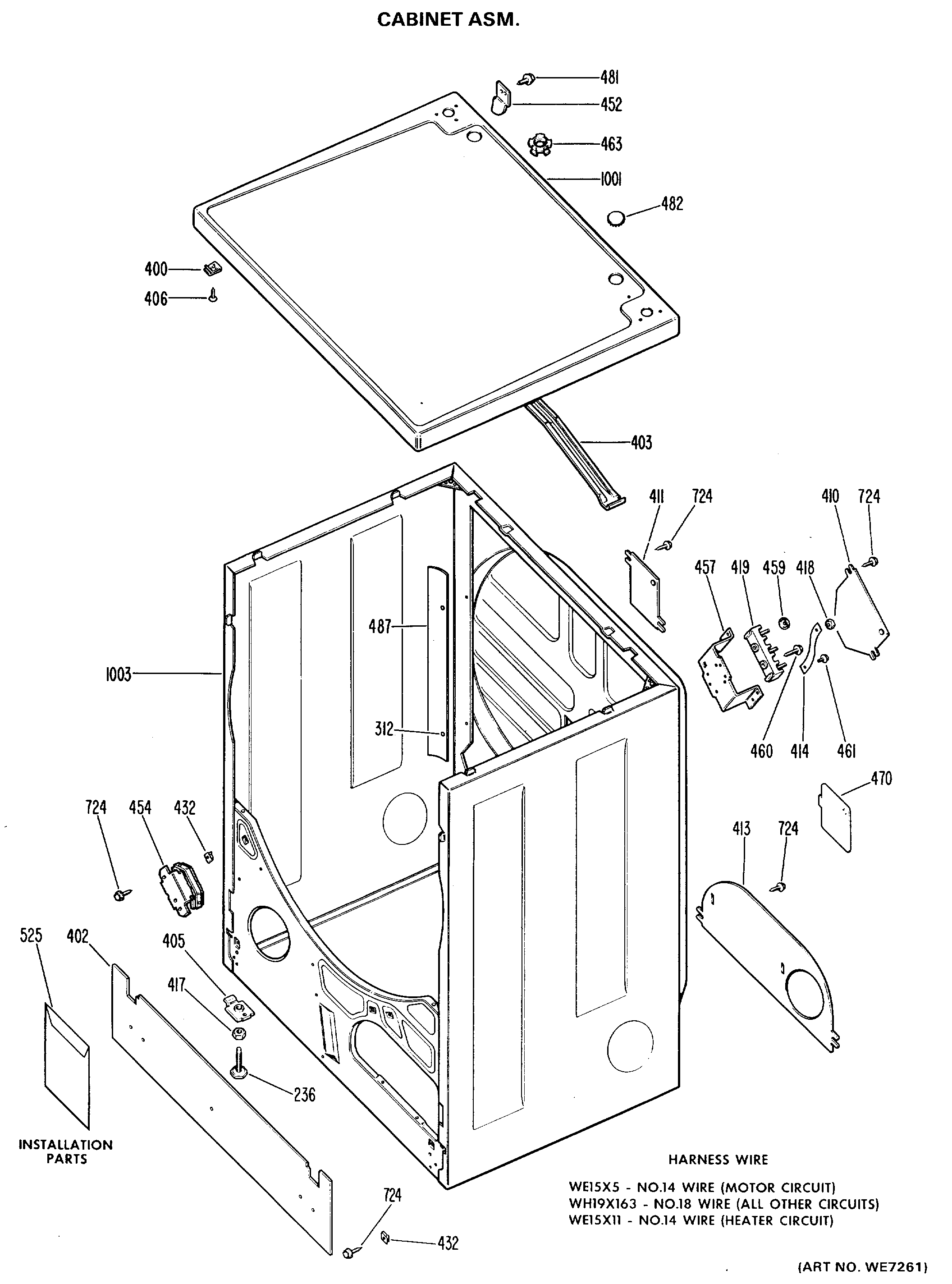

DDE8109VML CABINET ASM.

Products

Position	Product
236	WE1M642 GE Washer Leveling Leg
312	GEN WE02X0191
400	GEN WE02X0134
402	GEN WE20X0347
403	GEN WE14X0037
405	GEN WE01X0468
406	GEN WZ04X0236
410	GEN WE01X1048
411	KNOCKOUT CABINET WRAPPER
413	GEN WE14X0167
414	GEN WE01X0339
417	GEN WZ07X0038
418	GEN WZ07X0031
419	GEN WE04X0168
432	GEN WL02X0071
452	BRACKET HINGE
454	GEN WE25X0060
457	GEN WE13X0162
459	WASHER CUP
460	GEN WZ04X0264
461	WZ5X158D GE Screw Package of 12
463	SLEEVE SPILT
470	GEN WE01X1056
481	GEN WH02X0967
487	SHIELD-WIRE
525	GEN WE25X0186
724	SCREW 10-16 X 1/2" HEX
1001	WELD ASM COVER WH
1001	WELD ASM COVER AD
1001	WELD ASM COVER HA
1003	GEN WE20X0675
1003	GEN WE20X0674
1003	GEN WE20X0673
