DDE8200DAL CABINET ASSEMBLY
Written by
in

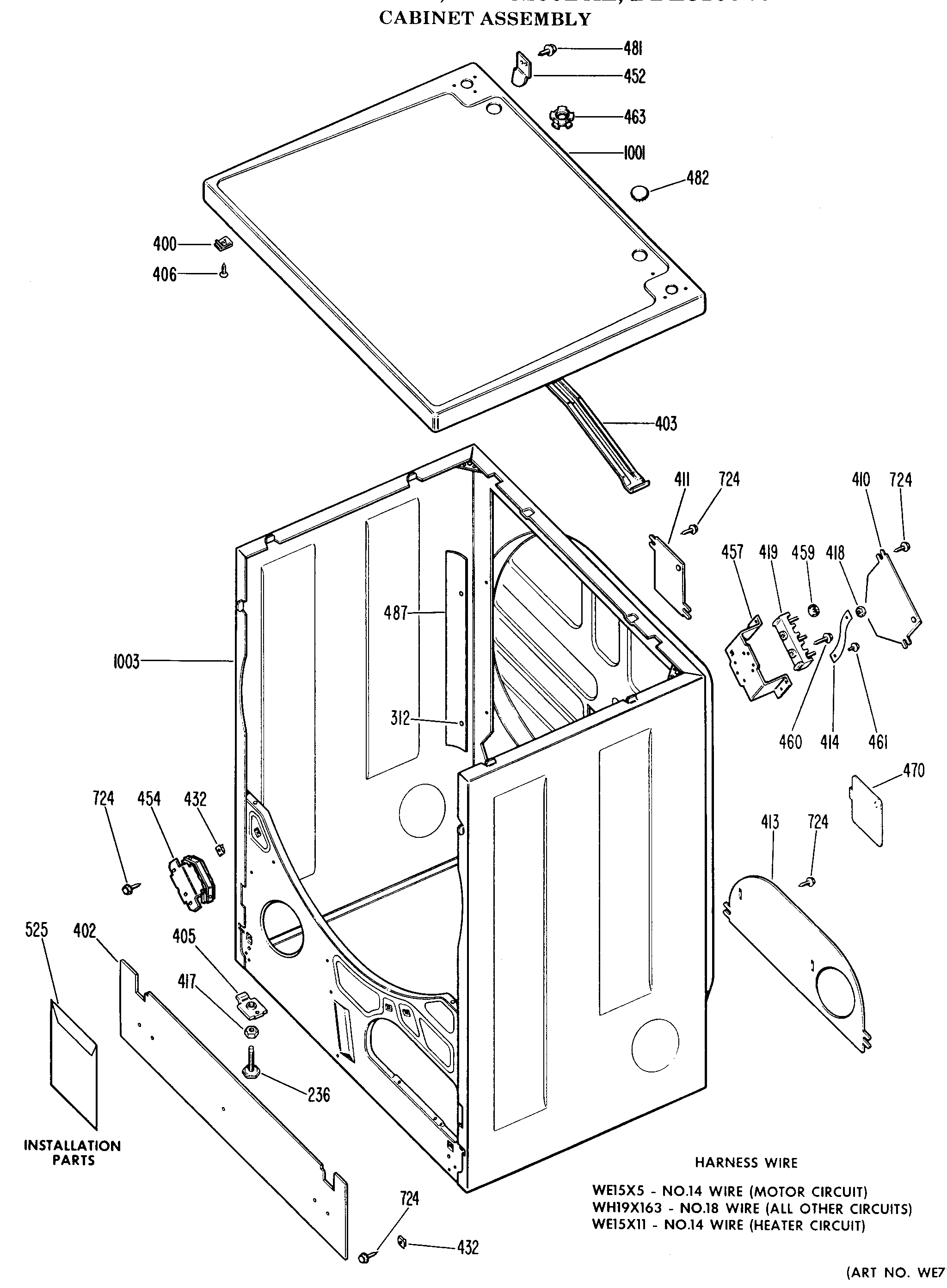

DDE8200DAL CABINET ASSEMBLY
Products
| Position | Product |
|---|---|
| 236 | WE1M642 GE Washer Leveling Leg |
| 312 | GEN WE02X0191 |
| 400 | GEN WE02X0134 |
| 402 | GEN WE20X0347 |
| 403 | GEN WE14X0037 |
| 405 | GEN WE01X0468 |
| 406 | GEN WZ04X0236 |
| 410 | GEN WE01X1048 |
| 411 | KNOCKOUT CABINET WRAPPER |
| 413 | GEN WE14X0167 |
| 414 | GEN WE01X0339 |
| 417 | GEN WZ07X0038 |
| 418 | GEN WZ07X0031 |
| 419 | GEN WE04X0168 |
| 432 | GEN WL02X0071 |
| 452 | BRACKET HINGE |
| 454 | GEN WE25X0060 |
| 457 | GEN WE13X0157 |
| 459 | WASHER CUP |
| 460 | GEN WZ04X0264 |
| 461 | WZ5X158D GE Screw Package of 12 |
| 463 | SLEEVE SPILT |
| 470 | GEN WE01X1056 |
| 481 | GEN WH02X0967 |
| 482 | BUTTON PLUG |
| 487 | SHIELD-WIRE |
| 525 | GEN WE25X0186 |
| 724 | SCREW 10-16 X 1/2" HEX |
| 1001 | GEN WE20X0651 |
| 1001 | GEN WE20X0650 |
| 1001 | GEN WE20X0649 |
| 1003 | GEN WE20X0654 |
| 1003 | GEN WE20X0652 |
| 1003 | CABINET ASM AD |
