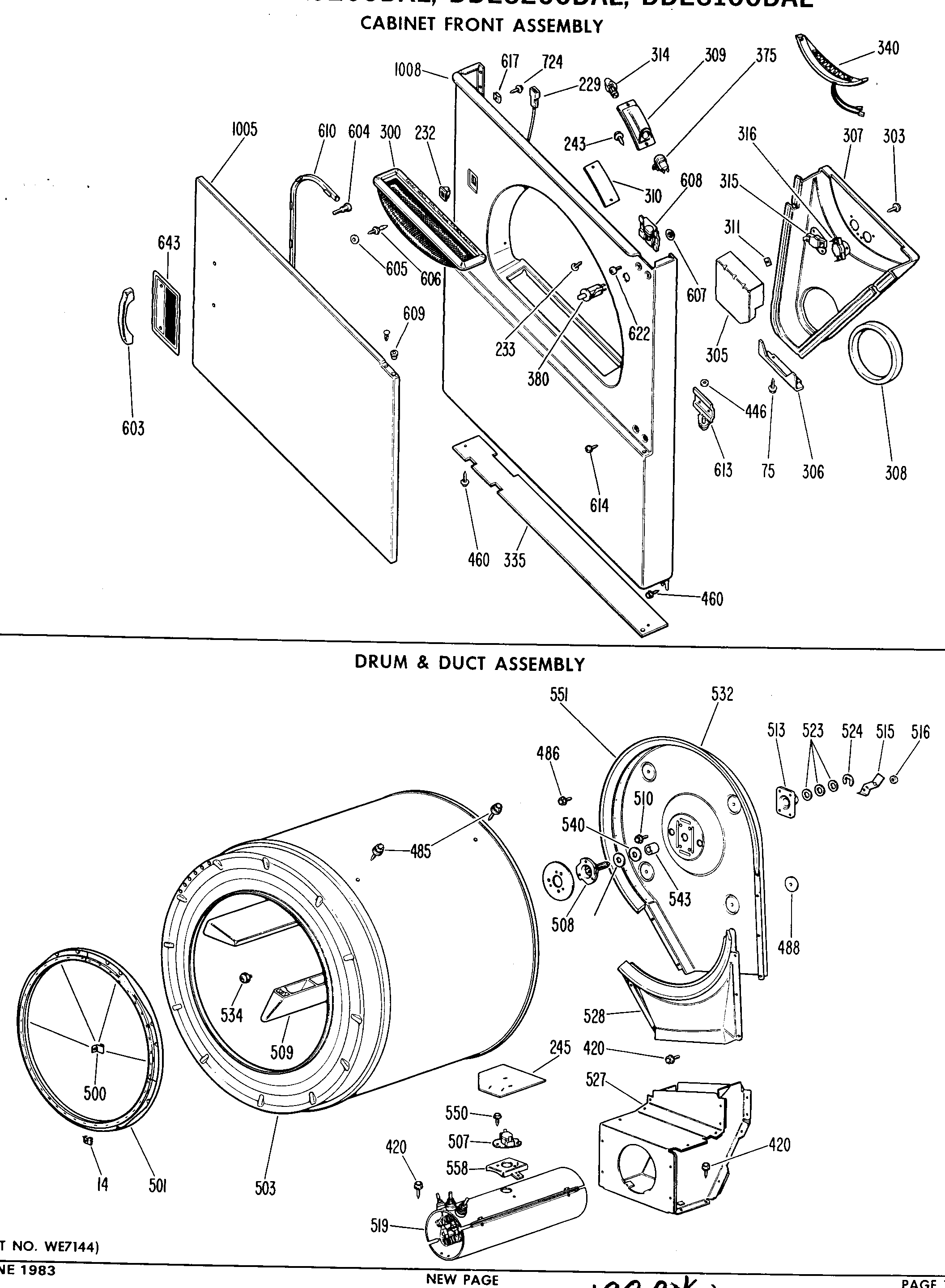

DDE8200DAL CABINET FRONT ASSEMBLY

Products

Position	Product
75	WH2X930 GE Screw
229	GEN WH12X0183
232	WE1M1011 GE Washer Dryer Door Latch
233	GEN WZ04X0236
243	GEN WZ05X0155
300	FILTER ASM LINT
303	GEN WE02X0270
305	GEN WE01X0944
306	GEN WE01X0409
307	GEN WE14X0144
308	WE9X38 GE Dryer Felt Seal Assembly
309	GEN WE01X0427
311	GEN WE02X0192
314	GEN WX12X0079
315	GEN WE04X0600
316	THERMOSTAT LL 35-15
335	PLATE-COVER
375	GEN WE04X0185
380	GEN WE04X0197
446	GEN WE02X0279
460	GEN WZ04X0264
603	GEN WE01X1049
604	GEN WE02X0227
605	GEN WZ10X0016
606	GEN WE01X1042
607	NUT SHEET METAL K
608	GEN WE01X0345
609	GEN WE01X0404
610	GEN WE09X0028
613	GEN WE01X0344
614	GEN WZ04X0257
617	NUT CLIP
622	GEN WE02X0177
643	GEN WE19X0836
724	SCREW 10-16 X 1/2" HEX
1005	DOOR ASM HA
1005	DOOR ASM WH
1005	DOOR ASM AD
1008	CABINET FRONT ASM HA
1008	CABINET FRONT ASM WH
1008	CABINET FRONT ASM AD
