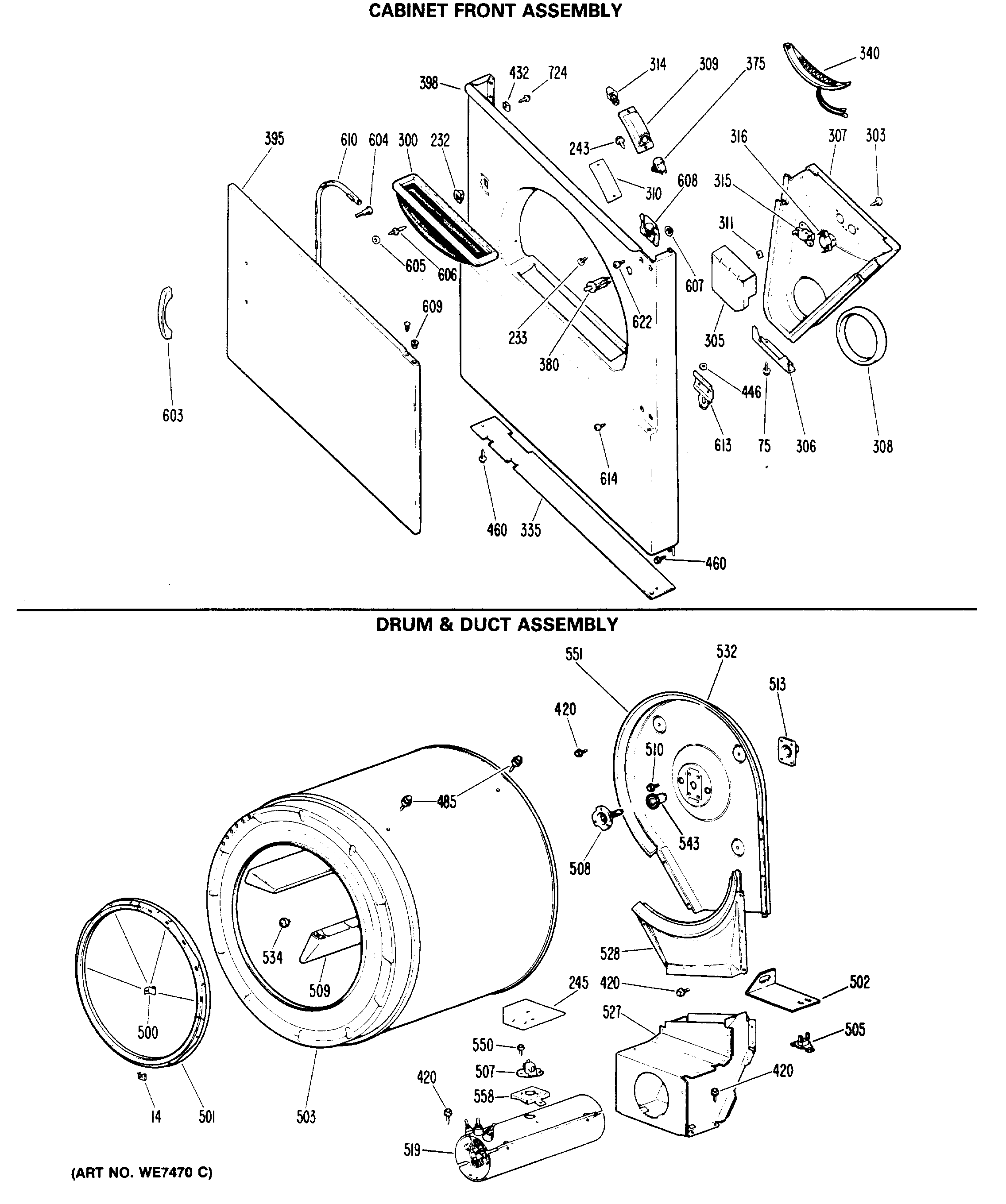

DDE8506MBL CABINET FRONT ASSEMBLY

Products

Position	Product
14	GEN WE01X0762
75	WH2X930 GE Screw
232	WE1M1011 GE Washer Dryer Door Latch
233	GEN WZ04X0236
243	GEN WZ05X0155
245	GEN WE01X1053
300	FILTER ASM LINT
303	GEN WE02X0270
305	GEN WE01X0944
306	GEN WE01X0409
307	GEN WE14X0144
308	WE9X38 GE Dryer Felt Seal Assembly
309	GEN WE01X0427
311	GEN WE02X0192
314	WE05X20431 GE Washer Dryer 120V 10W Light Bulb Lamp
315	GEN WE04X0600
316	THERMOSTAT LL 35-15
335	PLATE-COVER
375	GEN WE04X0719
380	GEN WE04X0197
395	DOOR ASM HA
395	DOOR ASM WH
395	DOOR ASM AD
398	CABINET FRONT ASM HA
398	CABINET FRONT ASM WH
398	CABINET FRONT ASM AD
420	GEN WH02X0893
432	GEN WL02X0071
446	GEN WE02X0279
460	GEN WZ04X0264
485	GEN WE02X0312
500	GEN WE01X0299
501	GEN WE09X0030
502	GEN WE01X1137
503	GEN WE21X0059
505	WE4X800 GE Dryer Thermal Fuse Thermostat
507	WE4X584 GE Dryer High Limit Thermostat
508	WE25M40 GE Dryer Rear Bearing Kit
509	BAFFLE-DRUM
510	WE2X263D GE Screw Package 12 C92
513	WE1X461 GE Bearing Retainer
519	GEN WE11X0089
527	GEN WE14X0193
528	COVER-DUCT
528	GEN WE14X0162
532	GEN WE14X0178
534	GEN WE02X0153
543	WE3X75 GE Dryer Rear Drum Bearing
550	GEN WE02X0281
551	GEN WE09X0044
558	GEN WE13X0158
603	GEN WE01X1054
604	GEN WE02X0227
605	GEN WZ00X0016
606	GEN WE01X1042
607	NUT SHEET METAL K
608	GEN WE01X0345
609	GEN WE01X0404
610	GEN WE09X0028
613	GEN WE01X0344
614	GEN WZ04X0257
622	GEN WE02X0177
724	SCREW 10-16 X 1/2" HEX
