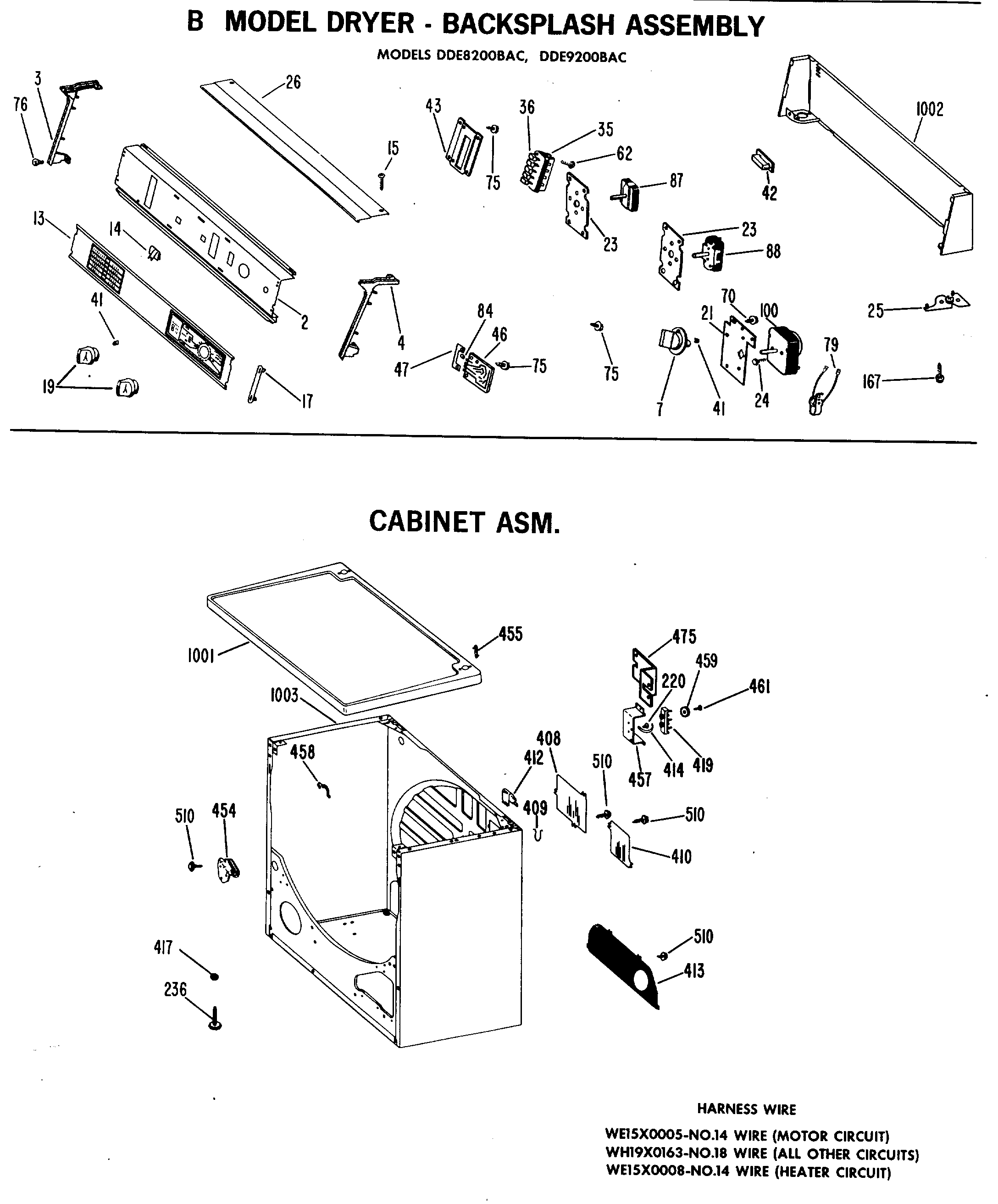

DDE9200BAC B MODEL DRYER – BACKSPLASH ASSEMBLY

DDE9200BAC B MODEL DRYER – BACKSPLASH ASSEMBLY

Written by

in

DDE9200BAC B MODEL DRYER – BACKSPLASH ASSEMBLY

Products

Position	Product
2	GEN WE19X0733
3	GEN WE19X0793
4	GEN WE19X0792
7	GEN WE01X0978
13	GEN WE19X0790
14	GEN WE01X0762
15	GEN WZ04X0319
17	GEN WH01X2008
19	GEN WE01X0979
21	GEN WE13X0076
23	GEN WH16X0434
25	GEN WE01X0926
26	GEN WE19X0791
35	GEN WE04X0616
36	GEN WE01X0981
41	GEN WE01X0980?
43	GEN WH16X0343
46	GEN WE04X0425
47	GEN WE01X0706
62	GEN 8-18X3/4
70	GEN WH02X0937
72	GEN WH02X5137
75	WH2X930 GE Screw
76	GEN WZ05X0120
79	GEN WE01X0690
84	GEN WE01X0704
87	SWITCH ASM-ROTARY 2 POS
88	GEN WE04X0614
100	GEN WE04X0611
167	GEN WE02X0186
220	GEN WE02X0275
236	WE1M642 GE Washer Leveling Leg
326	GEN WE01X0902
408	GEN WE01X0754
409	GEN WE01X0353
410	GEN WE01X0755
412	CLIP-COVER
413	GEN WE14X0103
414	GEN WE01X0339
417	GEN WZ07X0038
418	GEN WZ07X0031
419	GEN WE04X0168
420	GEN WH02X0893
454	GEN WE13X0093
455	STRAP-COVER
457	GEN WE13X0119
458	CLIP
459	WASHER CUP
461	WZ5X158D GE Screw Package of 12
475	GEN WH16X0317
510	WE2X263D GE Screw Package 12 C92
545	TERMINAL 1/4" FEMALE
548	TERMINAL
549	PIN-MALE, HOOD – OVEN
643	GEN WE19X0681
1001	GEN WE20X0583
1001	GEN WE20X0586
1001	GEN WE20X0585
1001	GEN WE20X0584
1001	GEN WE20X0582
1002	GEN WE20X0441
1002	GEN WE19X0701
1002	GEN WE19X0702
1002	GEN WE19X0703
1002	GEN WE19X0704
1003	BASE & WRAPPER ASM AD
1003	BASE & WRAPPER ASM CF
1003	BASE & WRAPPER ASM WH
1003	BASE & WRAPPER ASM HA
1003	BASE & WRAPPER ASM FA
9999	GEN 49-9402
9999	GEN 49-9401
9999	GEN 49-9043
