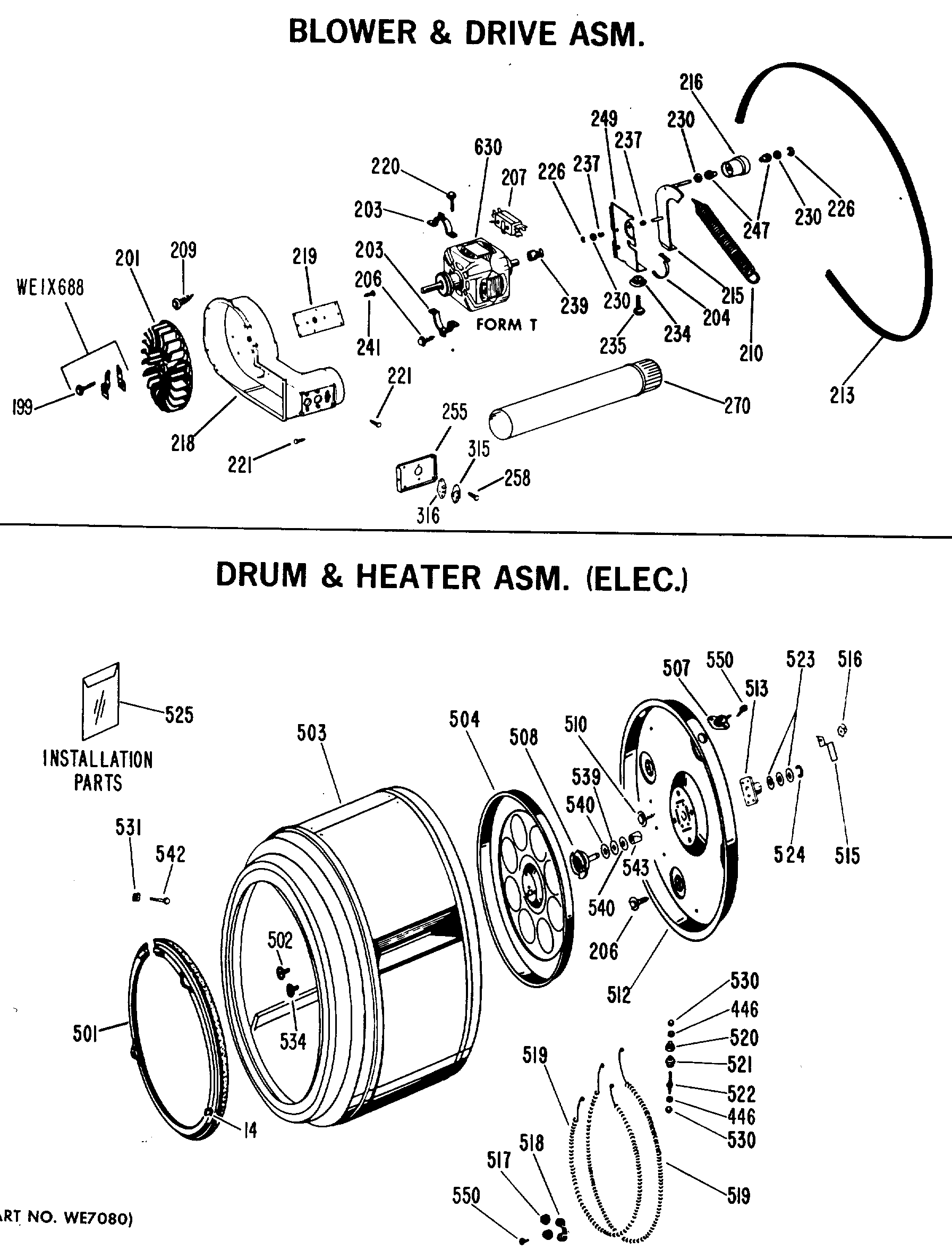

DDE9200BAC BLOWER & DRIVE ASM.

Products

Position	Product
14	GEN WE01X0762
199	GEN WE02X0280
201	WHEEL BLOWER
203	WE13X200 GE Motor Strap
204	WE1X921 GE Motor Strap
206	GEN 10-16X3/8
207	SWITCH START (FORM T)
209	GEN WE02X0269
210	GEN WE01X0866
213	GEN WE12X0049
215	GEN WE03X0041
216	GEN WE12X0045
218	GEN WE14X0135
219	GEN WE13X0132
220	GEN WE02X0275
221	GEN WE02X0267
226	RING-E
230	GEN WE02X0211
234	GEN WE02X0154
235	GEN WE02X0194
237	GEN WE03X0040
239	GEN WE12X0050
241	GEN WE02X0268
247	WE12X81 GE Dryer Idler Pulley
249	GEN WE13X0092
255	GEN WE13X0131
258	GEN WE02X0266
270	GEN WE14X0137
315	GEN WE04X0600
316	THERMOSTAT LL 35-15
446	GEN WE02X0279
501	GEN WE09X0040
502	GEN WE02X0277
503	GEN WE21X0047
504	GEN WE14X0086
507	WE4X584 GE Dryer High Limit Thermostat
510	WE2X263D GE Screw Package 12 C92
512	GEN WE11X0067
513	WE1X461 GE Bearing Retainer
515	WE1X1172 GE Strap Assembly
516	WR01X10212 GE Refrigerator 8-32 Nut
517	GEN WE01X0336
518	CLIP HEATER COIL
519	COIL ASM HEATER
520	INSULATOR OUTER
521	INSULATOR INNER
522	STUD HEATER
523	WASHER FLAT
524	GEN WE02X0210
525	PK PACK ASM INSTALLATION
530	GEN WE02X0278
531	GEN WE02X0216
534	GEN WE02X0153
539	WE25M40 GE Dryer Rear Bearing Kit
540	WASHER FLAT
542	GEN WE02X0215
543	WE3X75 GE Dryer Rear Drum Bearing
550	GEN WE02X0281
630	WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
