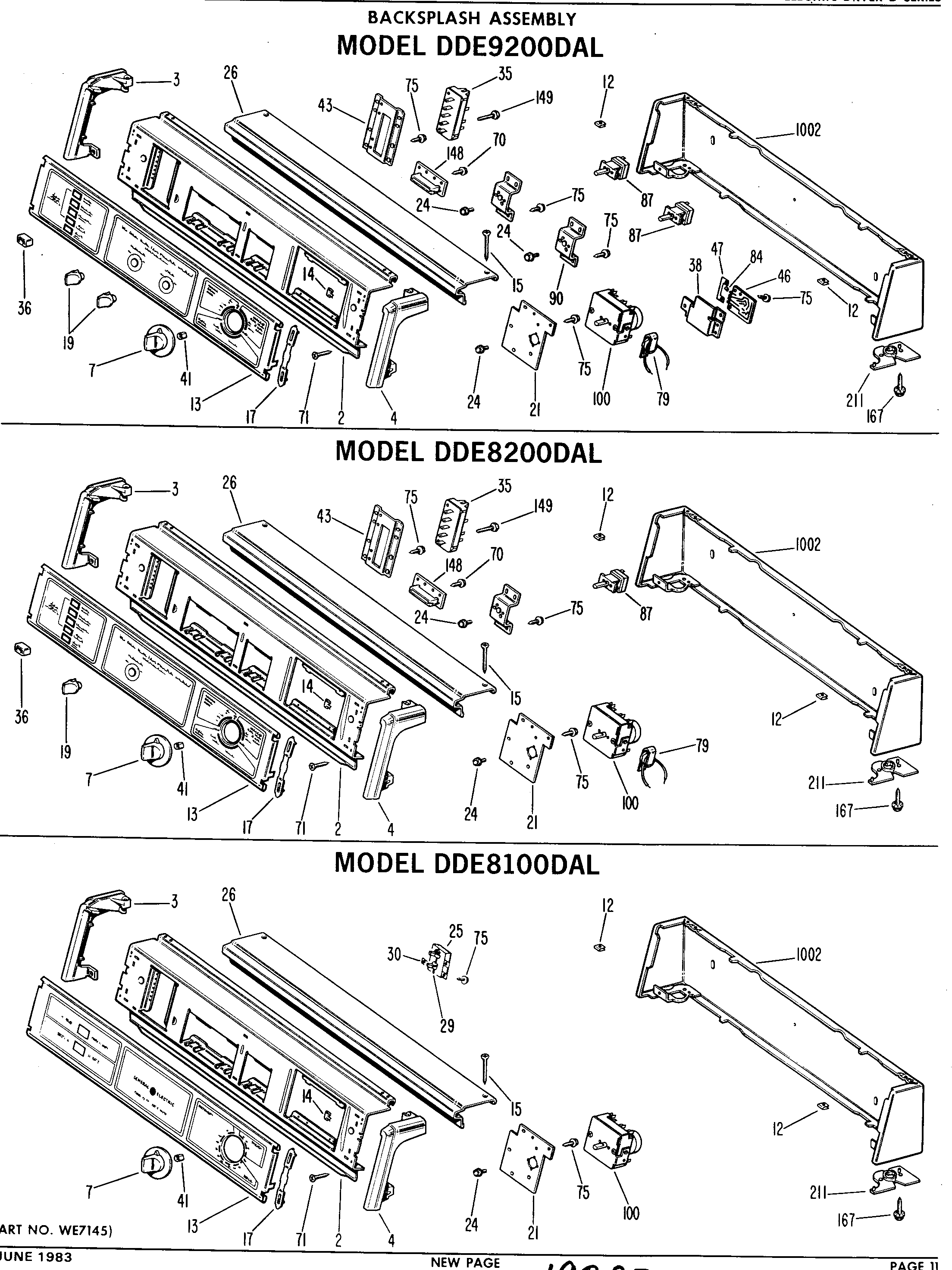

DDE9200DAL BACKSPLASH ASSEMBLY

Products

Position	Product
2	GEN WE19X0719
3	GEN WE19X0793
4	GEN WE19X0792
7	GEN WE01X0978
12	SPEEDNUT
13	GEN WE19X0799
14	GEN WE01X0762
15	GEN WZ04X0319
17	GEN WH01X2008
21	GEN WE13X0076
25	GEN WE04X0352
26	GEN WH42X2033
29	GEN WH01X1394
30	GEN WE01X0835
41	GEN WE01X0980?
70	GEN WH02X0937
71	GEN WH02X0947
75	WH2X930 GE Screw
100	GEN WE04X0525
167	GEN WE02X0186
211	GEN WE01X0553
245	GEN WE01X1053
484	GEN WE01X1045
485	GEN WE02X0312
486	SCREW 10-16 X 1/2" HEX
488	SPACER-DIFFUSER
500	GEN WE01X0299
501	GEN WE09X0030
503	GEN WE21X0059
507	WE4X584 GE Dryer High Limit Thermostat
509	BAFFLE-DRUM
510	WE2X263D GE Screw Package 12 C92
513	WE1X461 GE Bearing Retainer
515	WE1X1172 GE Strap Assembly
516	WR01X10212 GE Refrigerator 8-32 Nut
519	GEN WE11X0080
520	INSULATOR OUTER
521	INSULATOR INNER
522	STUD HEATER
523	WASHER FLAT
524	RING RETAINING
527	GEN WE14X0164
528	GEN WE14X0162
530	GEN WE02X0278
532	GEN WE14X0163
534	GEN WE02X0153
539	WE25M40 GE Dryer Rear Bearing Kit
540	WASHER FLAT
543	WE3X75 GE Dryer Rear Drum Bearing
550	GEN WE02X0281
551	GEN WE09X0044
558	GEN WE13X0158
715	GEN WD02X5063
1002	GEN WH46X0212
1002	GEN WH46X0211
1002	GEN WH46X0215
9999	GEN 49-9459
9999	GEN 49-9064
9999	GEN 49-9458
