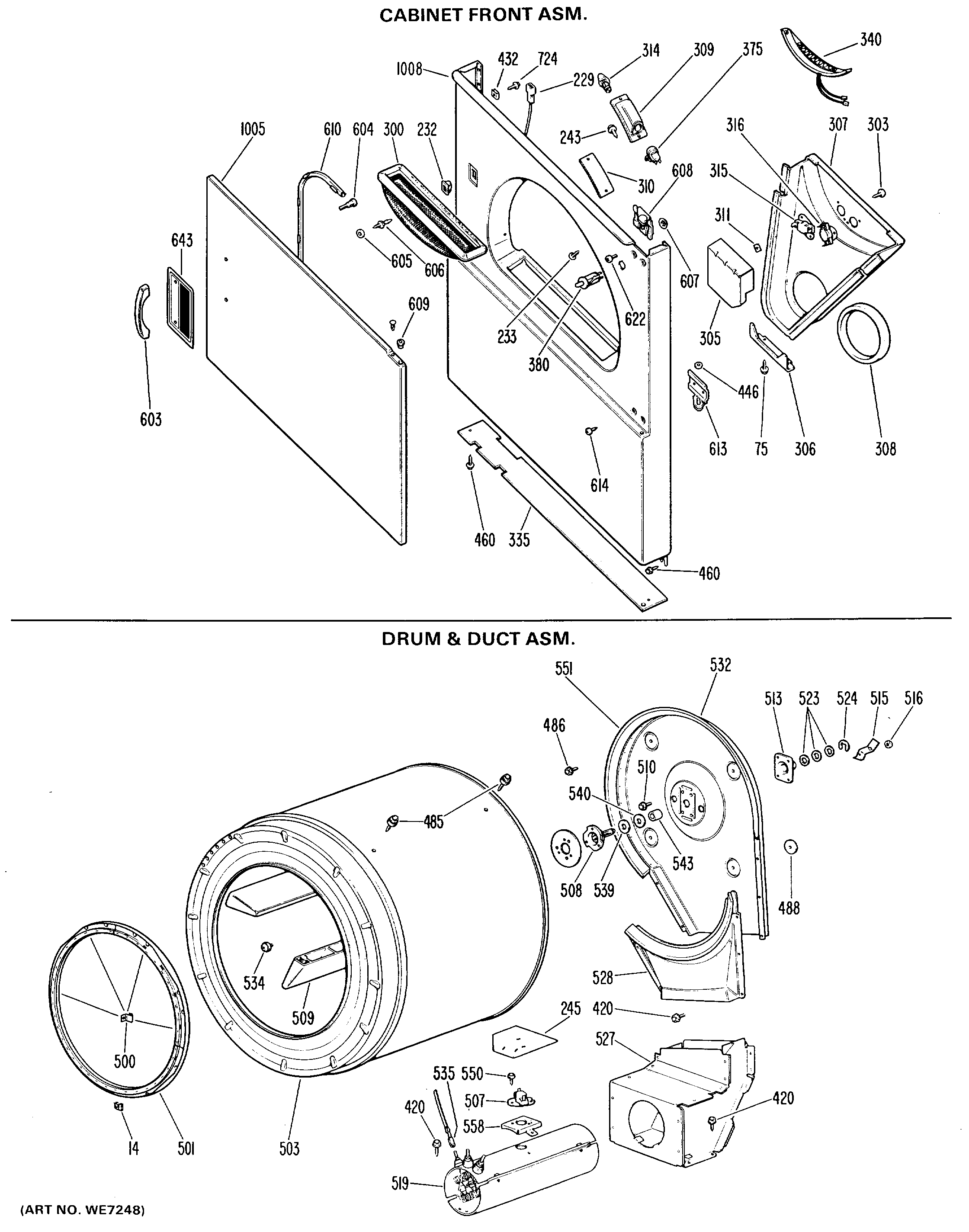

DDE9200GAL CABINET FRONT ASM.

Products

Position	Product
14	GEN WE01X0762
75	WH2X930 GE Screw
229	GEN WH12X0183
232	WE1M1011 GE Washer Dryer Door Latch
233	GEN WZ04X0236
243	GEN WZ05X0155
245	GEN WE01X1053
300	FILTER ASM LINT
303	GEN WE02X0270
305	GEN WE01X0944
306	GEN WE01X0409
307	DUCT TRAP
308	WE9X38 GE Dryer Felt Seal Assembly
309	GEN WE01X0427
311	GEN WE02X0192
314	LAMP K
315	GEN WE04X0600
316	THERMOSTAT LL 35-15
335	PLATE-COVER
340	GEN WE04X0667
375	GEN WE04X0185
380	GEN WE04X0197
420	GEN WH02X0893
432	GEN WL02X0071
446	GEN WE02X0279
460	GEN WZ04X0264
485	GEN WE02X0312
488	SPACER-DIFFUSER
500	GEN WE01X0299
501	GEN WE09X0030
503	GEN WE21X0059
507	WE4X584 GE Dryer High Limit Thermostat
509	BAFFLE-DRUM
510	WE2X263D GE Screw Package 12 C92
513	WE1X461 GE Bearing Retainer
515	WE1X1172 GE Strap Assembly
516	WR01X10212 GE Refrigerator 8-32 Nut
519	GEN WE11X0080
523	WASHER FLAT
524	RING RETAINING
527	GEN WE14X0164
528	COVER-DUCT
528	GEN WE14X0162
532	GEN WE14X0163
534	GEN WE02X0153
535	TERMINAL (HEATER COIL)
539	WE25M40 GE Dryer Rear Bearing Kit
540	WASHER FLAT
543	WE3X75 GE Dryer Rear Drum Bearing
550	GEN WE02X0281
551	GEN WE09X0044
558	GEN WE13X0158
603	GEN WE01X1054
604	GEN WE02X0227
605	GEN WZ10X0016
606	GEN WE01X1042
607	NUT SHEET METAL K
608	GEN WE01X0345
609	GEN WE01X0404
610	GEN WE09X0028
613	GEN WE01X0344
614	GEN WZ04X0257
622	GEN WE02X0177
643	GEN WE19X0861
724	SCREW 10-16 X 1/2" HEX
1005	DOOR ASM AD
1005	DOOR ASM HA
1005	DOOR ASM WH
1005	GEN WE10X0297
1005	GEN WE10X0296
1008	GEN WE20X0686
1008	GEN WE20X0685
1008	CABINET FRONT ASM AD
1008	CABINET FRONT ASM HA
1008	CABINET FRONT ASM WH
