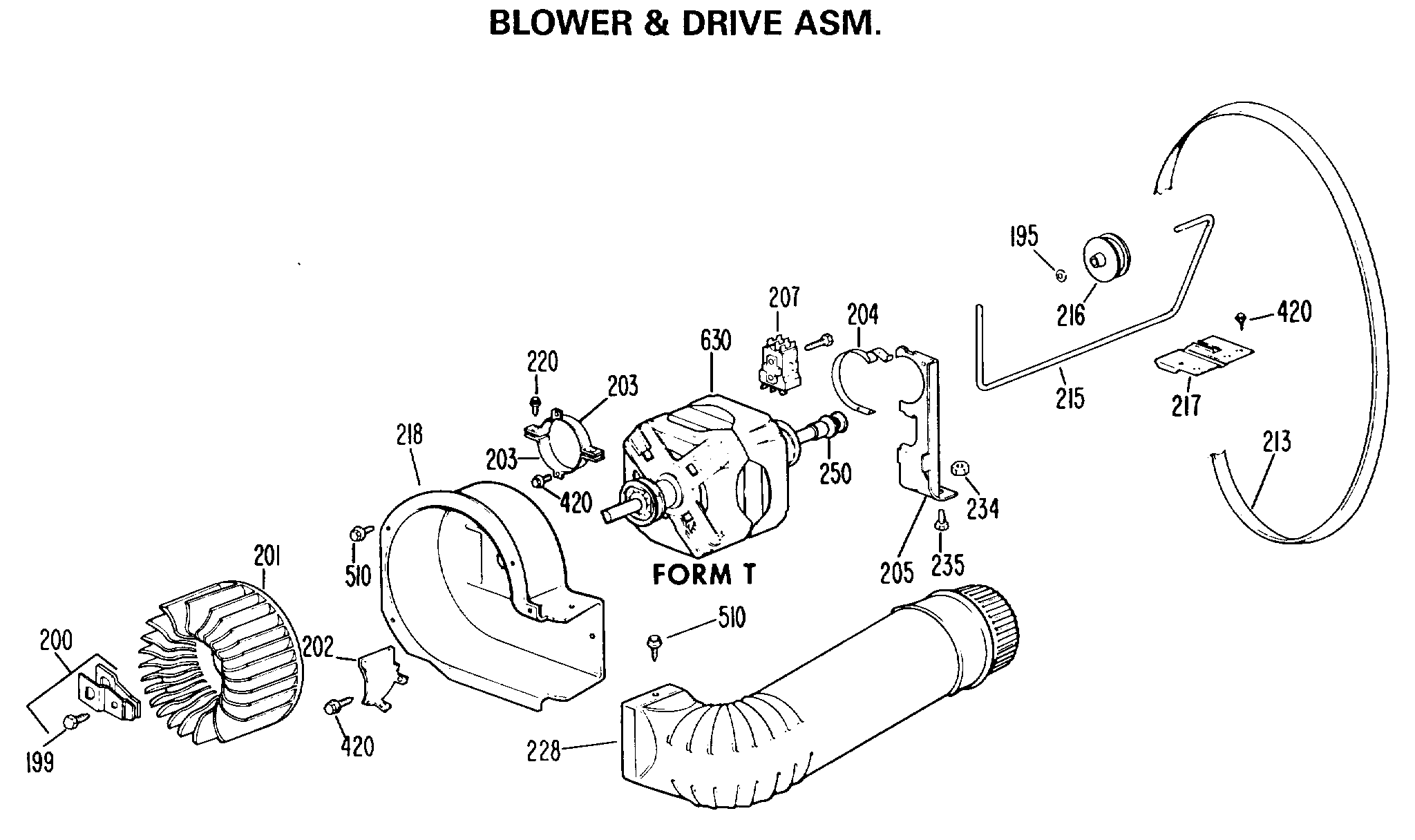

DDE9200GBL BLOWER & DRIVE ASM.

DDE9200GBL BLOWER & DRIVE ASM.

Written by

in

DDE9200GBL BLOWER & DRIVE ASM.

Products

PositionProduct
195GEN WH02X0885
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
202GEN WE01X0689
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205GEN WE13X0161
207SWITCH START (FORM T)
213WE12X10014 GE Washer Drive Belt
215GEN WE03X0069
216WE12X83 GE Dryer Idler Pulley
217GEN WE13X0159
218GEN WE14X0134
220GEN WE02X0275
228GEN WE14X0166
234GEN WE02X0154
235GEN WE02X0194
250GEN WE12X0041
420GEN WH02X0893
510WE2X263D GE Screw Package 12 C92
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
