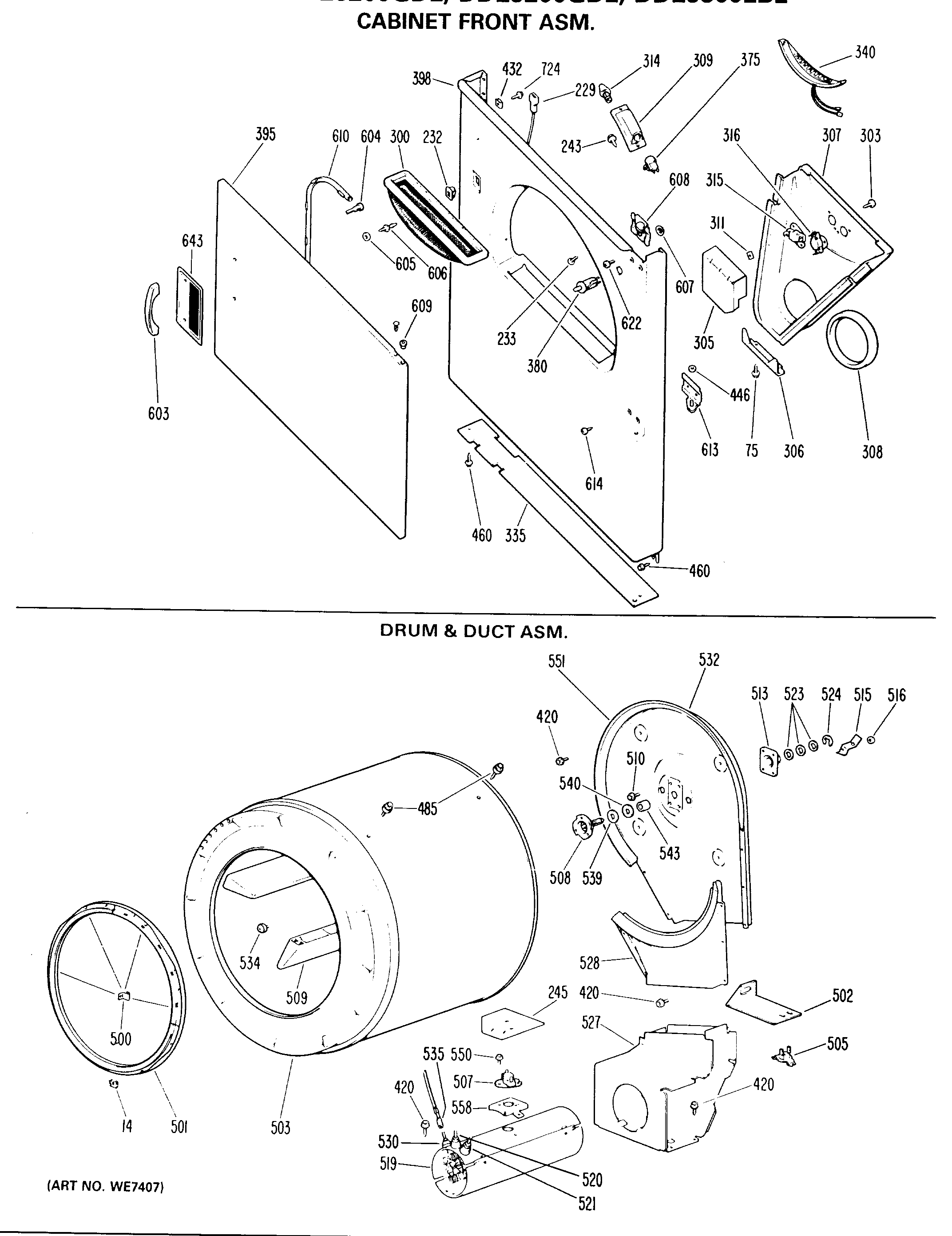

DDE9300LBL CABINET FRONT ASM.

DDE9300LBL CABINET FRONT ASM.

Written by

in

DDE9300LBL CABINET FRONT ASM.

Products

PositionProduct
14GEN WE01X0762
75WH2X930 GE Screw
229GEN WH12X0183
232WE1M1011 GE Washer Dryer Door Latch
233GEN WZ04X0236
243GEN WZ05X0155
245GEN WE01X1053
300FILTER ASM LINT
303GEN WE02X0270
305GEN WE01X0944
306GEN WE01X0409
307DUCT TRAP
308WE9X38 GE Dryer Felt Seal Assembly
309GEN WE01X0427
311GEN WE02X0192
314WE05X20431 GE Washer Dryer 120V 10W Light Bulb Lamp
315GEN WE04X0600
316THERMOSTAT LL 35-15
335PLATE-COVER
340GEN WE04X0667
375GEN WE04X0719
380GEN WE04X0197
395DOOR ASM HA
395DOOR ASM AD
395DOOR ASM WH
398CABINET FRONT ASM WH
398CABINET FRONT ASM HA
398CABINET FRONT ASM AD
420GEN WH02X0893
432GEN WL02X0071
446GEN WE02X0279
460GEN WZ04X0264
485GEN WE02X0312
500GEN WE01X0299
501GEN WE09X0030
502GEN WE01X1137
503GEN WE21X0059
505WE4X800 GE Dryer Thermal Fuse Thermostat
507WE4X584 GE Dryer High Limit Thermostat
509BAFFLE-DRUM
510WE2X263D GE Screw Package 12 C92
513WE1X461 GE Bearing Retainer
515WE1X1172 GE Strap Assembly
516WR01X10212 GE Refrigerator 8-32 Nut
519GEN WE11X0080
520INSULATOR OUTER
521INSULATOR INNER
523WASHER FLAT
524RING RETAINING
527GEN WE14X0193
528GEN WE14X0162
530GEN WE02X0278
532GEN WE14X0178
534GEN WE02X0153
535TERMINAL (HEATER COIL)
539WE25M40 GE Dryer Rear Bearing Kit
540WASHER FLAT
543WE3X75 GE Dryer Rear Drum Bearing
550GEN WE02X0281
551GEN WE09X0044
558GEN WE13X0158
603GEN WE01X1135
604GEN WE02X0227
605GEN WZ10X0016
606GEN WE01X1042
607NUT SHEET METAL K
608GEN WE01X0345
609GEN WE01X0404
613GEN WE01X0344
614GEN WZ04X0257
622GEN WE02X0177
724SCREW 10-16 X 1/2" HEX
