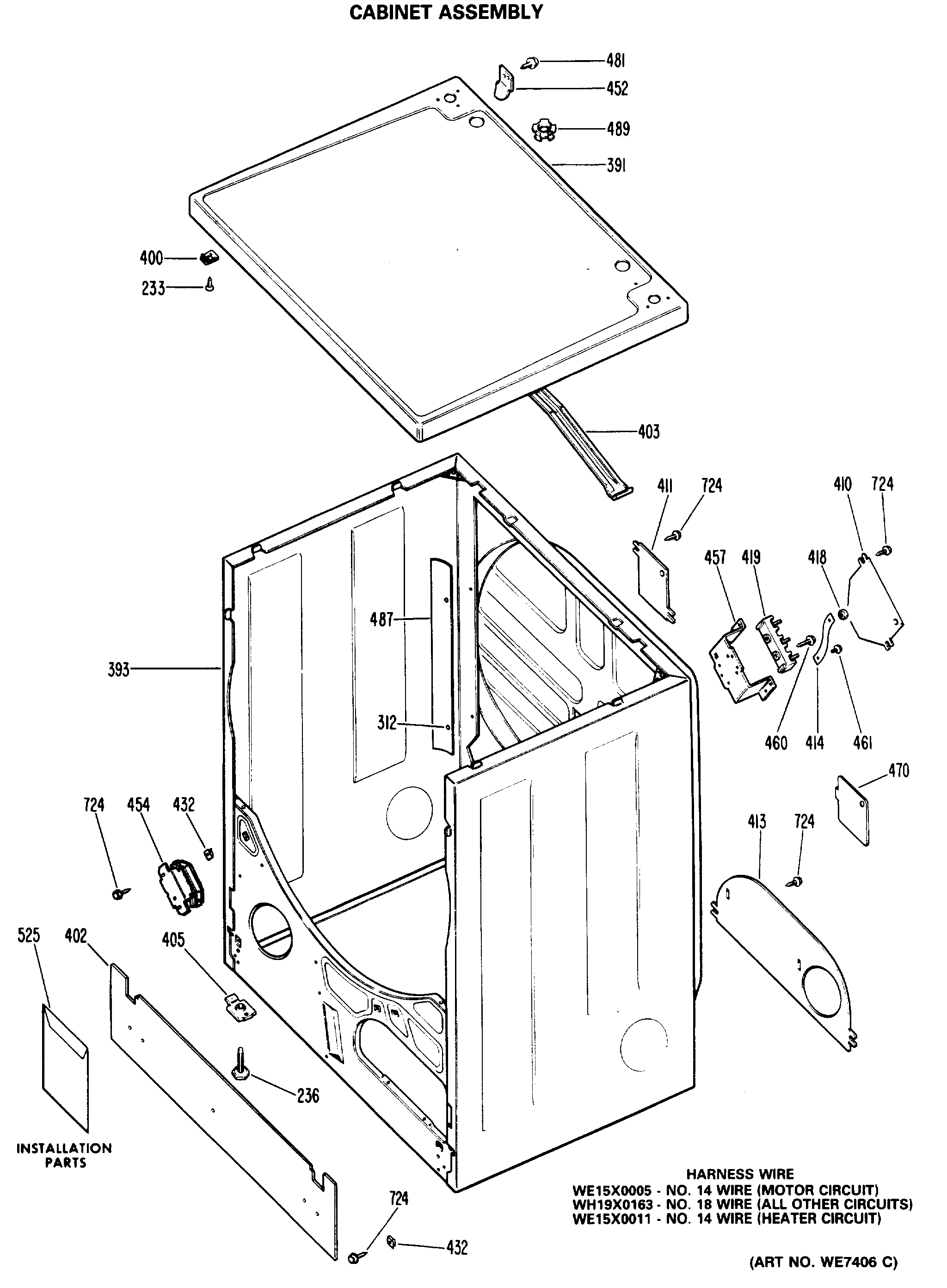

DDE9500MBL CABINET ASSEMBLY

DDE9500MBL CABINET ASSEMBLY

Written by

in

DDE9500MBL CABINET ASSEMBLY

Products

Position	Product
233	GEN WZ04X0236
236	WE1M642 GE Washer Leveling Leg
312	GEN WE02X0191
391	WELD ASM COVER WH
391	WELD ASM COVER HA
391	WELD ASM COVER AD
393	GEN WE20X0674
393	GEN WE20X0675
393	GEN WE20X0673
400	GEN WE02X0134
402	GEN WE20X0347
403	GEN WE14X0037
405	GEN WE01X0468
410	GEN WE01X1048
413	GEN WE14X0167
414	GEN WE01X0339
418	GEN WZ07X0031
419	GEN WE04X0168
432	GEN WL02X0071
452	GEN WE01X1094
454	GEN WE25X0060
457	GEN WE13X0162
460	GEN WZ04X0264
461	WZ5X158D GE Screw Package of 12
481	GEN WH02X0967
487	SHIELD-WIRE
489	GEN WH01X2572
525	GEN WE25X0186
724	SCREW 10-16 X 1/2" HEX
