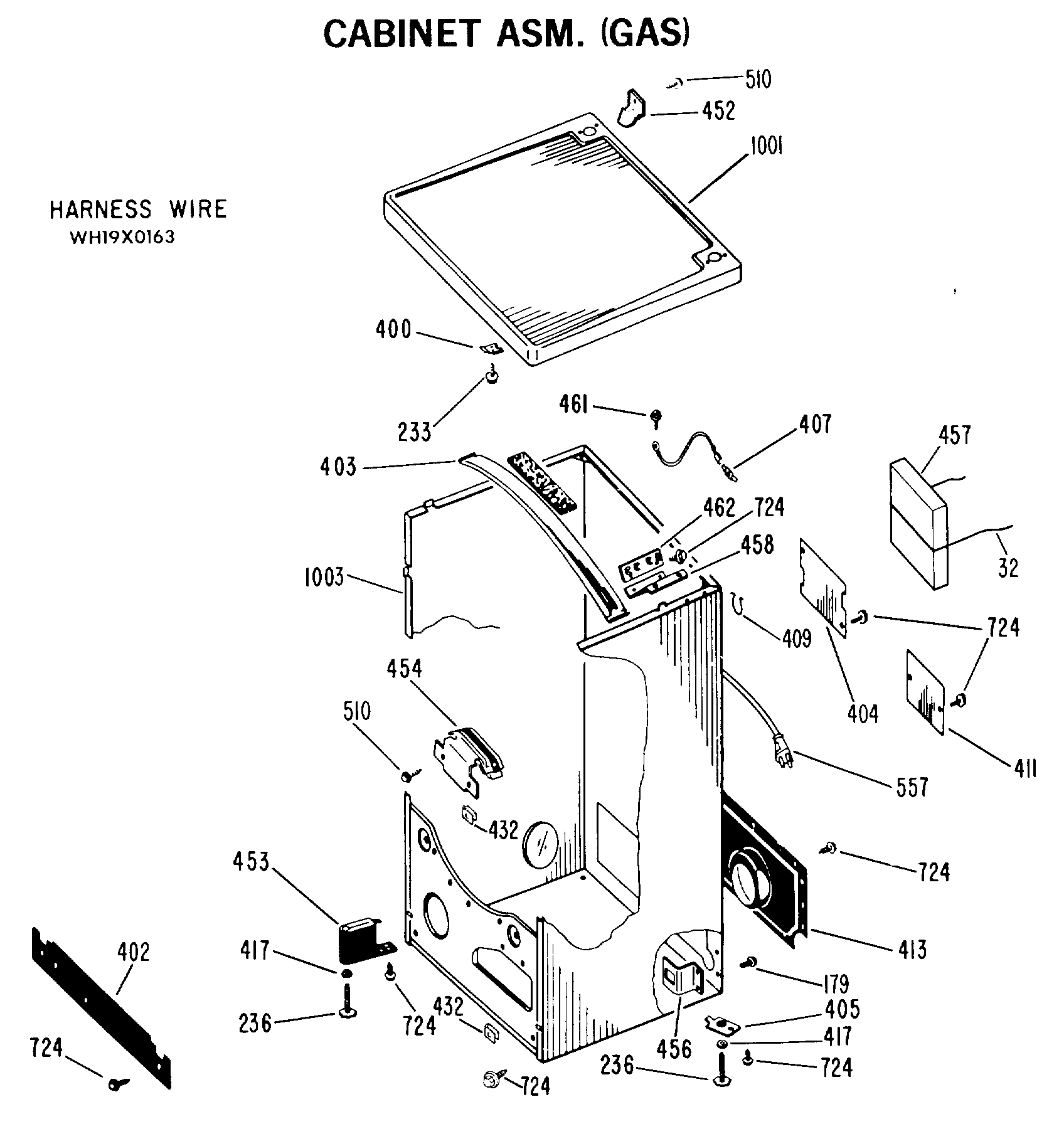

DDG5389VCL CABINET ASM. (GAS)

DDG5389VCL CABINET ASM. (GAS)

Written by

in

DDG5389VCL CABINET ASM. (GAS)

Products

PositionProduct
32GEN WH16X0370
233GEN WZ04X0236
236WE1M642 GE Washer Leveling Leg
400GEN WE02X1134
402GEN WE20X1347
403GEN WE14X1137
404GEN WE01X1425
405GEN WE01X0468
411KNOCKOUT CABINET WRAPPER
413GEN WE14X0066
417GEN WZ07X0038
432GEN WE02X0282
452BRACKET HINGE
453GEN WE13X0080
454GEN WE25X0060
456WE1X617 GE Pipe Clamp
457COUNTERWEIGHT DRYER
458BRACKET-TERMINAL BOARD
461WZ5X158D GE Screw Package of 12
462BOARD ASM-TERMINAL
510WE2X263D GE Screw Package 12 C92
557CORDSET ASM-GROUNDING
724SCREW 10-16 X 1/2" HEX
1001GEN WE20X0557
1001GEN WE20X0558
1001GEN WE20X0556
1001GEN WE20X0555
1001GEN WE20X0530
1003BASE & WRAPPER ASM CF
1003BASE & WRAPPER ASM HA
1003BASE & WRAPPER ASM FA
1003BASE & WRAPPER ASM WH
1003BASE & WRAPPER ASM AD
