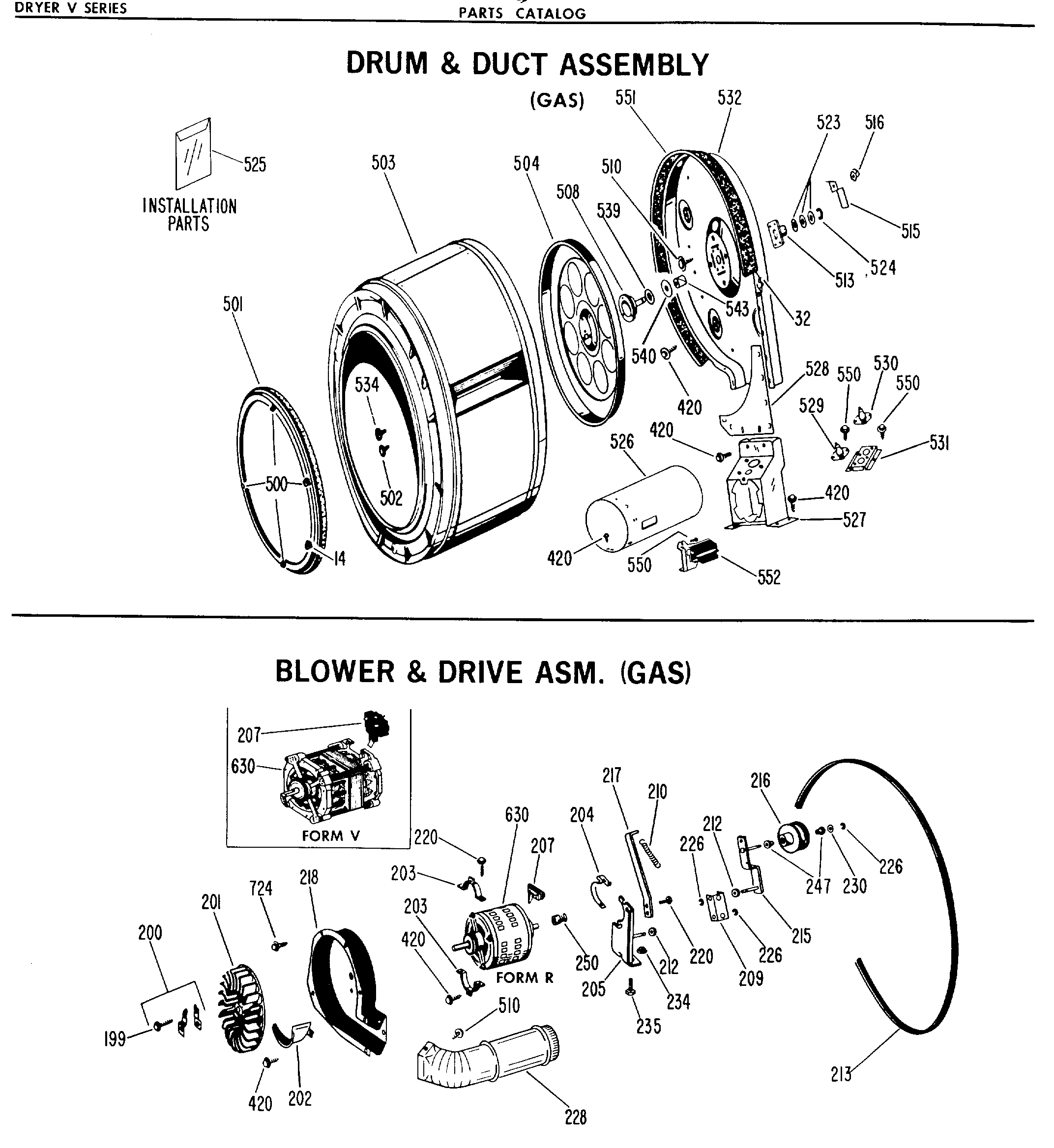

DDG5389VCL DRUM & DUCT ASSEMBLY (GAS)

DDG5389VCL DRUM & DUCT ASSEMBLY (GAS)

Written by

in

DDG5389VCL DRUM & DUCT ASSEMBLY (GAS)

Products

PositionProduct
14GEN WE01X0762
32GEN WH16X0370
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
202GEN WE01X0689
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205GEN WE13X0088
207SWITCH START (FORM T)
209GEN WE13X0089
210GEN WE01X0528
212GEN WE02X0206
213WE12X10014 GE Washer Drive Belt
215GEN WE03X0038
217GEN WE01X0527
218GEN WE14X0134
220GEN WE02X0275
226RING-E
228GEN WE14X0139
230GEN WE02X0211
234GEN WE02X0154
235GEN WE02X0194
247WE12X81 GE Dryer Idler Pulley
250GEN WE12X0041
420GEN WH02X0893
500GEN WE01X0299
501GEN WE09X0030
502GEN WE02X0277
503GEN WE21X0049
504GEN WE14X0086
510WE2X263D GE Screw Package 12 C92
513WE1X461 GE Bearing Retainer
515WE1X1172 GE Strap Assembly
516WR01X10212 GE Refrigerator 8-32 Nut
523WASHER FLAT
524RING RETAINING
525GEN WE25X0098
526CHAMBER COMBUSTION 6'
527GEN WE14X0083
528GEN WE14X0072
529GEN WE04X0419
530GEN WE04X0552
531BRACKET-THERMO
532GEN WE14X0125
534GEN WE02X0153
539WE25M40 GE Dryer Rear Bearing Kit
540WASHER FLAT
543WE3X75 GE Dryer Rear Drum Bearing
550GEN WE02X0281
551GEN WE09X0044
552WE4X448 GE Heat Detector Assembly
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
724SCREW 10-16 X 1/2" HEX
