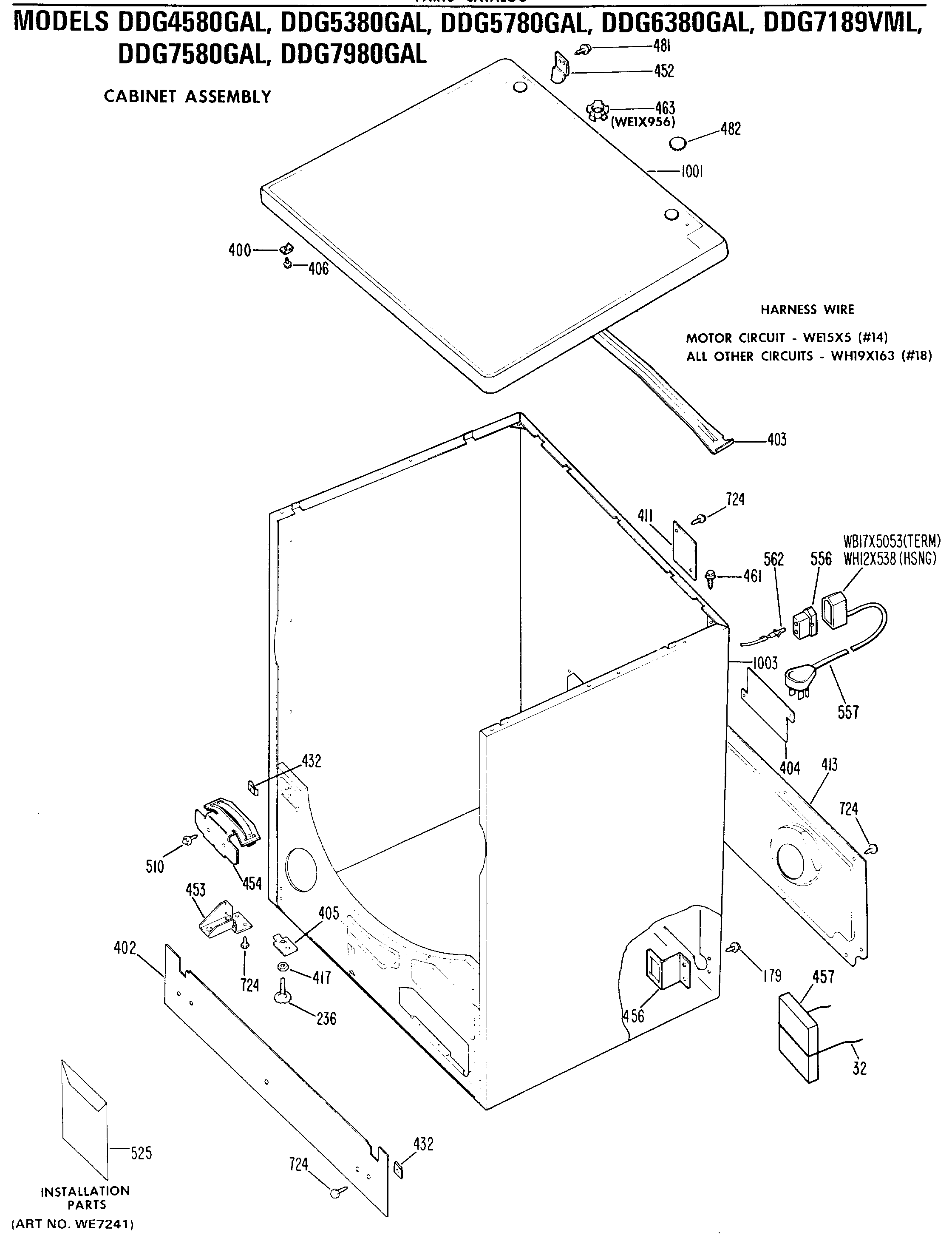

DDG5780GAL CABINET ASSEMBLY

Products

Position	Product
32	GEN WH16X0370
236	WE1M642 GE Washer Leveling Leg
400	GEN WE02X0134
402	GEN WE20X0347
403	GEN WE14X0037
404	GEN WE01X0425
405	GEN WE01X0468
406	GEN WZ04X0236
411	KNOCKOUT CABINET WRAPPER
413	GEN WE14X0066
417	GEN WZ07X0038
432	GEN WL02X0071
452	BRACKET HINGE
453	GEN WE13X0080
454	GEN WE25X0060
456	WE1X617 GE Pipe Clamp
457	COUNTERWEIGHT DRYER
461	WZ5X158D GE Screw Package of 12
463	SLEEVE SPILT
481	GEN WH02X0967
510	WE2X263D GE Screw Package 12 C92
525	GEN WE25X0098
556	GEN WH12X0497
557	GEN WE08X0031
562	GEN WB17X5054
724	SCREW 10-16 X 1/2" HEX
1001	WELD ASM COVER SL
1001	WELD ASM COVER DS
1001	WELD ASM COVER HA
1001	WELD ASM COVER AD
1001	WELD ASM COVER WH
1003	GEN WE20X0672
1003	GEN WE20X0671
1003	GEN WE20X0670
1003	GEN WE20X0689
1003	GEN WE20X0690
