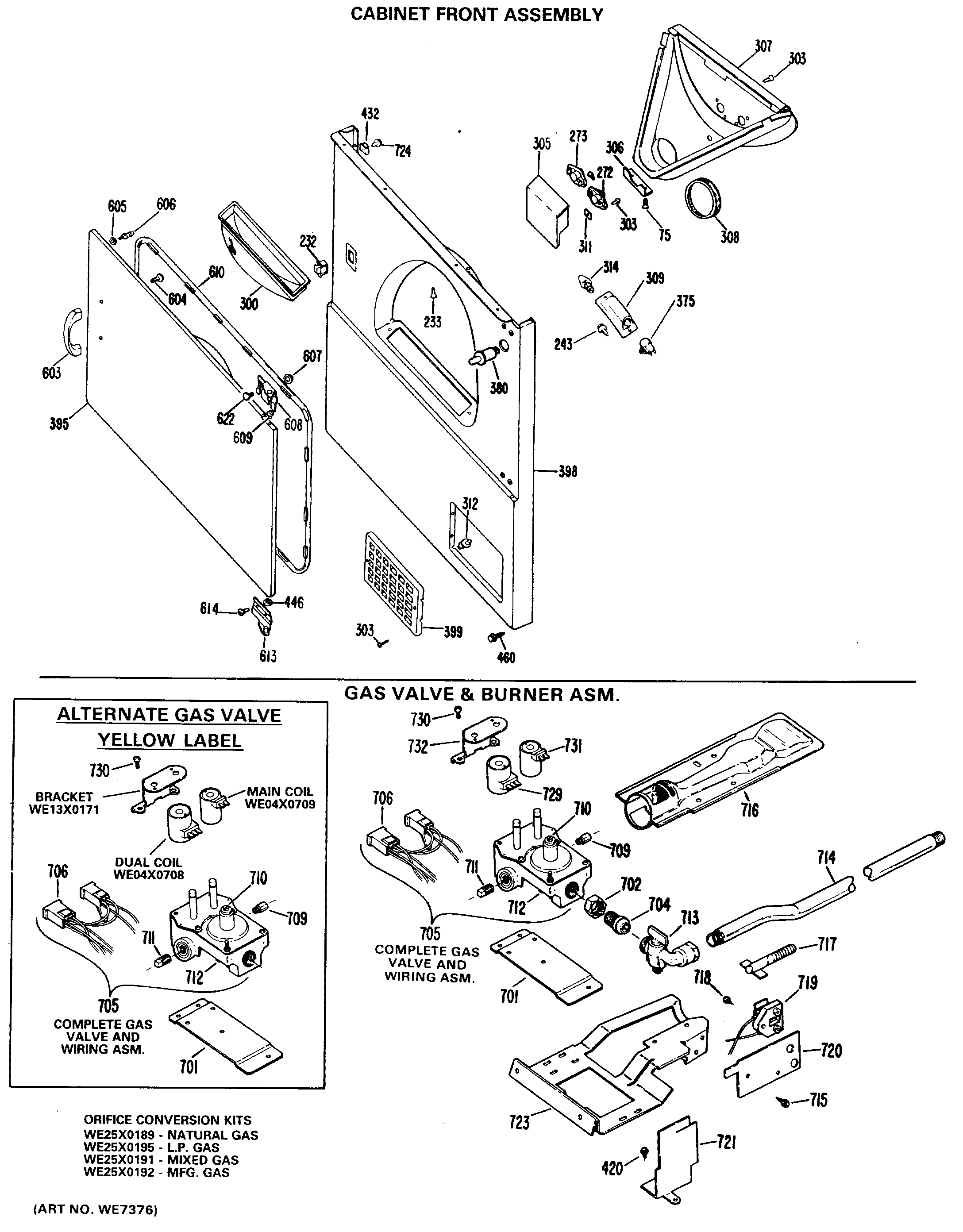

DDG5786LAL CABINET FRONT ASSEMBLY

Products

Position	Product
75	WH2X930 GE Screw
232	WE1M1011 GE Washer Dryer Door Latch
233	GEN WZ04X0236
243	GEN WZ05X0155
272	GEN WE04X0607
273	GEN WE04X0608
300	FILTER ASM LINT
303	GEN WE02X0270
305	GEN WE01X0944
306	GEN WE01X0409
307	GEN WE14X0144
308	WE9X38 GE Dryer Felt Seal Assembly
309	GEN WE01X0427
311	GEN WE02X0192
312	GEN WE02X0191
314	WE05X20431 GE Washer Dryer 120V 10W Light Bulb Lamp
375	GEN WE04X0719
380	GEN WE04X0197
395	DOOR ASM AD
395	DOOR ASM HA
395	DOOR ASM WH
398	CABINET FRONT ASM HA
398	CABINET FRONT ASM WH
398	CABINET FRONT ASM AD
399	GEN WE10X0205
399	GEN WE10X0254
399	GEN WE10X0256
420	GEN WH02X0893
432	GEN WL02X0071
446	GEN WE02X0279
460	GEN WZ04X0264
603	GEN WE01X0257
604	GEN WE02X0227
605	GEN WZ10X0016
606	GEN WE01X1042
607	NUT SHEET METAL K
609	GEN WE01X0404
610	GEN WE09X0028
613	GEN WE01X0344
614	GEN WZ04X0257
622	GEN WE02X0177
701	GEN WE13X0166
702	GEN WE02X0319
704	GEN WE02X0320
709	ORIFICE (69-2043)
710	WE1X1076 GE Leak Limiter
713	GEN WE01X1078
714	PIPE LUG ASM
715	GEN WD02X5063
716	WE14M104 GE Burner Assembly
717	WE4X444 GE Round Igniter
718	GEN WZ04X0220
719	GEN WE01X1075
720	BRACKET IGNITER
721	GEN WE13X0118
723	BRACKET VALVE
724	SCREW 10-16 X 1/2" HEX
729	WE14X215 GE Gas Valve
729	WE4X692 GE Gas Valve Solenoid
730	WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731	WE4X693 GE Main Coil
732	GEN WE13X0171
732	GEN WE13X0169
