DDG5989VCL CABINET ASM. (GAS) – Aparts

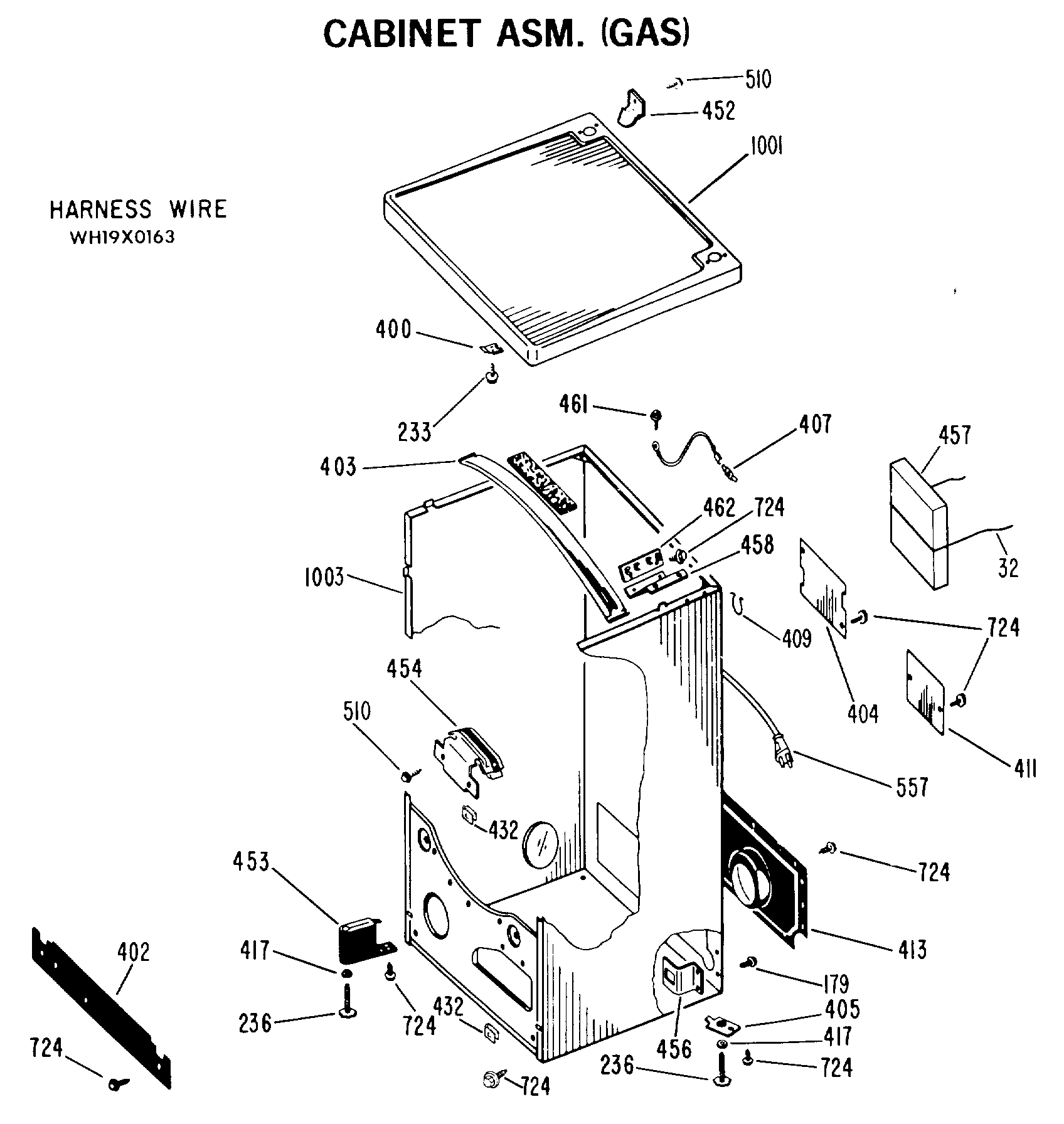

DDG5989VCL CABINET ASM. (GAS)

Products

Position	Product
32	GEN WH16X0370
233	GEN WZ04X0236
236	WE1M642 GE Washer Leveling Leg
400	GEN WE02X1134
402	GEN WE20X1347
403	GEN WE14X1137
404	GEN WE01X1425
405	GEN WE01X0468
411	KNOCKOUT CABINET WRAPPER
413	GEN WE14X0066
417	GEN WZ07X0038
432	GEN WE02X0282
452	BRACKET HINGE
453	GEN WE13X0080
454	GEN WE25X0060
456	WE1X617 GE Pipe Clamp
457	COUNTERWEIGHT DRYER
458	BRACKET-TERMINAL BOARD
461	WZ5X158D GE Screw Package of 12
462	BOARD ASM-TERMINAL
510	WE2X263D GE Screw Package 12 C92
557	CORDSET ASM-GROUNDING
724	SCREW 10-16 X 1/2" HEX
1001	GEN WE20X0557
1001	GEN WE20X0558
1001	GEN WE20X0556
1001	GEN WE20X0555
1001	GEN WE20X0530
1003	BASE & WRAPPER ASM CF
1003	BASE & WRAPPER ASM HA
1003	BASE & WRAPPER ASM FA
1003	BASE & WRAPPER ASM WH
1003	BASE & WRAPPER ASM AD
