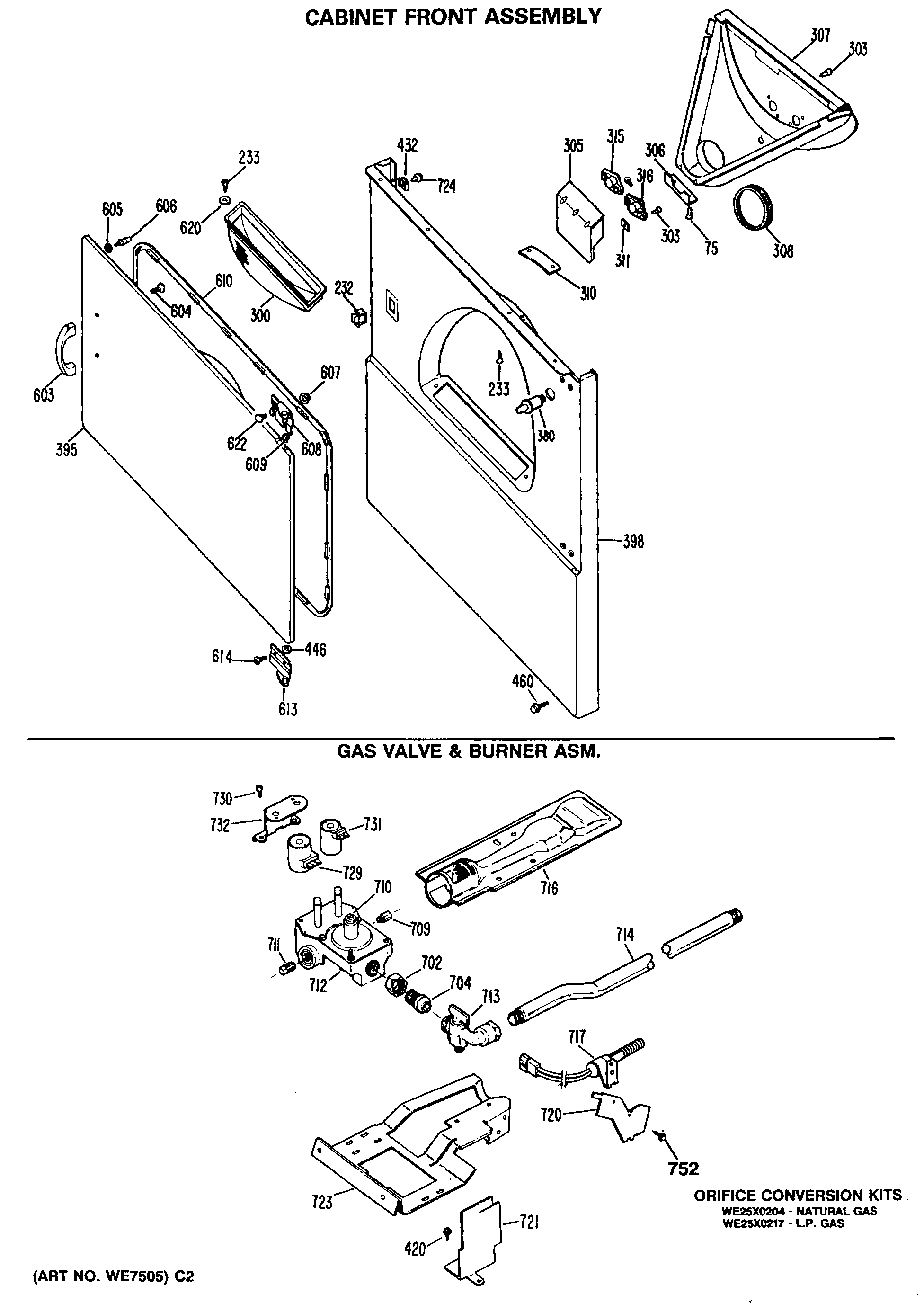

DDG7280RCLWW CABINET FRONT ASSEMBLY

Products

Position	Product
232	WE1M1011 GE Washer Dryer Door Latch
233	GEN WZ04X0236
300	FILTER ASM LINT
303	GEN WE02X0270
305	GEN WE01X0944
306	GEN WE01X0409
307	GEN WE14X0144
308	WE9X38 GE Dryer Felt Seal Assembly
310	GEN WE01X0446
311	GEN WE02X0192
380	GEN WE04X0197
395	DOOR ASM WH
398	CABINET FRONT ASM WH
420	GEN WH02X0893
432	GEN WL02X0071
446	GEN WE02X0279
460	GEN WZ04X0264
603	GEN WE01X1135
604	GEN WE02X0227
605	GEN WZ10X0016
606	GEN WE01X1042
607	NUT SHEET METAL K
608	GEN WE01X0345
609	GEN WE01X0404
610	GEN WE09X0028
613	GEN WE01X0344
614	GEN WZ04X0257
622	GEN WE02X0177
702	GEN WE02X0319
709	WE1X1148 GE Main Orifice
710	WE1X1076 GE Leak Limiter
711	GEN 1/8-27 NPT
712	WE14X215 GE Gas Valve
713	GEN WE01X1078
714	PIPE LUG ASM
716	WE14M104 GE Burner Assembly
717	WE04X25996 GE Washer Igniter
721	GEN WE13X0118
723	GEN WE13X0195
724	SCREW 10-16 X 1/2" HEX
724	SCREW 10-16X5/8 WH
729	WE4X692 GE Gas Valve Solenoid
730	WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731	WE4X693 GE Main Coil
732	GEN WE13X0169
752	WH2X930 GE Screw
