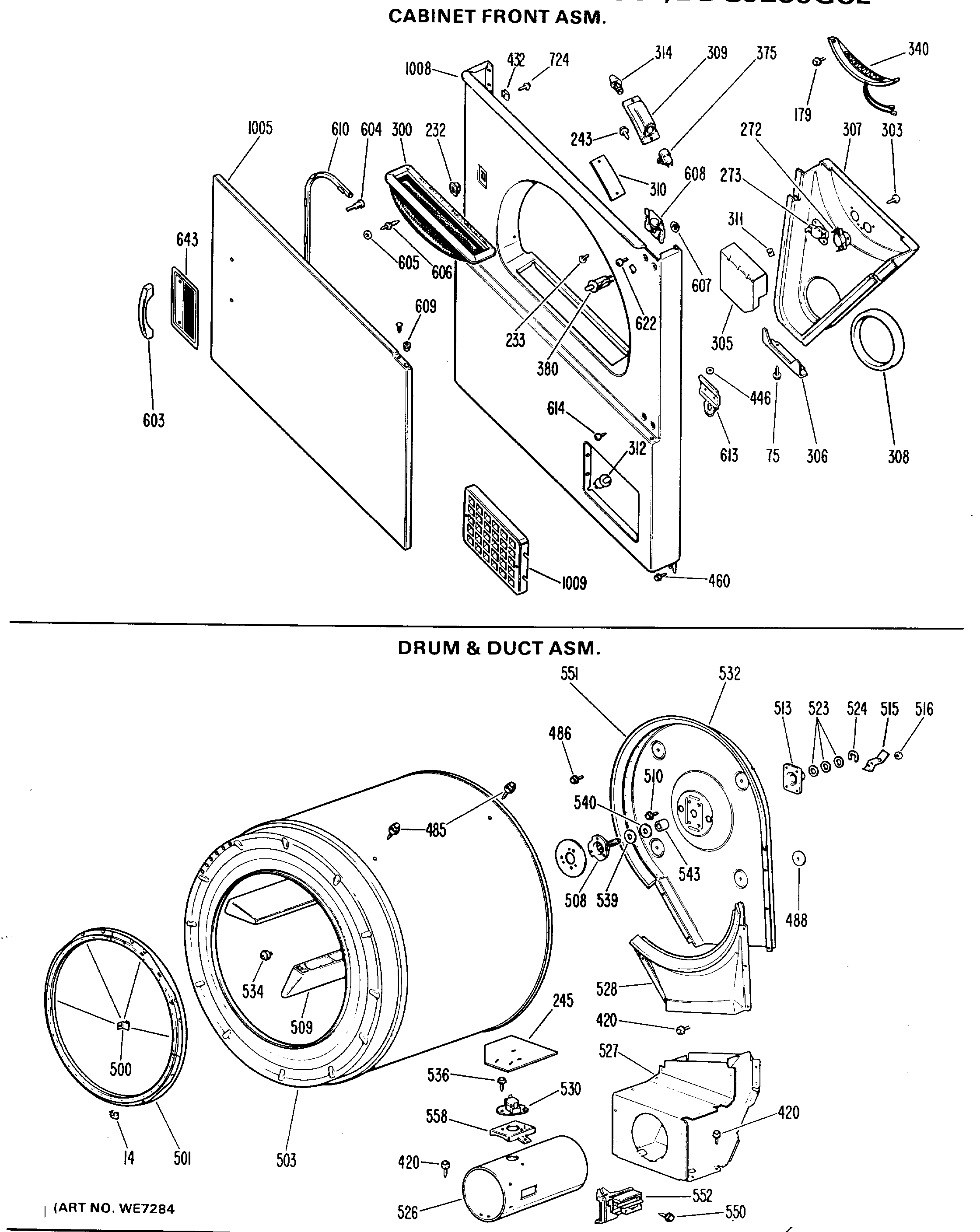

DDG8280GCL CABINET FRONT ASM

Products

Position	Product
14	GEN WE01X0762
75	WH2X930 GE Screw
232	WE1M1011 GE Washer Dryer Door Latch
233	GEN WZ04X0236
243	GEN WZ05X0155
245	GEN WE01X1055
272	GEN WE04X0607
273	GEN WE04X0608
300	FILTER ASM LINT
303	GEN WE02X0270
305	GEN WE01X0944
306	GEN WE01X0409
307	GEN WE14X0144
308	WE9X38 GE Dryer Felt Seal Assembly
309	GEN WE01X0427
311	GEN WE02X0192
312	GEN WE02X0191
314	LAMP K
380	GEN WE04X0197
420	GEN WH02X0893
432	GEN WL02X0071
446	GEN WE02X0279
460	GEN WZ04X0264
485	GEN WE02X0312
488	SPACER-DIFFUSER
500	GEN WE01X0299
501	GEN WE09X0030
503	GEN WE21X0059
509	BAFFLE-DRUM
510	WE2X263D GE Screw Package 12 C92
513	WE1X461 GE Bearing Retainer
515	WE1X1172 GE Strap Assembly
516	WR01X10212 GE Refrigerator 8-32 Nut
523	WASHER FLAT
524	RING RETAINING
526	CHAMBER-COMBUSTION
527	GEN WE14X0160
528	COVER-DUCT
530	THERMOSTAT L300-40
532	GEN WE14X0159
534	GEN WE02X0153
536	GEN WE02X0318
539	WE25M40 GE Dryer Rear Bearing Kit
540	WASHER FLAT
543	WE3X75 GE Dryer Rear Drum Bearing
550	GEN WE02X0281
551	GEN WE09X0044
552	WE4X448 GE Heat Detector Assembly
558	GEN WE13X0165
603	GEN WE01X1054
604	GEN WE02X0227
605	GEN WZ10X0016
606	GEN WE01X1042
607	NUT SHEET METAL K
608	GEN WE01X0345
609	GEN WE01X0404
610	GEN WE09X0028
613	GEN WE01X0344
614	GEN WZ04X0257
622	GEN WE02X0177
643	GEN WE19X0861
724	SCREW 10-16 X 1/2" HEX
1005	DOOR ASM HA
1005	DOOR ASM AD
1005	DOOR ASM WH
1008	CABINET FRONT ASM HA
1008	CABINET FRONT ASM WH
1008	CABINET FRONT ASM AD
1009	GEN WE10X0254
1009	GEN WE10X0256
1009	GEN WE10X0205
