DDG8280GDL CABINET ASM. – Aparts

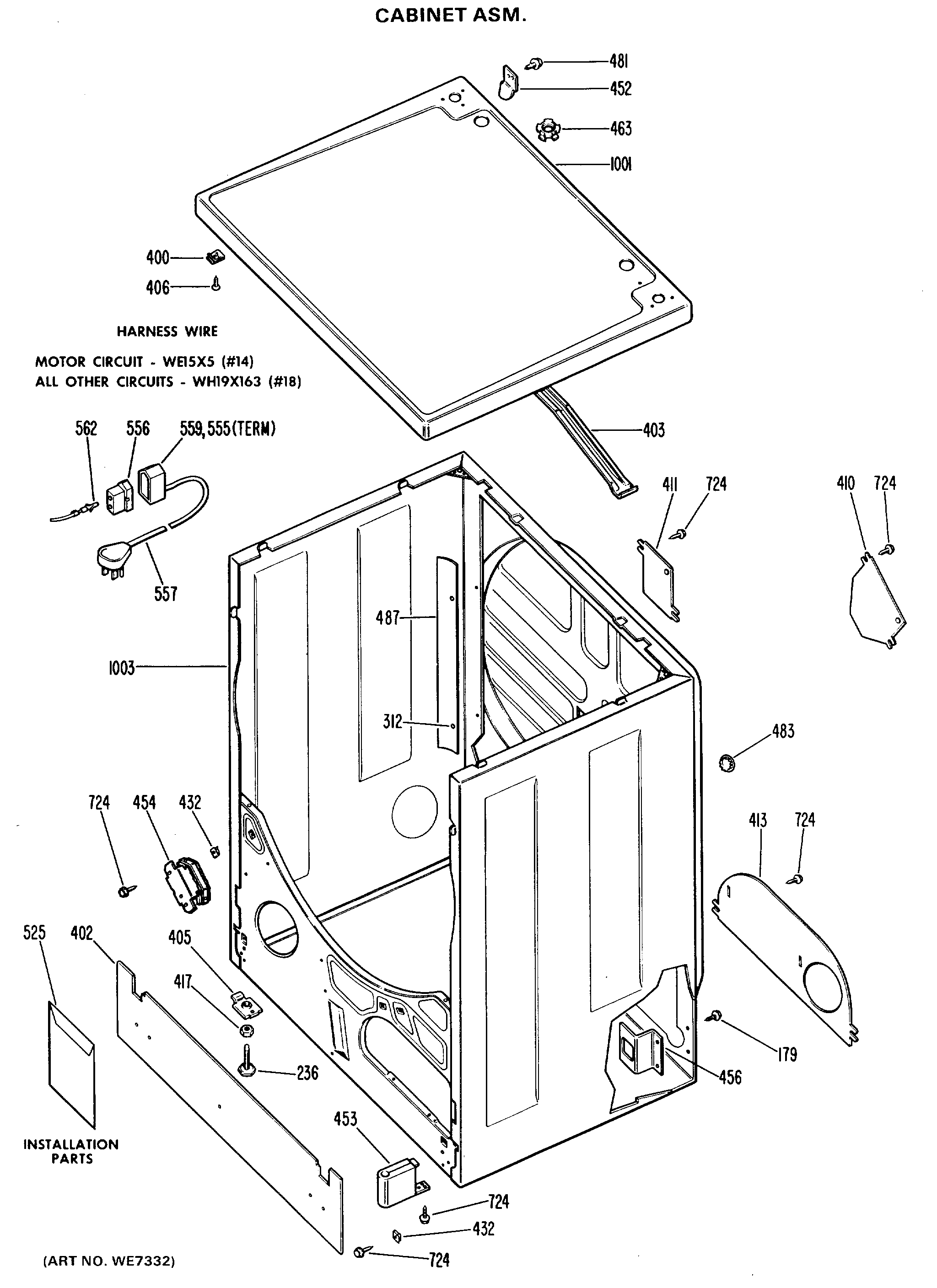

DDG8280GDL CABINET ASM.

Products

Position	Product
236	WE1M642 GE Washer Leveling Leg
312	GEN WE02X0191
400	GEN WE02X0134
402	GEN WE20X0347
403	GEN WE14X0037
405	GEN WE01X0468
406	GEN WZ04X0236
410	GEN WE01X1048
411	KNOCKOUT CABINET WRAPPER
413	GEN WE14X0167
417	GEN WZ07X0038
432	GEN WL02X0071
452	BRACKET HINGE
453	GEN WE13X0080
454	GEN WE25X0060
456	WE1X617 GE Pipe Clamp
463	SLEEVE SPILT
481	GEN WH02X0967
483	GEN WE01X1044
487	SHIELD-WIRE
525	GEN WE25X0185
555	GEN WB17X5053
556	GEN WH12X0497
557	GEN WE08X0031
559	GEN WH12X0538
562	GEN WB17X5054
724	SCREW 10-16 X 1/2" HEX
1001	WELD ASM COVER HA
1001	WELD ASM COVER WH
1001	WELD ASM COVER AD
1003	GEN WE20X0674
1003	GEN WE20X0673
1003	GEN WE20X0675
