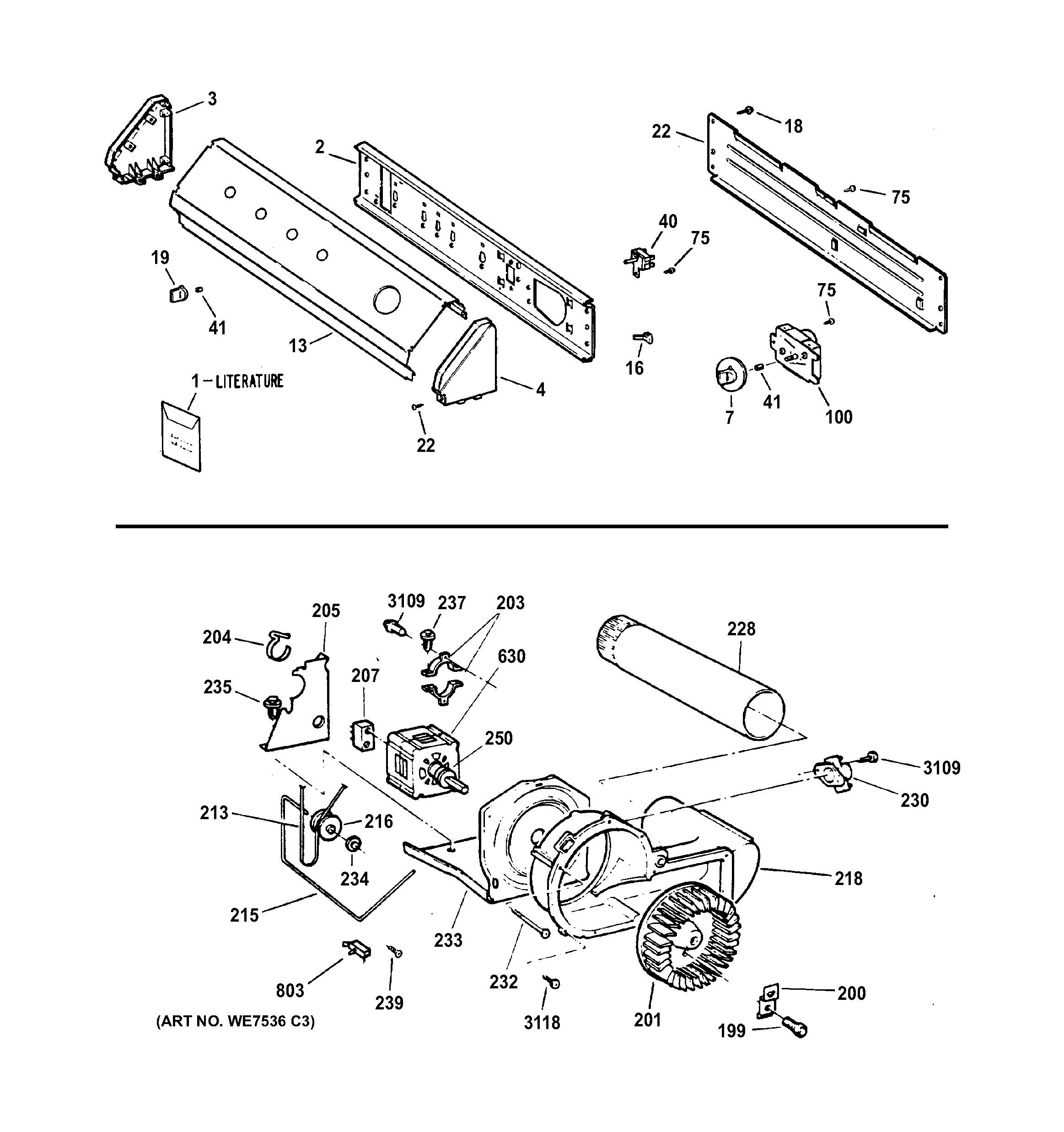

DDG8280SBMAA BACKSPLASH, BLOWER & DRIVE ASSEMBLY

DDG8280SBMAA BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Written by

in

DDG8280SBMAA BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Products

PositionProduct
1GEN 31-1734
1GEN 31-2559
2GEN WH46X0330
4GEN WH42X2282
7WE1X1263 GE Dryer Timer Control Knob
13GEN WE19M0863
16GEN WH02X1151
18GEN WH02X1152
19WH1X2721 GE Dryer Control Knob
41GEN WE1X980
75WH2X930 GE Screw
100WE4X795 GE Dryer Timer
199GEN WE2X280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
207WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
213WE12X10014 GE Washer Drive Belt
215WE03X20434 GE Washer Idler Arm
216WE12X81 GE Dryer Idler Pulley
218GEN WE14M0078
228WE14X20421 GE Exhaust Duct
230GEN WE04M0156
232WE2M202 GE Screw
233GEN WE13M0025
233GEN WE13M65
234GEN WE2M96?
235WE2M307 GE Screw 10-16 X 1/2 AB
237WE2M200 GE Ground Screw
239GEN WE02M0167
803WD21X10261 GE Dishwasher Interlock Switch
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
3118GEN WH02M0342
