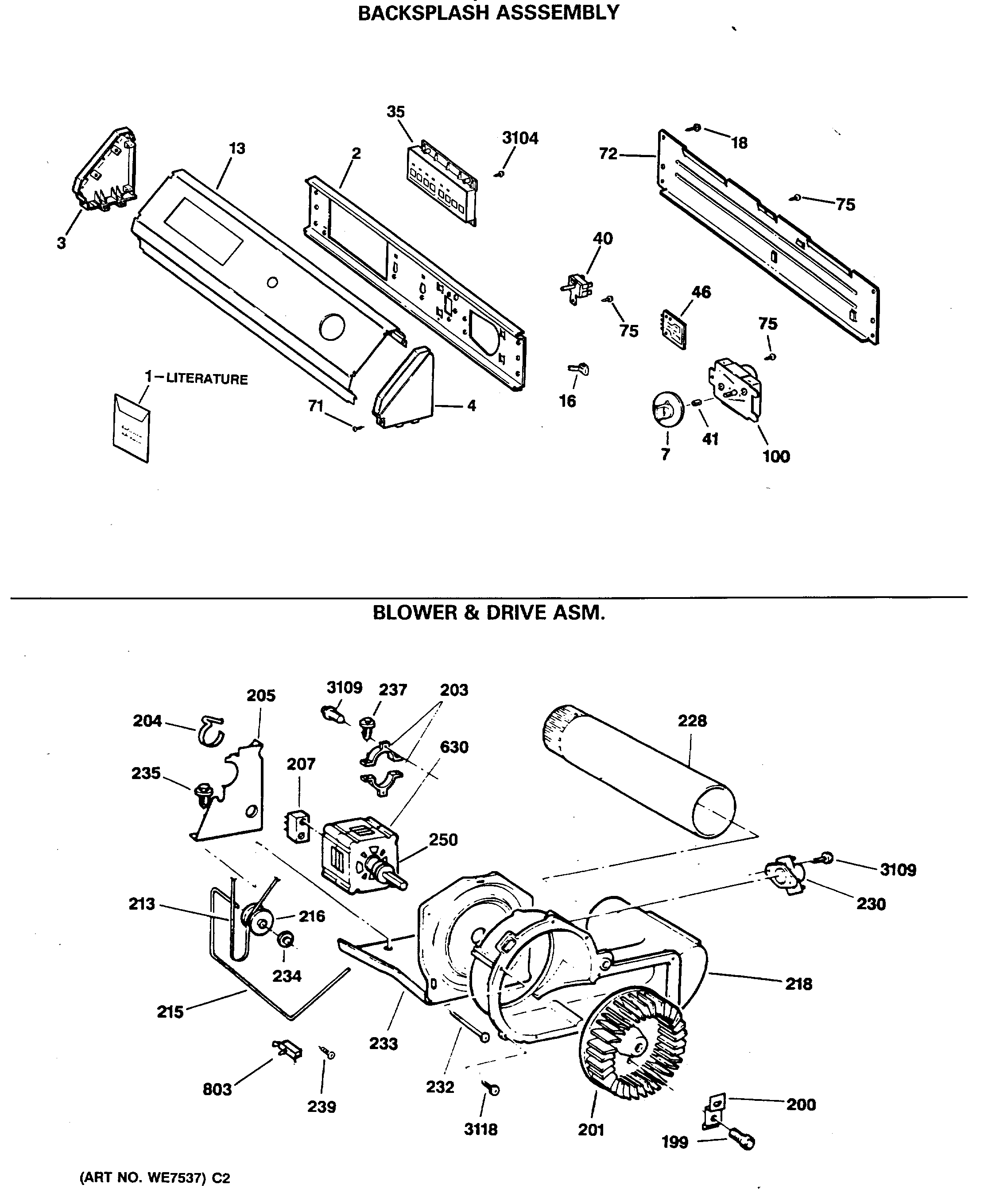

DDG8585SAMWW BACKSPLASH ASSEMBLY

DDG8585SAMWW BACKSPLASH ASSEMBLY

Written by

in

DDG8585SAMWW BACKSPLASH ASSEMBLY

Products

PositionProduct
1GEN 31-1734
1GEN 31-2594
1GEN 49-9798
2GEN WH46X0312
3GEN WH42X2227
4GEN WH42X2228
7WE1X1263 GE Dryer Timer Control Knob
13SWITCH TRIM ASM
16GEN WH02X1151
18GEN WH02X1152
35GEN WE04M0169
40GEN WE01X0690
41GEN WE01X0980?
71GEN WH02X1155
72GEN WH46X0311
75WH2X930 GE Screw
100WE4X791 GE Timer
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
207WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
213WE12X10014 GE Washer Drive Belt
215WE03X20434 GE Washer Idler Arm
216WE12X81 GE Dryer Idler Pulley
218GEN WE14M0055
228WE14X20421 GE Exhaust Duct
230GEN WE04M0156
232WE2M202 GE Screw
233GEN WE13M0024
234GEN WE02M0096
235GEN WE02M0155
237WE2M200 GE Ground Screw
239GEN WE02M0167
540GEN WE14M0068
541GEN WE14M0069
803WD21X10261 GE Dishwasher Interlock Switch
907GEN WD09X0249
3104WE1M280 GE Screw
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
3118GEN WH02M0342
