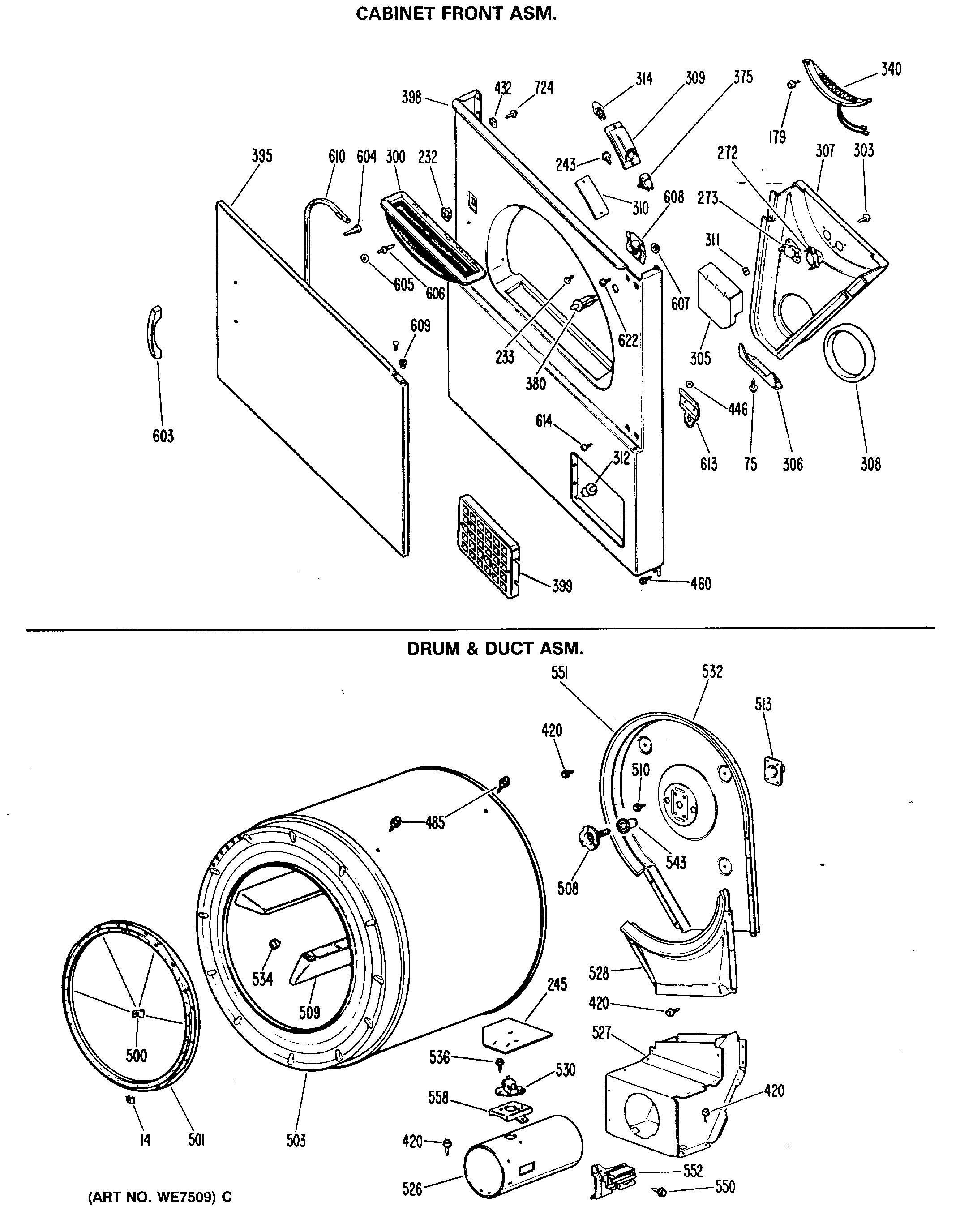

DDG8586MBL CABINET FRONT ASM.

Products

Position	Product
14	GEN WE01X0762
75	WH2X930 GE Screw
232	WE1M1011 GE Washer Dryer Door Latch
233	GEN WZ04X0236
243	GEN WZ05X0155
245	GEN WE01X1055
272	GEN WE04X0607
273	GEN WE04X0608
300	FILTER ASM LINT
303	GEN WE02X0270
305	GEN WE01X0944
306	GEN WE01X0409
307	GEN WE14X0144
308	WE9X38 GE Dryer Felt Seal Assembly
309	GEN WE01X0427
311	GEN WE02X0192
312	GEN WE02X0191
314	WE05X20431 GE Washer Dryer 120V 10W Light Bulb Lamp
375	GEN WE04X0719
380	GEN WE04X0197
395	DOOR ASM AD
395	DOOR ASM HA
395	DOOR ASM WH
398	CABINET FRONT ASM WH
398	CABINET FRONT ASM AD
398	CABINET FRONT ASM HA
399	GEN WE10X0254
399	GEN WE10X0256
399	GEN WE10X0205
420	GEN WH02X0893
432	GEN WL02X0071
446	GEN WE02X0279
460	GEN WZ04X0264
485	GEN WE02X0312
500	GEN WE01X0299
501	GEN WE09X0030
503	GEN WE21X0059
508	WE25M40 GE Dryer Rear Bearing Kit
509	BAFFLE-DRUM
510	WE2X263D GE Screw Package 12 C92
513	WE1X461 GE Bearing Retainer
526	CHAMBER-COMBUSTION
527	GEN WE14X0160
528	COVER-DUCT
530	THERMOSTAT L300-40
532	GEN WE14X0179
534	GEN WE02X0153
536	GEN WE02X0318
543	WE3X75 GE Dryer Rear Drum Bearing
550	GEN WE02X0281
551	GEN WE09X0044
552	WE4X448 GE Heat Detector Assembly
558	GEN WE13X0165
603	GEN WE01X1054
604	GEN WE02X0227
605	GEN WZ10X0016
606	GEN WE01X1042
607	NUT SHEET METAL K
608	GEN WE01X0345
609	GEN WE01X0404
610	GEN WE09X0028
613	GEN WE01X0344
614	GEN WZ04X0257
622	GEN WE02X0177
724	SCREW 10-16 X 1/2" HEX
