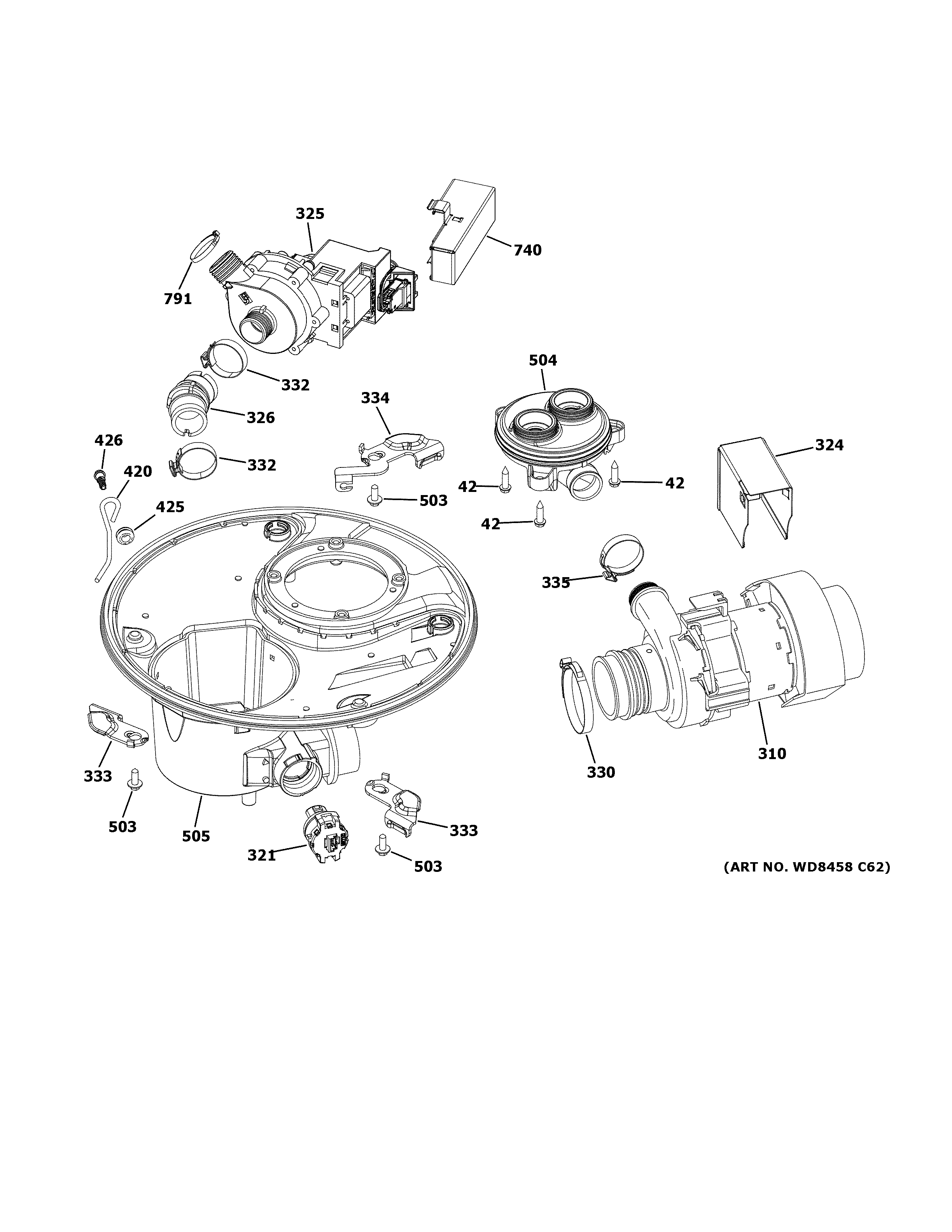

DDT575SGF0BB SUMP & MOTOR MECHANISM

DDT575SGF0BB SUMP & MOTOR MECHANISM

Written by

in

DDT575SGF0BB SUMP & MOTOR MECHANISM

Products

PositionProduct
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
321TURBIDITY SENSOR ASSY
324WD01X10580 GE Dishwasher Wash Pump Shield
325WD49X23782 GE Dishwasher P2B Wash Pump Kit
326WD24X10060 GE Dishwasher Drain Hose Elbow
330WD01X20302 GE Clamp
333WD01X10632 GE Dishwasher Latch Cam
334WD01X10575 GE Dishwasher Latch Cam
335WD35X10382 GE Dishwasher Piranha Clamps Kit
420WD01X25218 GE Dishwasher Drain Pump Hanger
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X22781 GE Dishwasher Screw 10-18 x 5/8
503WB01T10103 GE Oven Screw 10-16 AB HXW .532
504WD35X10386 GE Dishwasher Diverter Assembly Kit
505WD18X10055 GE Dishwasher Sump Manifold
740WD01X10584 GE Dishwasher Drain Pump Shield
791WD01X24246 GE Dishwasher Clamp
