DDT595SBL2TS ESCUTCHEON & DOOR ASSEMBLY

DDT595SBL2TS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

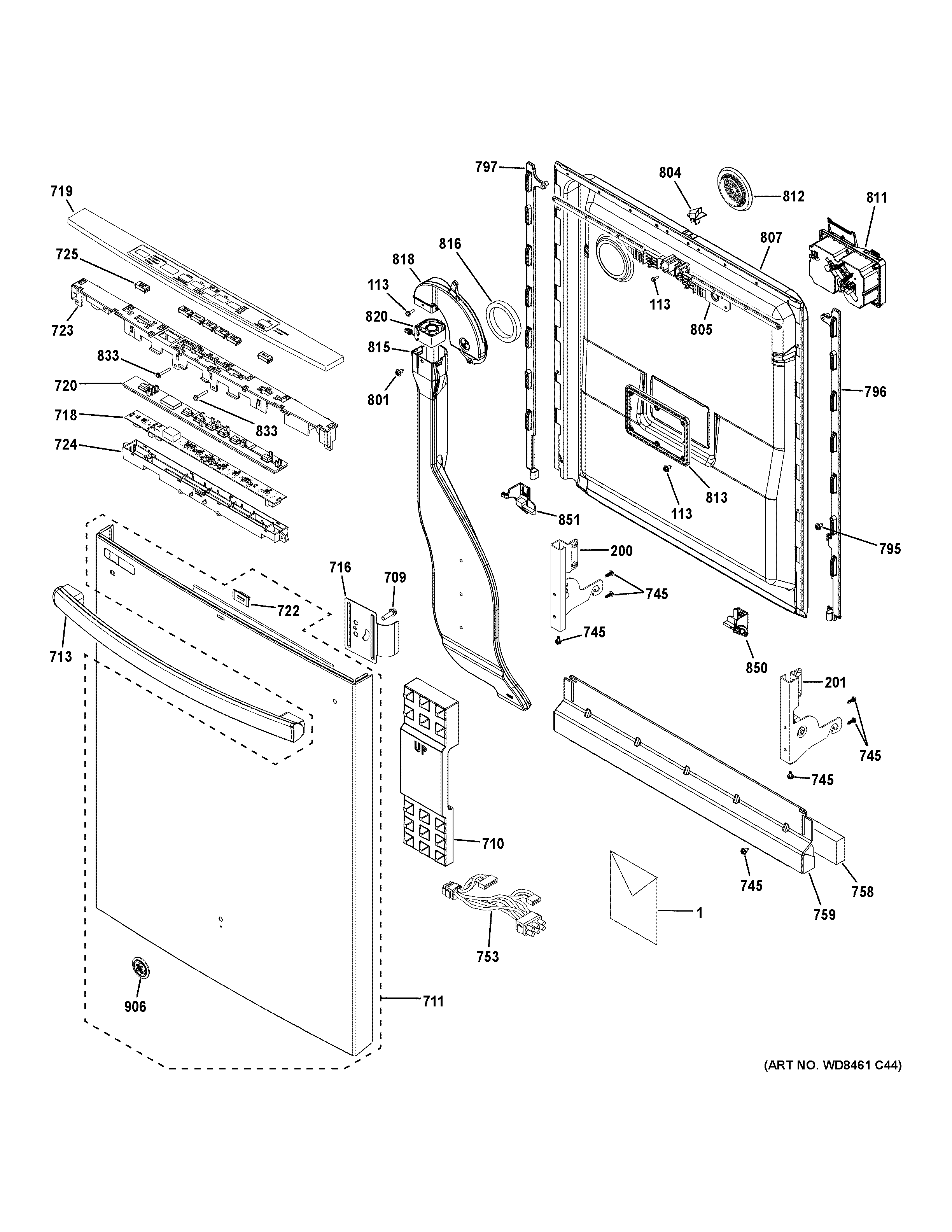

DDT595SBL2TS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1INSERT MINI MANUAL
1PM MINI-MANUAL
1PM OWNERS MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
709WD01X20934 GE Dishwasher Screw 1/4-28 FL IHXW 15/16
710WD01X10585 GE Dishwasher Door Foam Block
711BLACK STAINLESS OUTER DOOR SER
713WD09X24121 GE Dishwasher Door Handle Assembly
716WD01X20135 GE Dishwasher Handle Bracket
718CONFIGURED UI BOARD
719WD34X23757 GE Dishwasher Console Bezel and Cover Assembly
720WD12X20139 GE Dishwasher Silicone Light Pipe
722WD09X20066 GE Dishwasher Lens and Adhesive Assembly
723WD12X10469 GE Dishwasher Control Cover
724WD12X10470 GE Dishwasher Bottom Housing
725WD09X22799 GE Dishwasher Button and Graphics
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X21664 GE Dishwasher Wire Harness
758WD27X21334 GE Insulation
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29644 GE Dishwasher Inner Door
811DETERGENT MODULE
812WD24X20586 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD12X23557 GE Dishwasher Transition Piece Assembly
820WD24X20256 GE Dishwasher Vent Fan Assembly
833WD02X20140 GE Dishwasher Screw 10-16 PL PNT 2.25"
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
906WR04X28513 GE Refrigerator Badge Black Stainless
