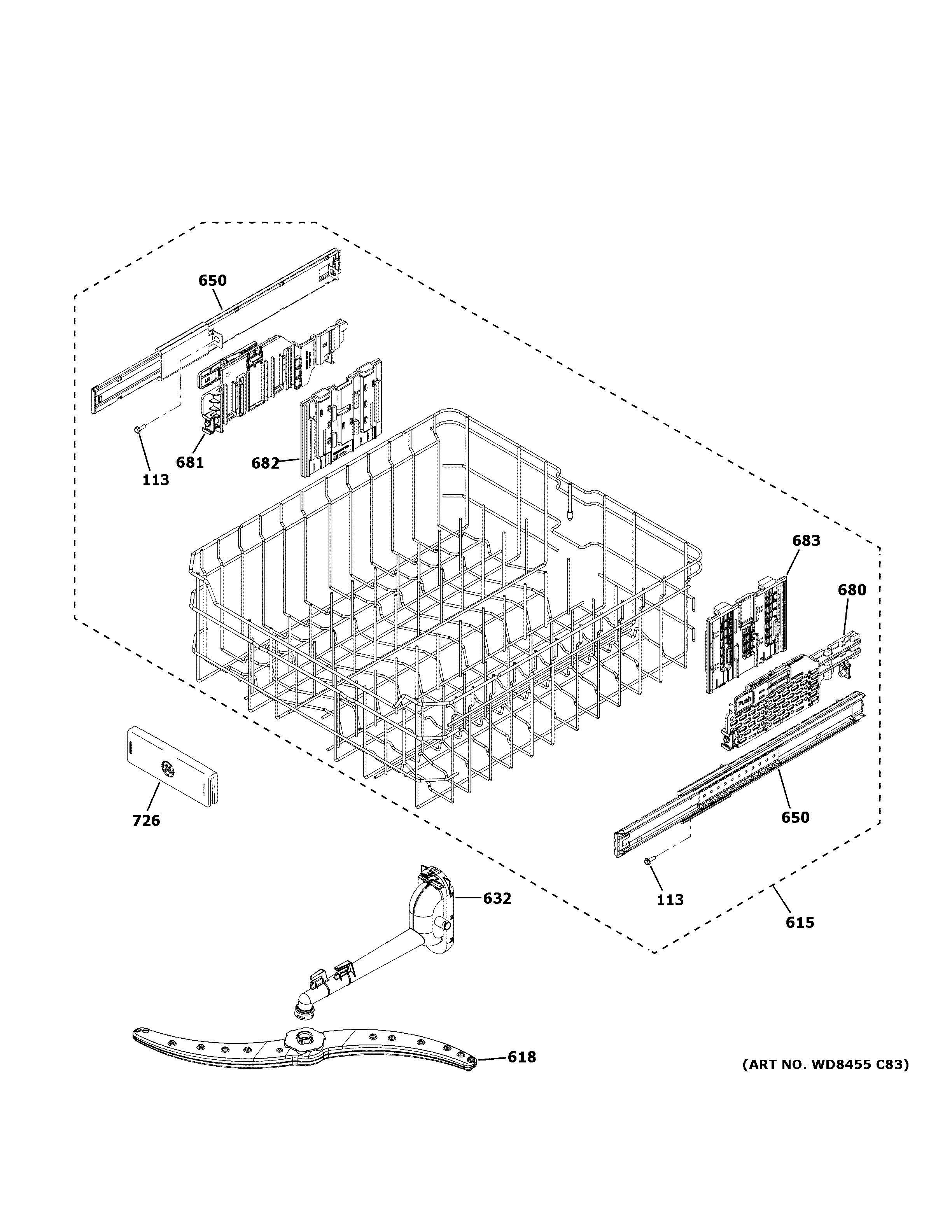

DDT700SBN5TS UPPER RACK ASSEMBLY

DDT700SBN5TS UPPER RACK ASSEMBLY

Written by

in

DDT700SBN5TS UPPER RACK ASSEMBLY

Products

PositionProduct
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
615WD28X30222 GE Dishwasher Upper Rack Assembly
618WD22X33498 GE Dishwasher Mid Spray Arm
632WD22X10094 GE Dishwasher Conduit Middle Assembly
650WD30X20110 GE Dishwasher Upper Rack Inner Rail Assembly
680WD12X20108 GE Dishwasher Bracket Assembly Upper Rack
681WD12X20109 GE Dishwasher Bracket Assembly Upper Rack
682WD12X20112 GE Dishwasher Fixed Bracket
683WD12X20113 GE Dishwasher Fixed Bracket
726WD09X25644 GE Dishwasher Rack Handle
