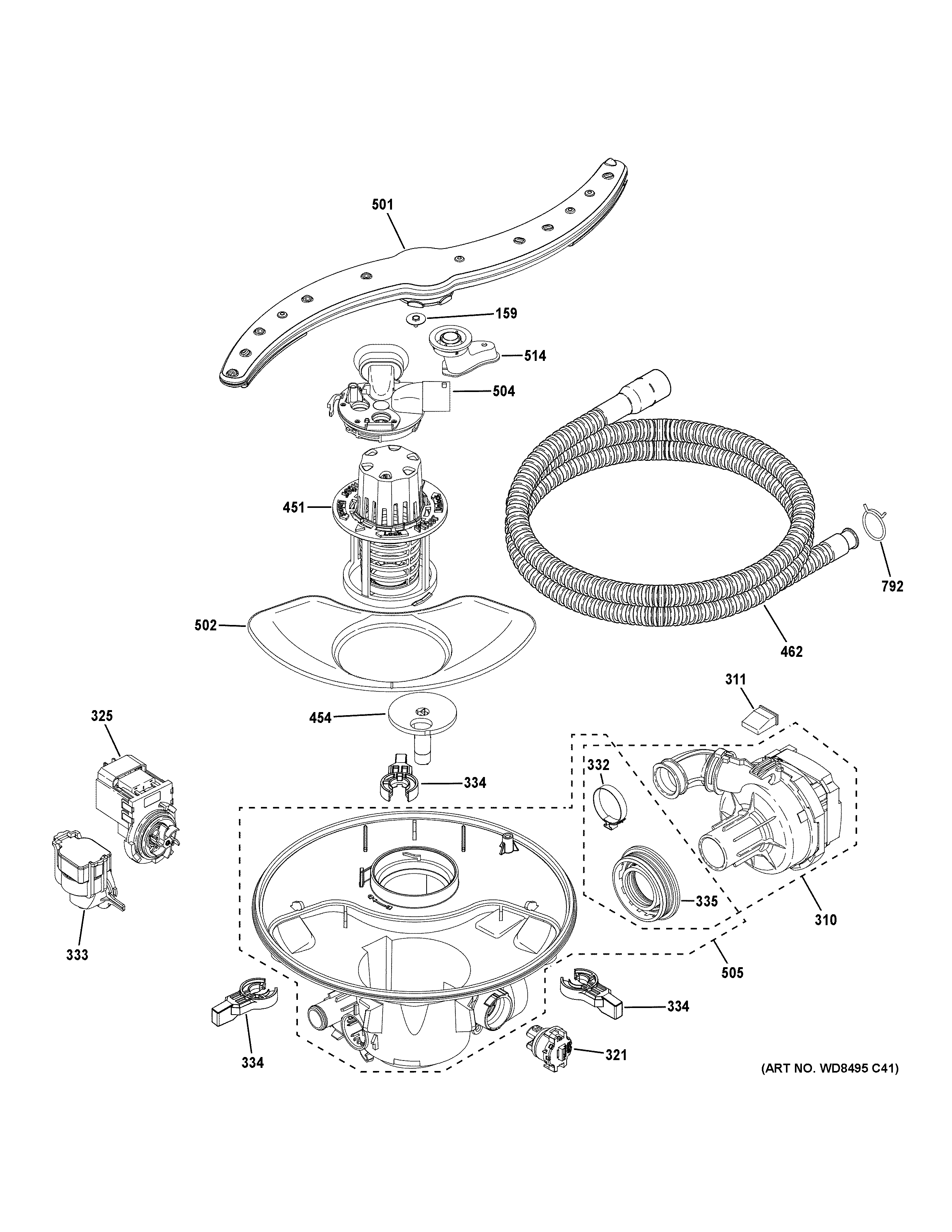

DDT700SMN8ES MOTOR, SUMP & FILTER ASSEMBLY

DDT700SMN8ES MOTOR, SUMP & FILTER ASSEMBLY

Written by

in

DDT700SMN8ES MOTOR, SUMP & FILTER ASSEMBLY

Products

PositionProduct
159WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
310WD19X32518 GE Wash Pump Kit
311WD02X28359 GE Dishwasher Pump Isolator Hanger
321WD21X29818 GE Dishwasher Turbidity Sensor
325DRAIN PUMP ASM
332HOSE CLAMP
333PRESSURE SENSOR ASM
334WD01X28338 GE Dishwasher Sump Latch
335WD08X27458 GE Seal
451WD12X25995 GE Fine Filter and Basket Assembly
454FOUR PORT DIVERTER & PLUG
462DRAIN TUBE ASM
501WD22X33499 GE Dishwasher Lower Spray Arm – Heat Shield No Longer Required
502WD22X25465 GE Dishwasher Plastic Course Filter
505WD19X28199 GE Dishwasher Sump Overmold and Gasket
514WD12X25864 GE Dishwasher S Arm Adapter
792WD01X10104 GE Dishwasher Hose Clamp
