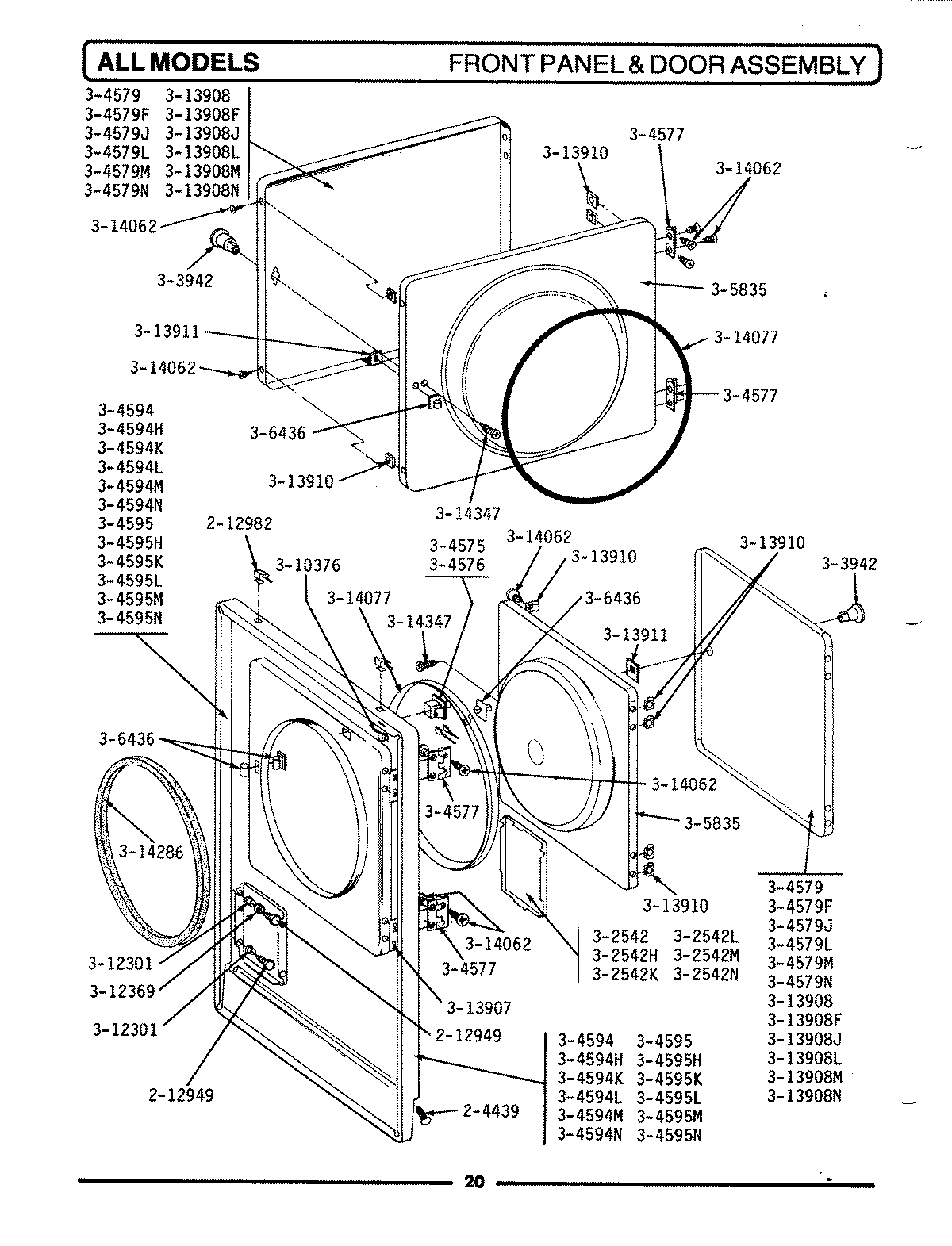

DE106 02 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
NI	MAY Y313927
NI	LABEL, LINT SCREEN INSTR.
NI	MAY 314119
1	SCREW & FSTNER ASSY (FT. PNL)
3	MAY 212982
10	MAY 303942
12	W10169313 Whirlpool Door Switch Kit
13	MAY Y304577
14	MAY Y304579
15	MAY 304579F
16	MAY 304579J
17	MAY 304579L
18	MAY 304579M
19	MAY 304579N
26	MAY 304595
27	MAY 304595H
28	MAY 304595K
29	MAY 304595L
30	MAY 304594M
31	MAY 304594N
32	MAY 305835
33	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
34	MAY Y310376
38	MAY Y313907
39	MAY Y313908
40	MAY 313908F
41	MAY 313908J
42	MAY 313908L
43	MAY 313908M
44	MAY 313908N
45	CLIP, DOOR LINER
46	MAY Y313911
49	MAY 314077
52	WP400021-1 Whirlpool Screw
