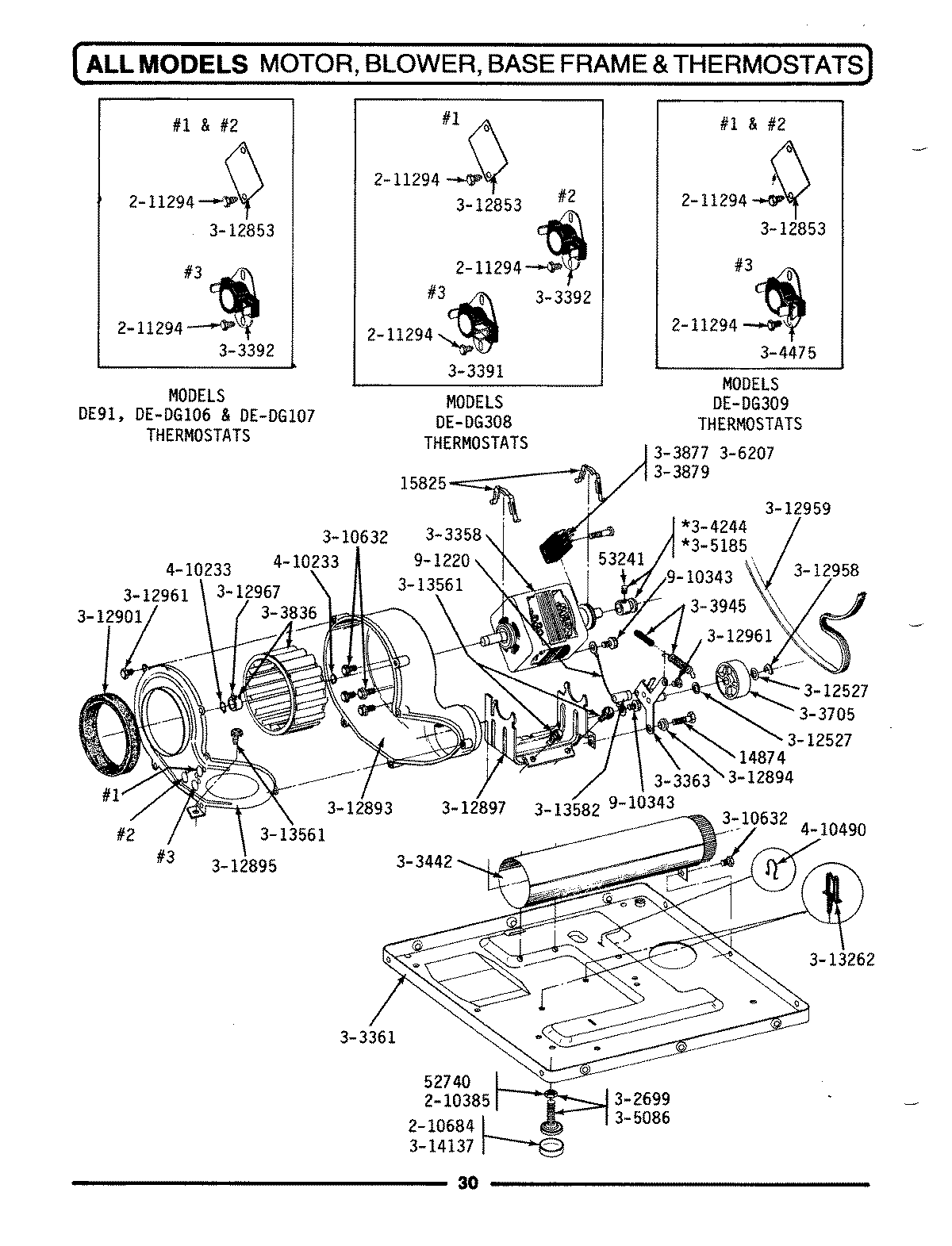

DE106 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
1	WPY014874 Whirlpool Screw
2	WPY015825 Whirlpool Motor Clip
3	WP62739 Whirlpool Nut
4	MAY Y053241
5	WP210385 Whirlpool Lock Nut
6	WP210684 Whirlpool Dishwasher Leveling Leg Pad
7	WP90767 Whirlpool Screw
8	LEG, ADJUSTABLE (W/NUT)—S
9	W10410999 Whirlpool Dryer Drive Motor
10	MAY Y303361
11	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
13	WP694674 Whirlpool Cycling Thermostat
15	MAY Y303442
16	WP6-3037050 Whirlpool Idler Pulley
17	Y303836 Whirlpool Dryer Blower Wheel
18	MAY Y303877
19	MAY Y303879
20	MAY Y303945
21	WP6-3042440 Whirlpool Motor Pulley
24	W10176519 Whirlpool Leveling Feet
25	MAY Y305185
26	MAY 306207
27	MAY Y310632
28	MAY Y312527
29	MAY Y312853
30	MAY Y312893
31	SLEEVE, IDLER ARM —-S
32	MAY Y312895
33	MAY 312897
34	WPY312901 Whirlpool Blow Seal
35	WP354987 Whirlpool C-Clip
36	WPY312959 Whirlpool Dryer Drum Belt
37	WPW10116751 Whirlpool Screw
38	WP312967 Whirlpool Clamp
39	MAY Y313262
40	MAY Y313561
41	WPW10116756 Whirlpool Spacer
42	WPY314137 Whirlpool Rubber Foot
43	WP9703438 Whirlpool Snap Retaining Ring
44	MAY 410490
45	MAY 901220
46	MAY 910343
