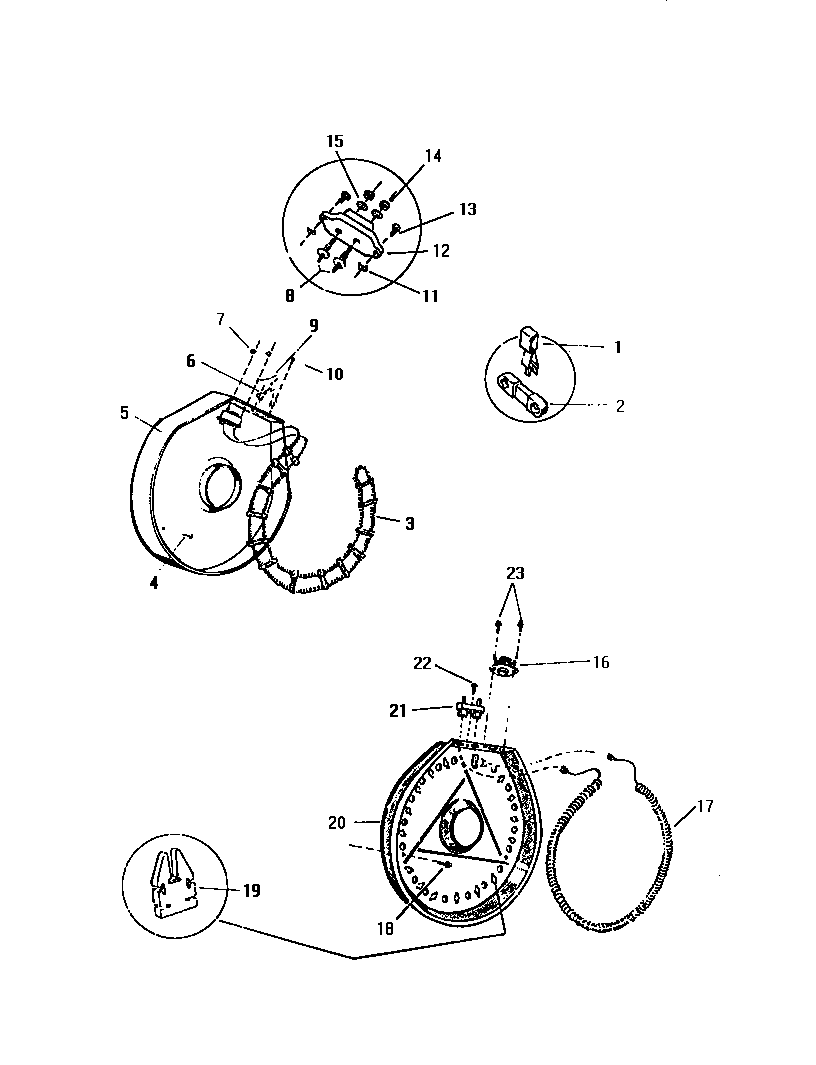

DE150EDD4 03 – HEATING ELEMENT, HOUSING – Aparts

DE150EDD4 03 – HEATING ELEMENT, HOUSING

Products

Position	Product
1	SUPPORT CLIP
2	BUSHING 14 REQ.
3	COIL -4 MODELS
4	WCI Q505564
5	HEATER HSG
6	THERMOSTAT HI-LIMIT -4 MODELS
8	WCI Q64572
9	WIRE CONN. -2-4 MODELS
10	SCREW (4)
11	WCI Q500621
12	TERMINAL BLOCK -4 MODELS
13	WCI Q402705
14	WCI Q401002
15	WCI Q440082
