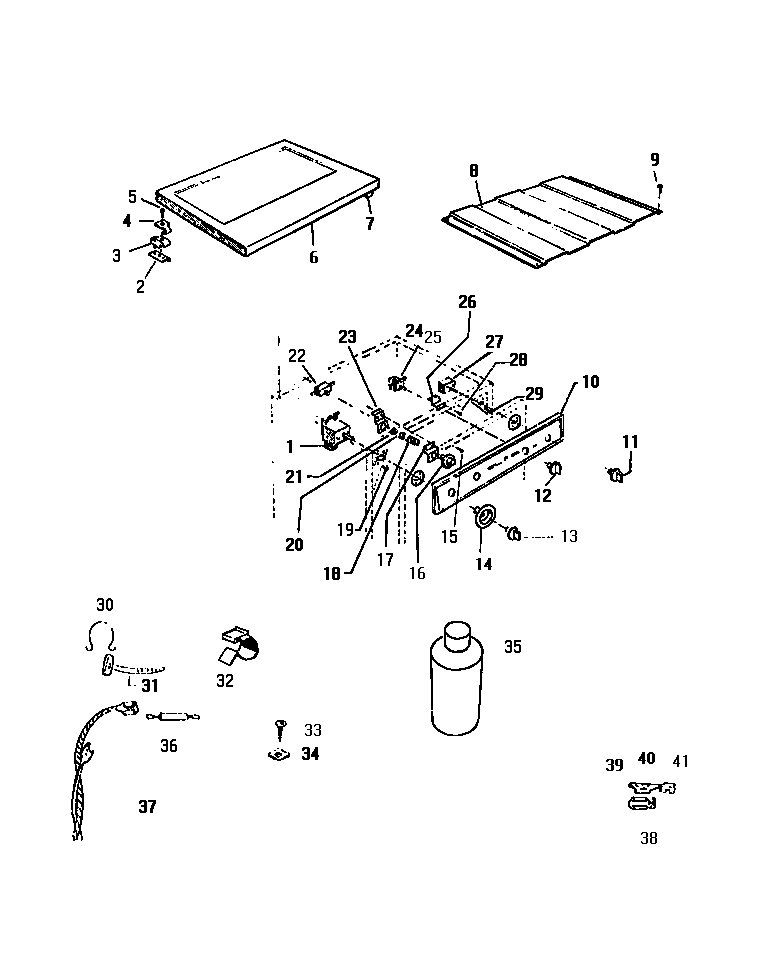

DE150EDD5 05 – CONSOLE, CONTROLS, TOP PANEL, MISCE

Products

Position	Product
*22929	WCI Q606741
*22928	SCREW (4)
*22920	WCI 086065
*22927	WCI Q428901
*22930	WCI Q278114
*22925	SEALING MASTER
*22921	WCI Q63137
*22926	WCI 1443982
1	WCI Q630101
2	WCI Q69552
3	WCI Q69551
4	WCI Q81666
5	WCI Q415403
6	WCI Q601587
7	SPRING CATCH
8	WCI Q119926
10	WCI Q630232
13	KNOB TIMER
14	WCI Q617641
15	WCI 435098
16	PUSH BUT.
17	WCI Q165150
18	WCI Q66793
19	SCREW (4)
20	WCI Q501450
21	WCI Q409004
22	START SWITCH
23	WCI Q165146
24	WCI Q152915
25	WCI Q435100
26	WCI Q630224
27	WCI Q618876
28	WCI Q435098
29	SCREW
30	WCI Q62196
31	WCI 1468242
32	WCI Q502207
33	WCI Q500565
34	WCI Q500411
35	TOUCH-UP PAINT, 1 OUNCE, ALMOND
36	WCI Q14905
37	WCI Q632043
38	RECEPTACLE, FLAG, 1/4“ BLADE TERMINAL
38A	WCI Q301296
39	RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL
39A	RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL (PKG. OF 12)
40A	RECEPTACLE, STRAIGHT, FOR 3/16“ BLADE TERM. (PKG. OF 12)
40	RECEPTACLE, STRAIGHT, 3/16“ BLADE TERMINAL
41A	RECEPTACLE, STRAIGHT, FOR 5/16“ BLADE TERM. (PKG. OF 12)
41	RECEPTACLE, STRAIGHT, 5/16“ BLADE TERMINAL
