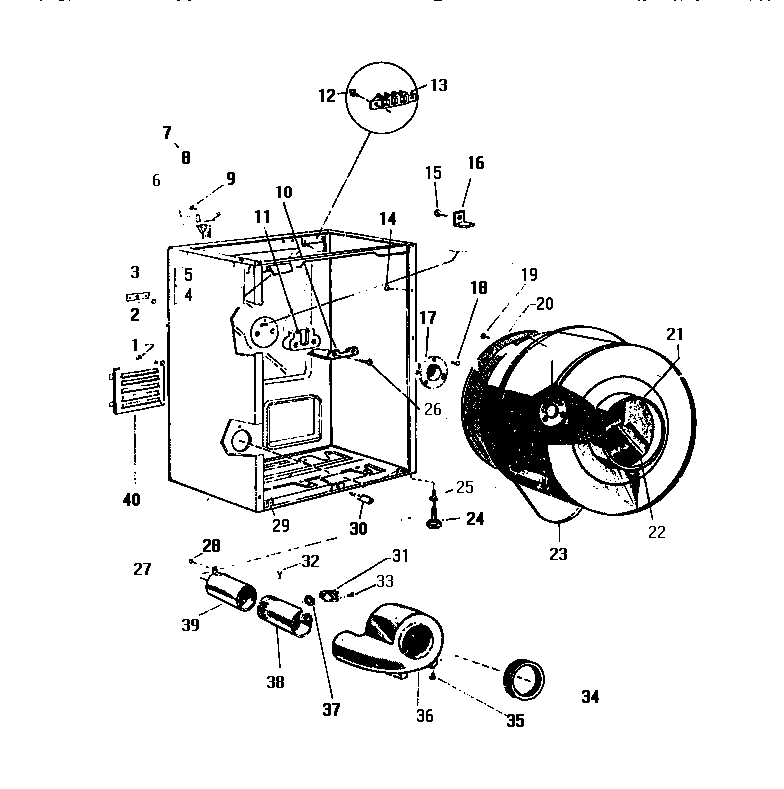

DE150JDD1 02 – CABINET & DRUM

Products

Position	Product
*01283	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
2	SPEED NUT STRIP
3	BALL
4	WCI Q505071
5	WCI Q623021
6	WCI Q133283
7	WCI Q435098
8	WCI Q167096
9	WCI Q403102
10	BRACKET
11	BEARING
12	WCI Q435152
13	WCI Q633751
15	WCI Q505564
16	BRACKET
17	SHAFT
18	SCREW
19	SCREW (3)
20	WCI Q165773
21	SPINNER, BASKET
22	WCI Q315892
22A	WCI Q615891
22B	WCI Q501592
23	WCI Q63807
24	WCI Q504971
25	GROMMET ( FOOT BOLT )
26	SCREW
27	BODY, ALMOND
29	WCI Q505011
30	TOGGLE KIT
31	WCI Q634401
32	SCREW (4)
33	SCREW
34	WCI Q19462
35	SCREW (4)
36	WCI Q171281
37	WCI Q606131
38	DUCT, THERM.
39	WCI Q182901
40	WCI Q94811
