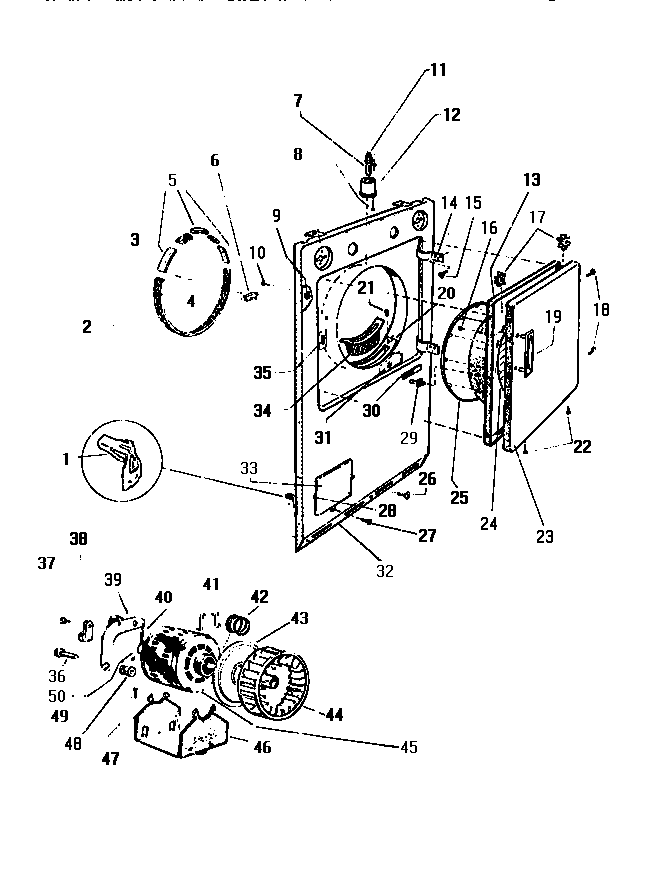

DE150JDV1 03 – FRONT PANEL & DOOR

Products

Position	Product
1	CLIP (4)
2	WCI Q142888
3	WCI Q15141
4	WCI Q15142
5	GUIDE KIT
6	WCI Q622422
7	DOUBLE CONTACT BAYONET BASE 15W, 115/125V, CLEAR (BULB T
8	SCREW (4)
9	WCI Q500255
10	WCI Q505564
11	WCI Q128481
12	WCI Q182671
13	PANEL INNER DOOR
14	WCI Q607301
16	WCI Q503952
17	WCI Q631591
19	WCI Q622791
20	FRAME LINT TRAP
21	WCI Q403103
22	WCI Q504773
23	PANEL OUTER DOOR
24	SHIELD
25	WCI Q167703
26	WCI Q500717
27	WCI Q405802
28	SUPPORT
29	WCI Q504552
30	WCI Q604443
31	WCI Q500265
32	WCI Q632689
33	ACCESS DOOR
34	WCI Q632621
35	WCI Q504551
36	WCI Q433401
37	WCI Q414002
38	CLAMP
39	IDLER PULLEY AND BRACKET
40	SPRING
41	WCI Q62206
42	WCI Q94715
43	WCI Q94948
44	WCI Q615901
45F	START SWITCH FOR Q616391 EMER.
45C	MOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
45B	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
45A	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
45D	START SWITCH FOR Q615921 WW
45E	START SWITCH FOR Q616401 GE
45	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
46	WCI Q94874
47	SCREW
48	WCI Q600179
49	SCREW
50	PULLEY (SEE NOTE 1)
