DE150KDW5 04 – CONSOLE AND CONTROL PARTS
Written by
in

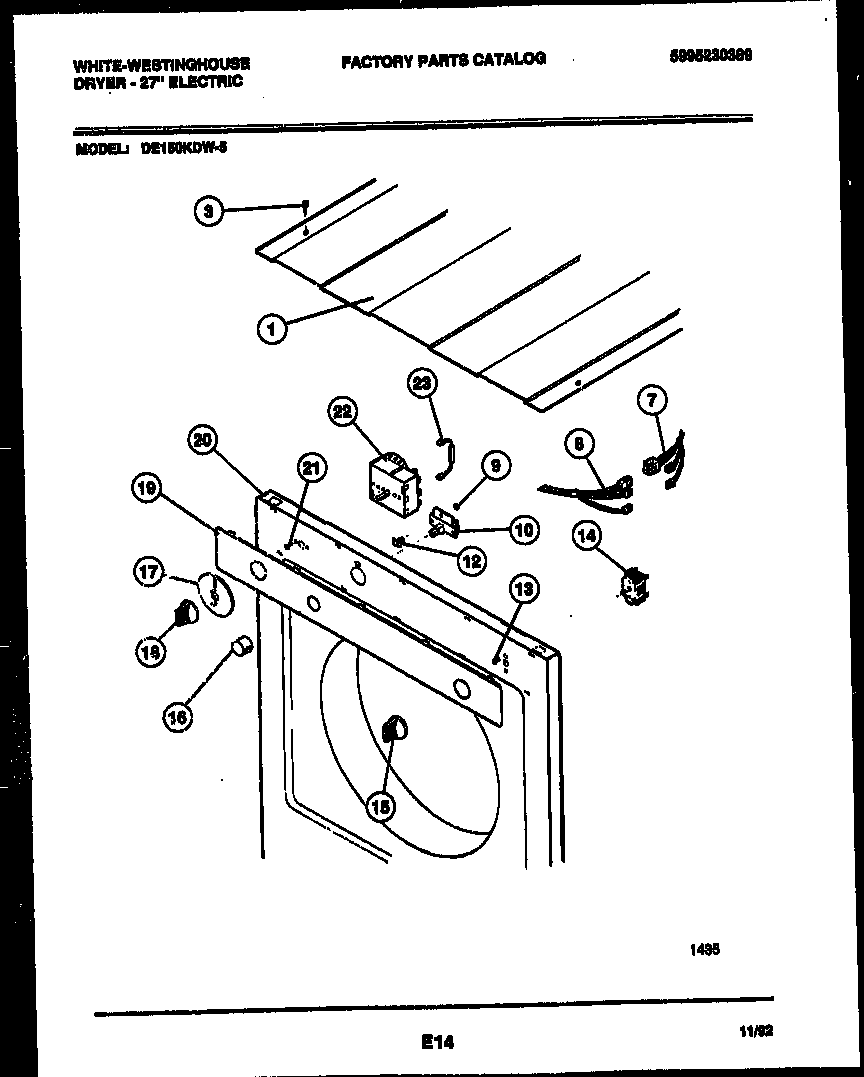

DE150KDW5 04 – CONSOLE AND CONTROL PARTS
Products
| Position | Product |
|---|---|
| *71312 | WCI 3203253 |
| *71312 | WCI 3281173 |
| *71311 | WCI 3281171 |
| *71311 | WCI 3281272 |
| *71312 | SCREW (2) |
| 1 | WCI 3206232 |
| 3 | SCREW (2) |
| 7 | WCI 131009200 |
| 7A | 5303303590 Frigidaire Dryer 4.0" Cable Tie |
| 8 | WCI 131012100 |
| 9 | WCI 3281089 |
| 10 | WCI 3203292 |
| 12 | WCI 3281092 |
| 13 | WCI 3281101 |
| 14 | WCI 3281100 |
| 15 | WCI 5300633724 |
| 16 | WCI 3201221 |
| 17 | WCI 08027433 |
| 18 | KNOB-TIMER |
| 19 | WCI 5300633782 |
| 20 | WCI 5303283903 |
| 21 | SCREW (2) |
| 22A | WCI 3281021 |
| 22B | FASTENER |
| 22 | WCI Q000634303 |
| 23 | RESISTOR |
