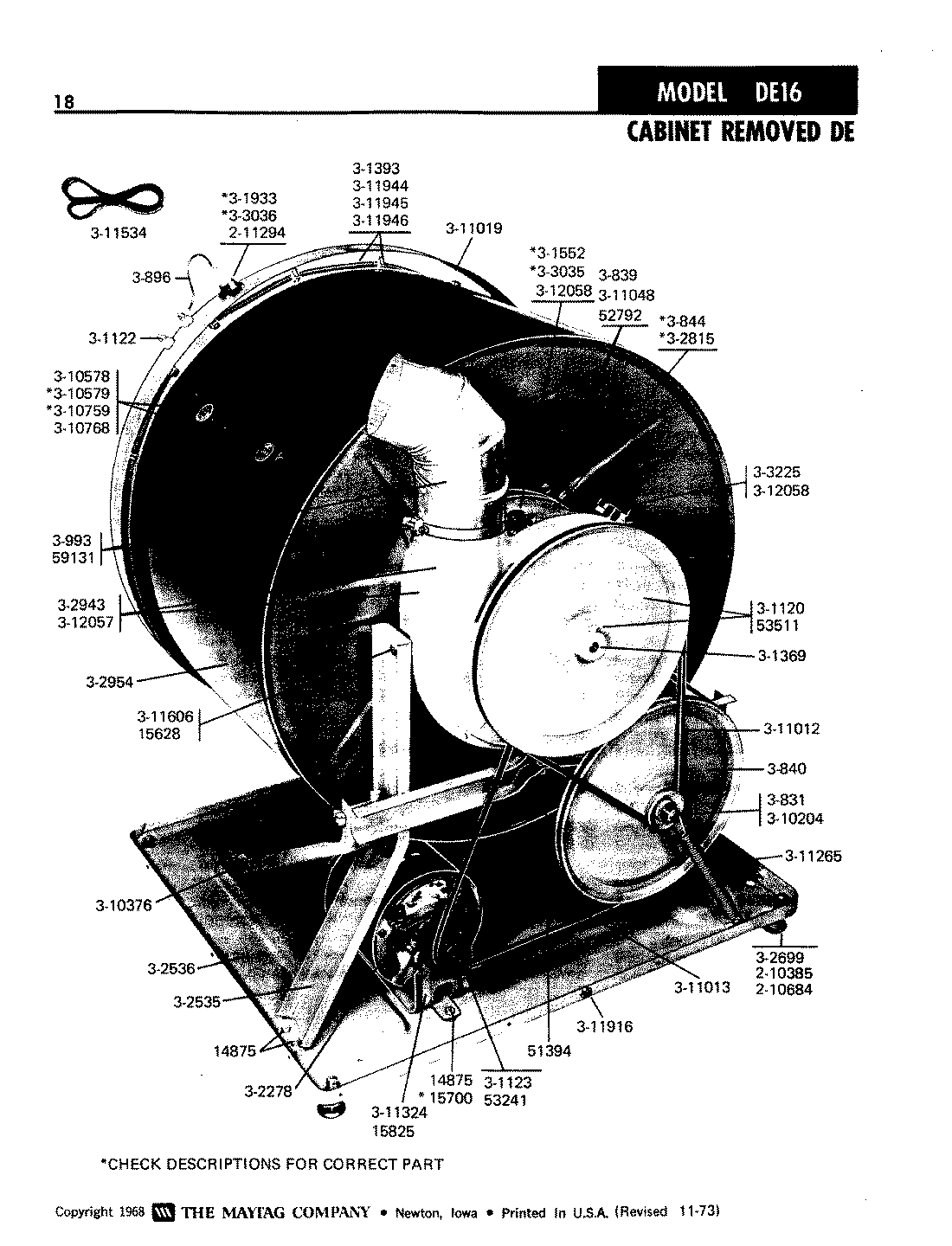

DE16CA 03 – CABINET REMOVED

Products

Position	Product
NI	WPY014874 Whirlpool Screw
NI	MAY 054865
1	MAY 300831
2	MAY 300839
3	MAY 300840
4	MAY Y300844
5	MAY Y300896
6	MAY 300993
7	MAY Y301120
8	Y304596 Whirlpool Terminal Insulator Assembly
9	MAY 301123
10	MAY 301369
11	MAY 301393
12	MAY 301552
13	MAY Y301933
14	MAY Y302278
15	SUPPORT
16	BASE
17	LEG, ADJUSTABLE (W/NUT)—S
18	MAY Y302815
19	MAY 302943
20	DRUM W/FELT – PORCELAIN
21	WP694674 Whirlpool Cycling Thermostat
22	MAY Y303036
23	PART NOT USED
24	MAY 310204
25	MAY 310262
26	MAY Y310376
27	MAY 310578
28	SCREW, No.10-24 X 11/16 INCH
29	MAY Y310759
30	MAY 310768
31	MAY 310933
32	MAY Y311012
33	MAY Y311013
34	DRUM COVER
35	MAY 311048
36	MAY 311265
37	MAY 311324
38	MAY 311534
39	MAY 311606
40	MAY Y311916
41	MAY 311944
42	MAY Y311945
43	MAY Y311946
44	MAY Y312057
45	MAY Y312058
46	WP210385 Whirlpool Lock Nut
47	WP210684 Whirlpool Dishwasher Leveling Leg Pad
48	WP90767 Whirlpool Screw
50	MAY 014875
51	MAY 015628–
52	MAY 015700
53	WPY015825 Whirlpool Motor Clip
54	MAY 051394
55	MAY 052792
56	MAY Y053241
57	MAY Y053511
59	MAY Y059131
