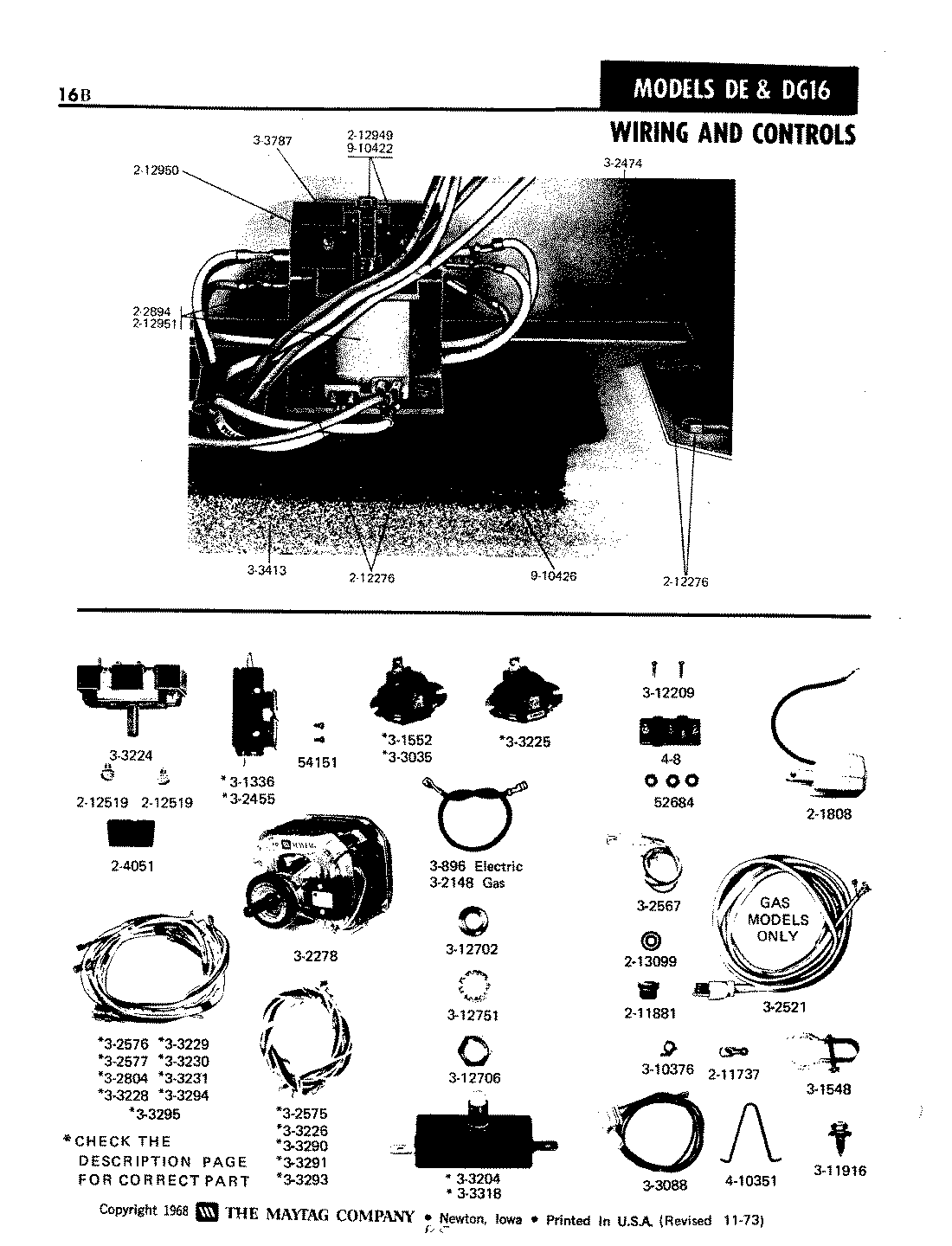

DE16CA 10 – WIRING & CONTROLS

Products

Position	Product
1	MAY Y300896
3	MAY 301548
4	MAY 301552
5	MAY 302148
6	MAY Y302278
7	MAY Y302455
8	PILOT LIGHT
9	MAY 302575
10	MAY 302576
11	WP694674 Whirlpool Cycling Thermostat
12	MAY 303088
13	MAY Y303204
14	MAY Y303224
15	PART NOT USED
16	MAY 303226
17	MAY 303227
18	MAIN WIRE HARNESS
21	DOOR SWITCH HARNESS
24	WIRE HARNESS, MAIN
26	MAY Y310376
27	MAY Y311916
28	SCREW, No.10-24 X 3/4 INCH—–O
29	MAY Y312702
30	MAY Y312706
31	WPW10139799 Whirlpool Washer
32	MAY Y201808
33	MAY 204051
34	MAY 211737
35	MAY 212519
36	MAY 213099
37	PART NOT USED
38	MAY 410351
39	MAY Y052684
40	MAY 054151
